Section 1521 (Supplemental Restraint System)
>>
Collision Diagnosis
>>
For Frontal Collision
>>
SRS Inspection (For Frontal Collision)
SRS Inspection (For Frontal Collision)
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

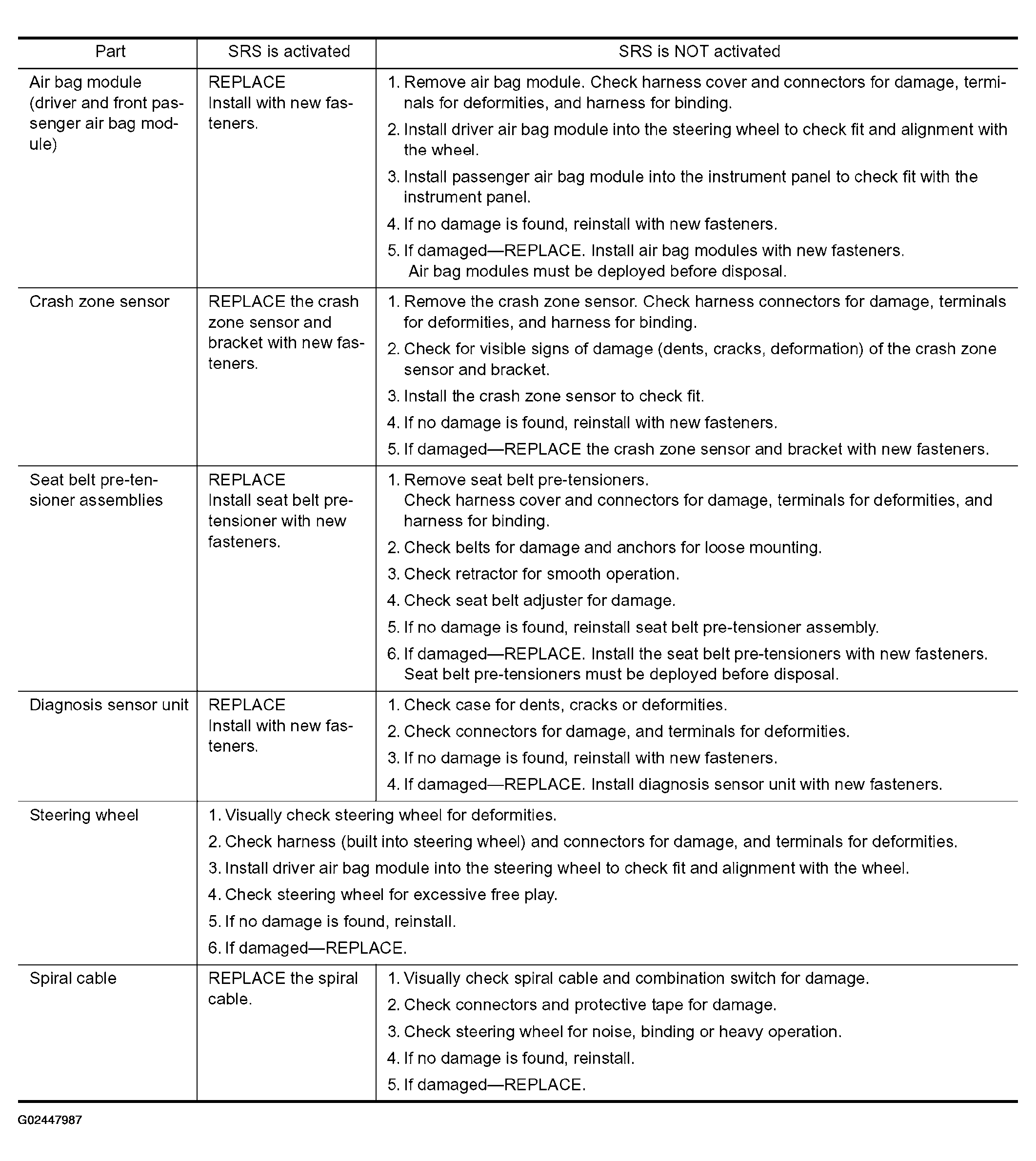

Fig 1: SRS Inspection (For Frontal Collision) Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

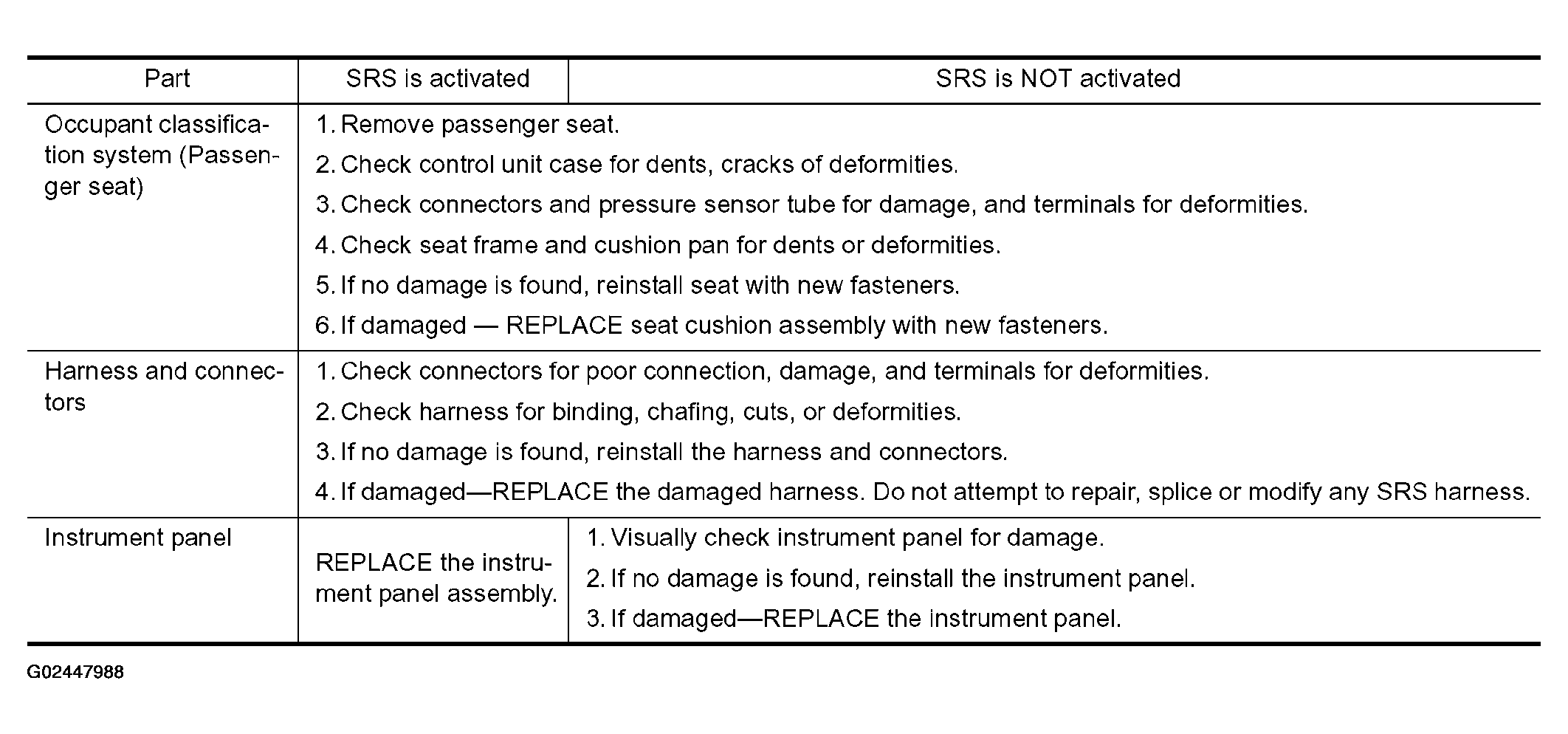

Fig 2: SRS Inspection (For Frontal Collision) Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
