Self-diagnosis codes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

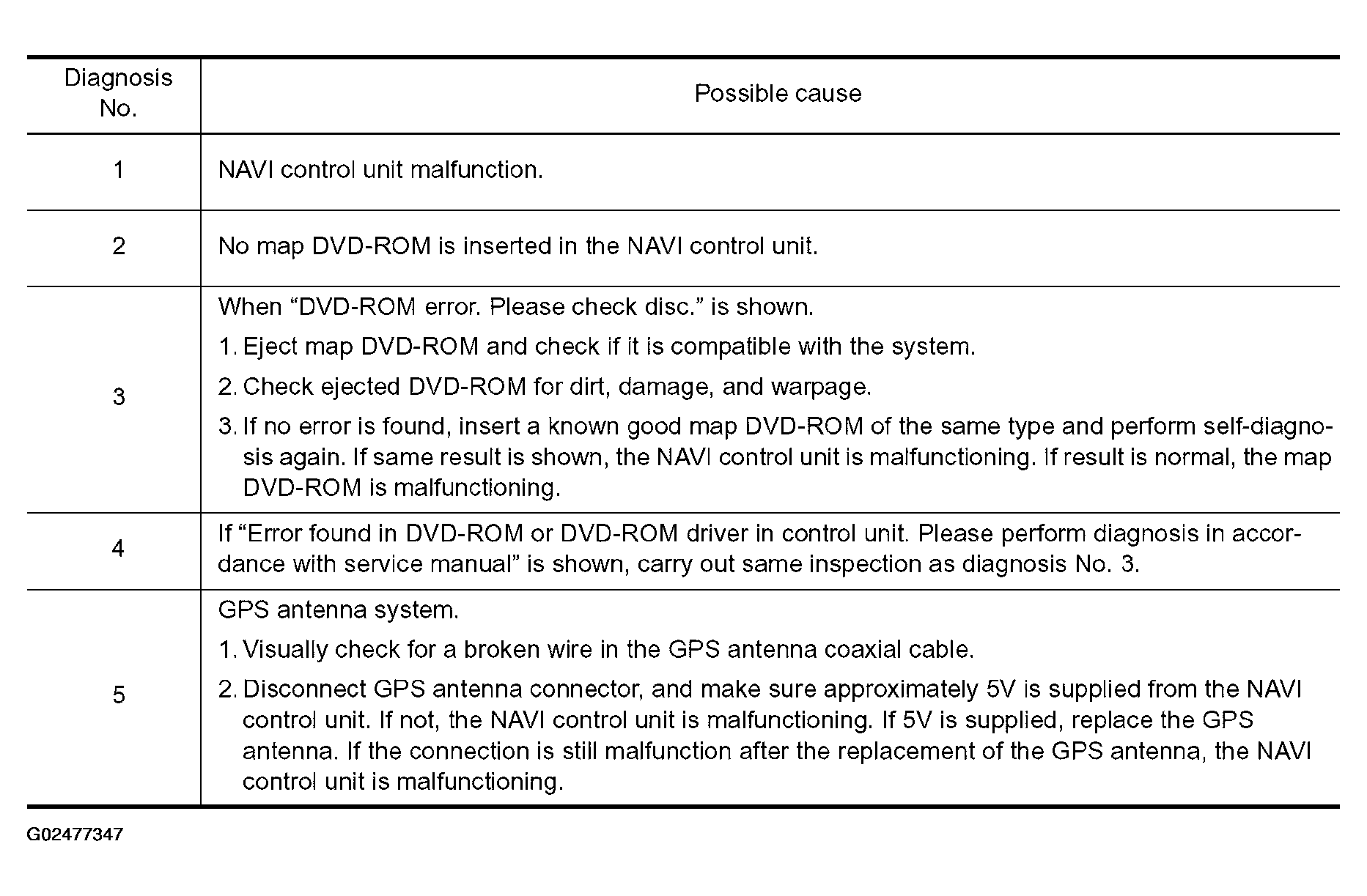

Fig 1: Self-Diagnosis Codes Table
G02477347Courtesy of NISSAN MOTOR CO., U.S.A.
