Wiring Diagram - DVD -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

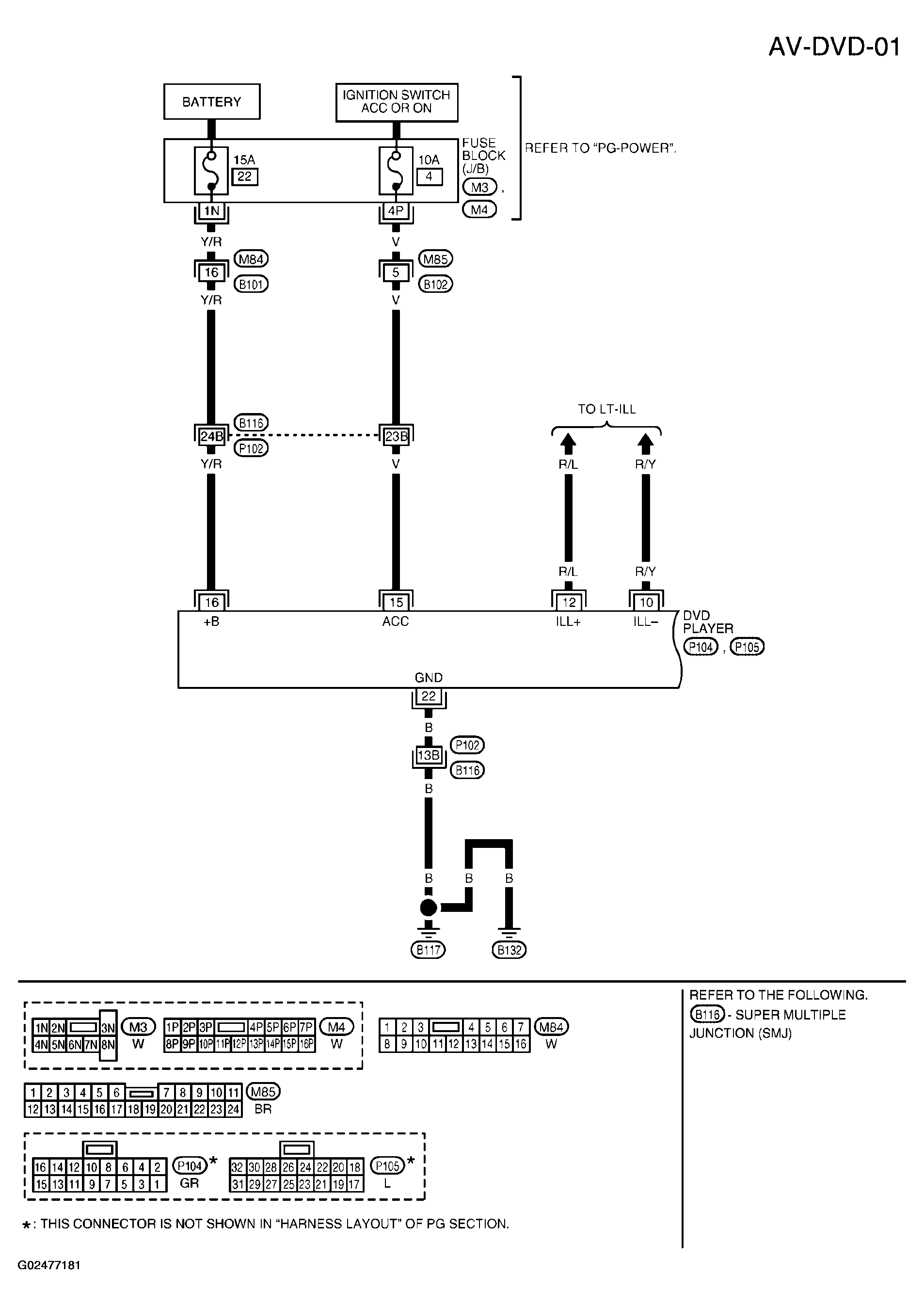

Fig 1: Wiring Diagram - DVD Entertainment System - AV-DVD-01

Courtesy of NISSAN MOTOR CO., U.S.A.

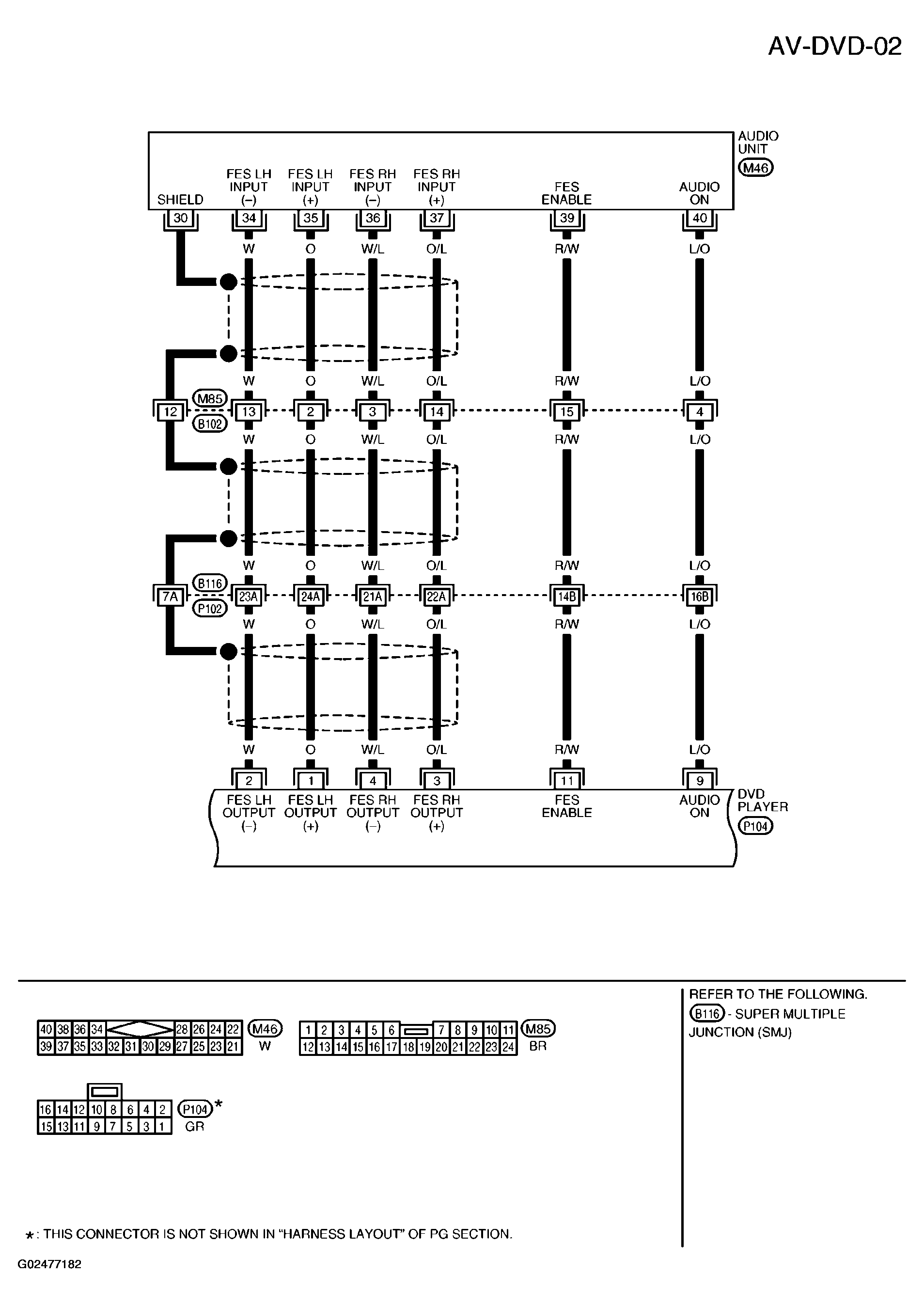

Fig 2: Wiring Diagram - DVD Entertainment System - AV-DVD-02

Courtesy of NISSAN MOTOR CO., U.S.A.

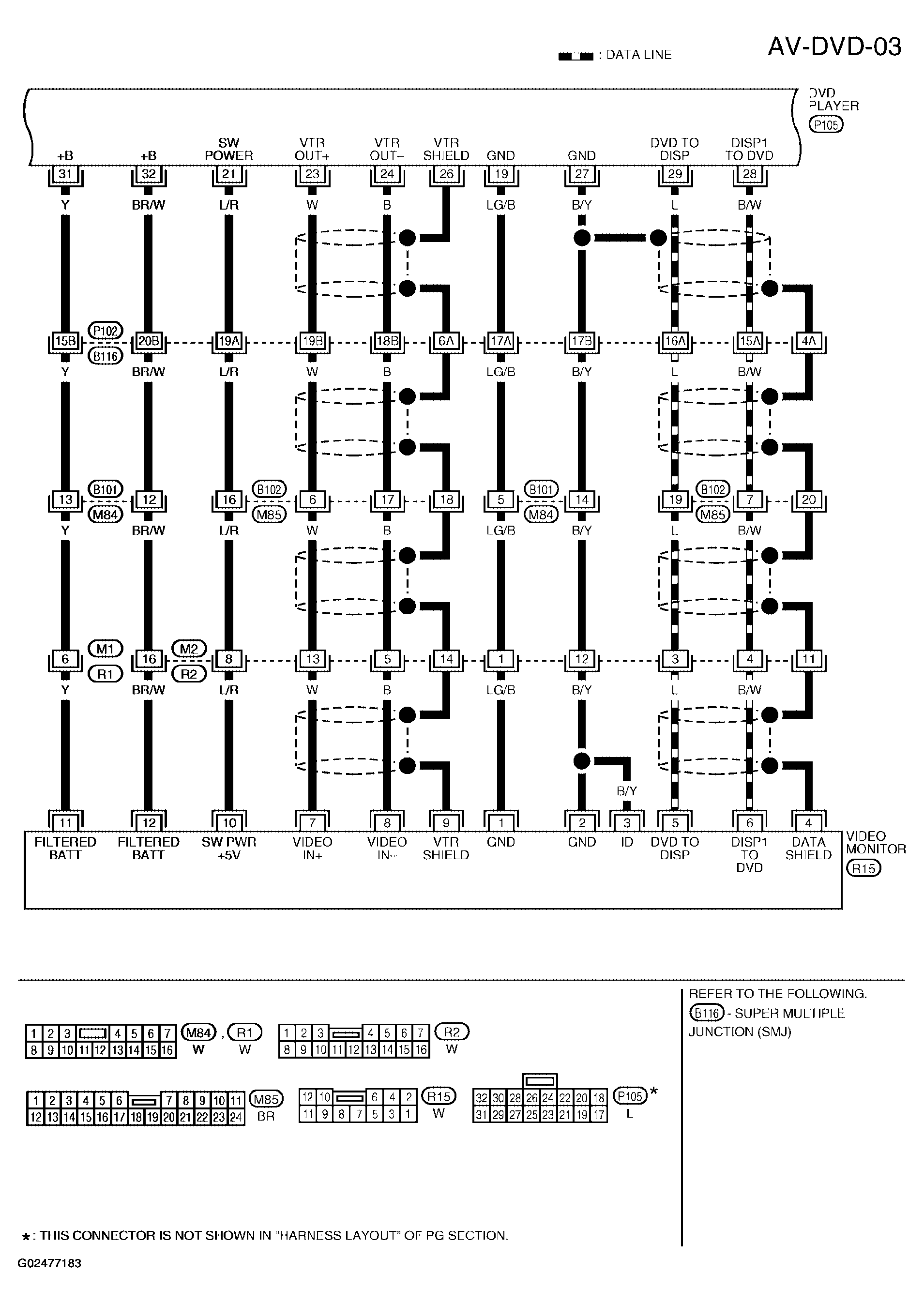

Fig 3: Wiring Diagram - Models Without Rear Roof Console Assembly - AV-DVD-03

Courtesy of NISSAN MOTOR CO., U.S.A.

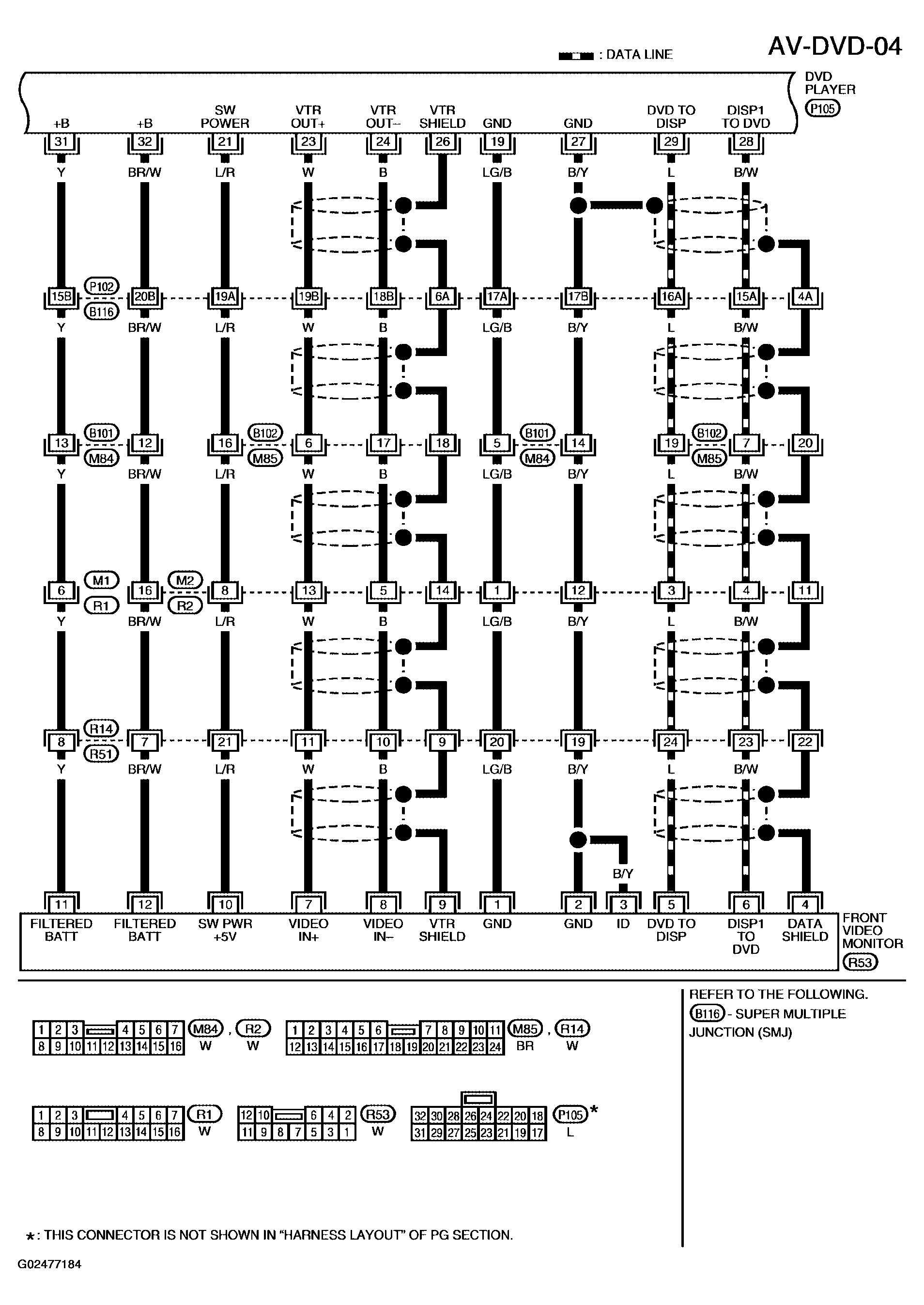

Fig 4: Wiring Diagram - Models With Rear Roof Console Assembly (Single Monitor) - AV-DVD-04

Courtesy of NISSAN MOTOR CO., U.S.A.

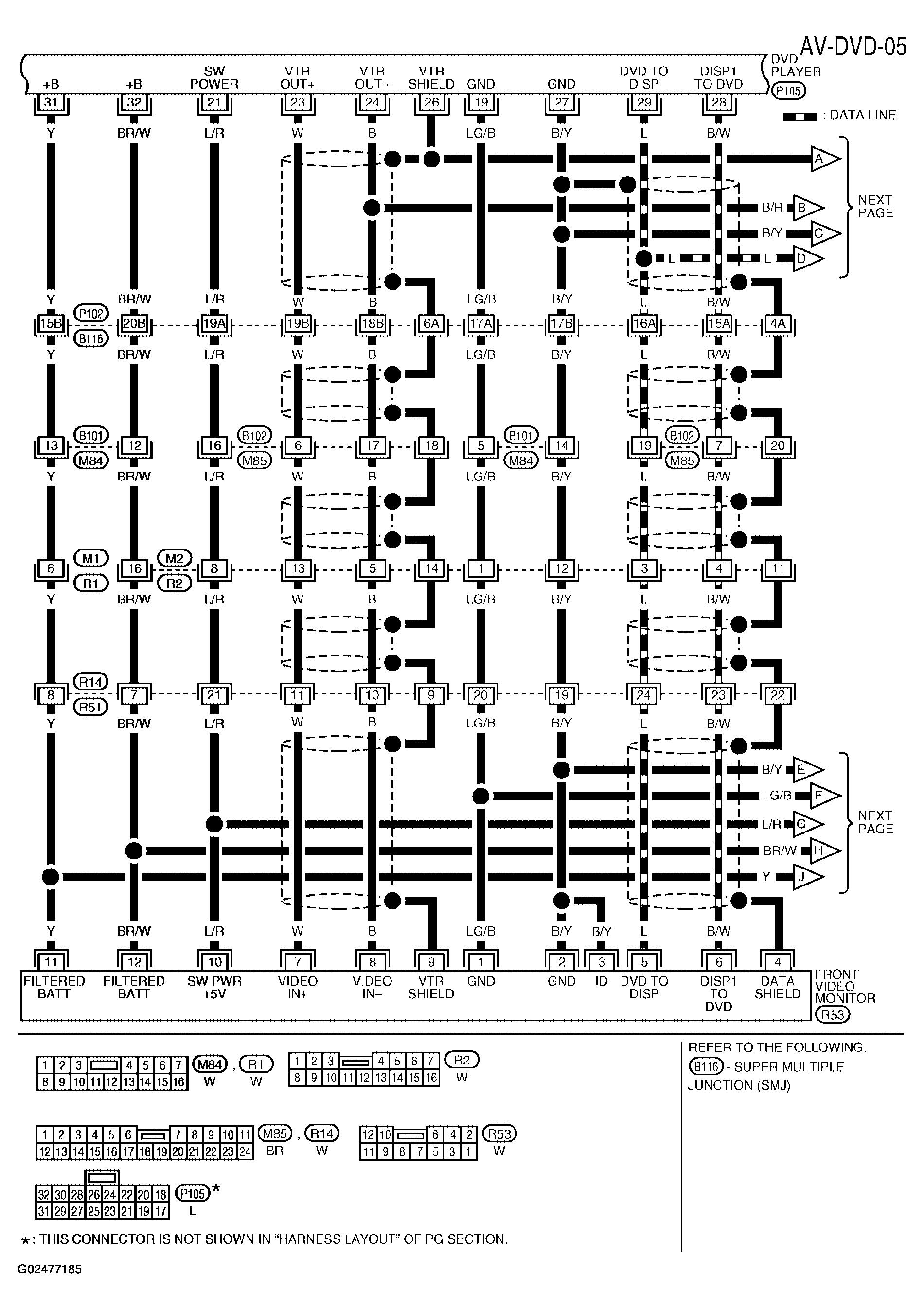

Fig 5: Wiring Diagram - Models With Rear Roof Console Assembly (Dual Monitor) - AV-DVD-05

Courtesy of NISSAN MOTOR CO., U.S.A.

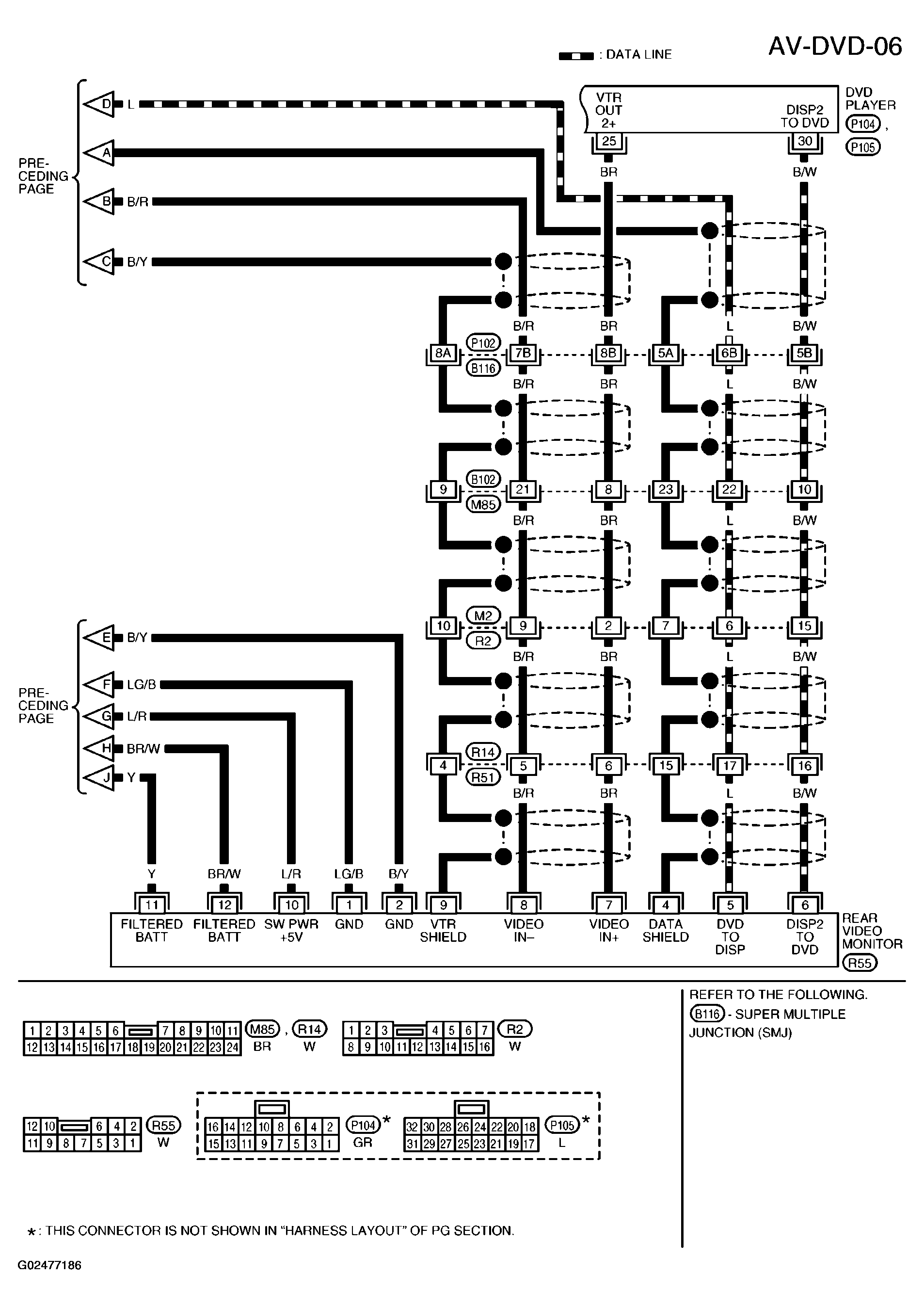

Fig 6: Wiring Diagram - DVD Entertainment System - AV-DVD-06

Courtesy of NISSAN MOTOR CO., U.S.A.
