Removal and Installation of Video Monitor (Without Rear Roof Console Assembly)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove video monitor screws.
  2. Disconnect connector.
  3. Remove video monitor housing.

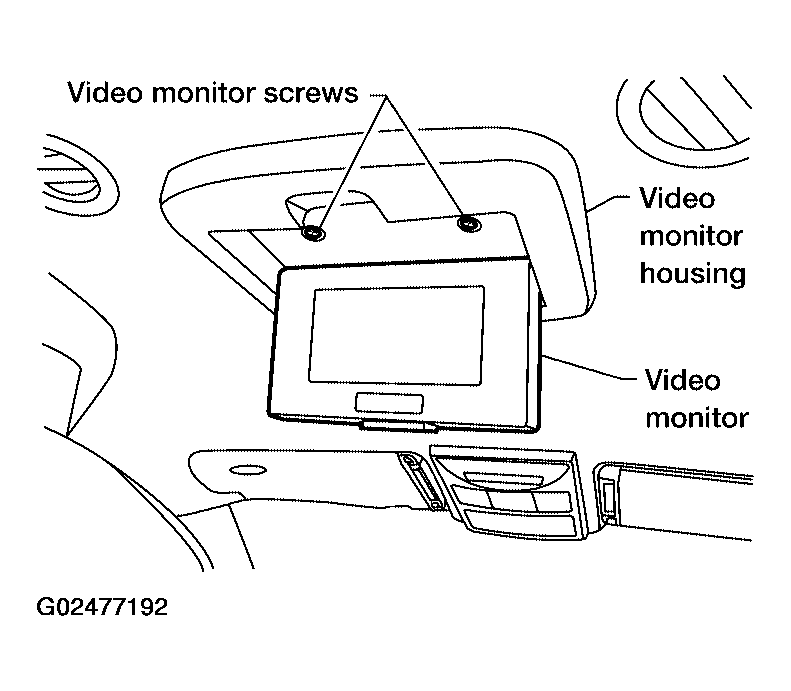

    Fig 1: Removing Video Monitor Housing
    G02477192Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the video monitor hinge screws.
  5. Remove the video monitor from video monitor housing.
  6. Installation is in reverse order of removal.

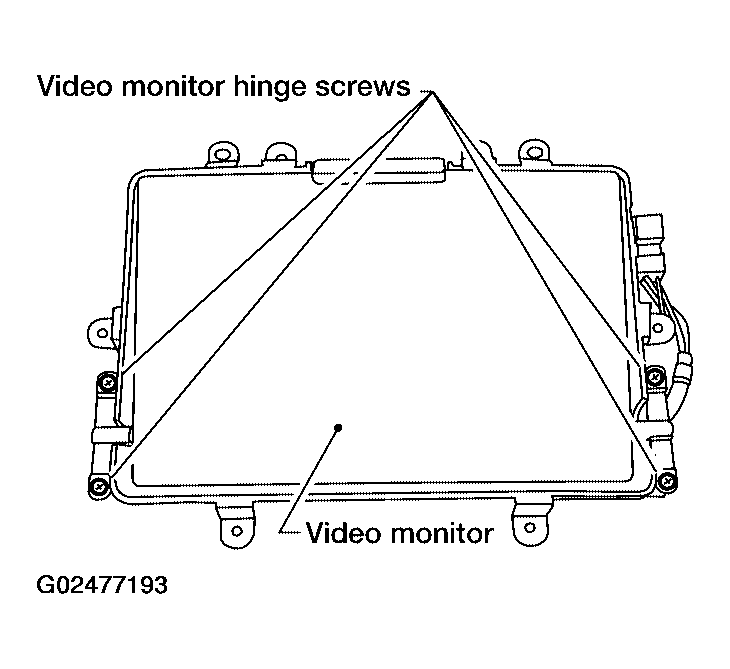

    Fig 2: Removing Video Monitor Hinge Screws
    G02477193Courtesy of NISSAN MOTOR CO., U.S.A.
