Removal and Installation of Video Monitor (With Rear Roof Console Assembly)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear roof console assembly. Refer to "HEADLINING ".
Disconnect the video monitor connector.
Remove the video housing screws.
Remove the video monitor and housing.

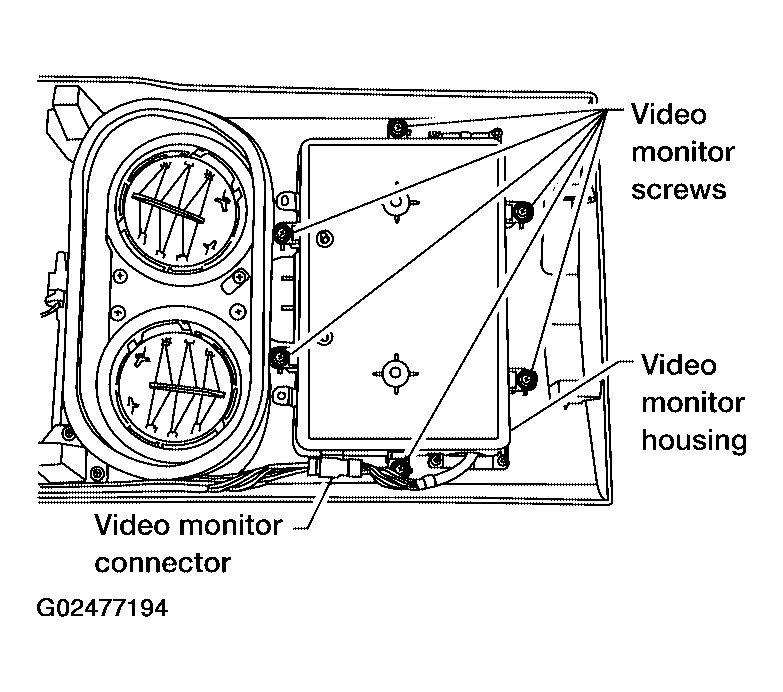

Fig 1: Removing Video Monitor & Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the video monitor hinge screws and remove the video monitor.
Installation is in reverse order of removal.

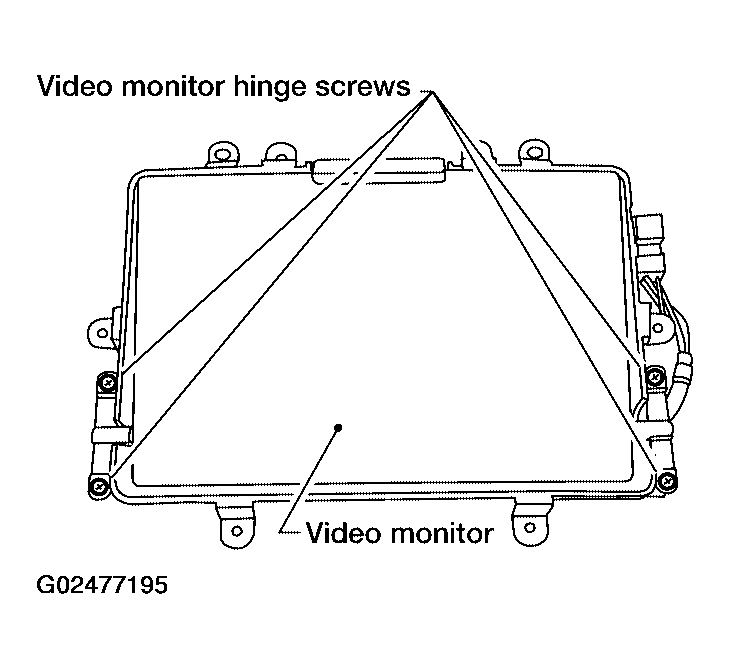

Fig 2: Removing Video Monitor Hinge Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
