Satellite Radio Tuner (Pre-Wiring)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

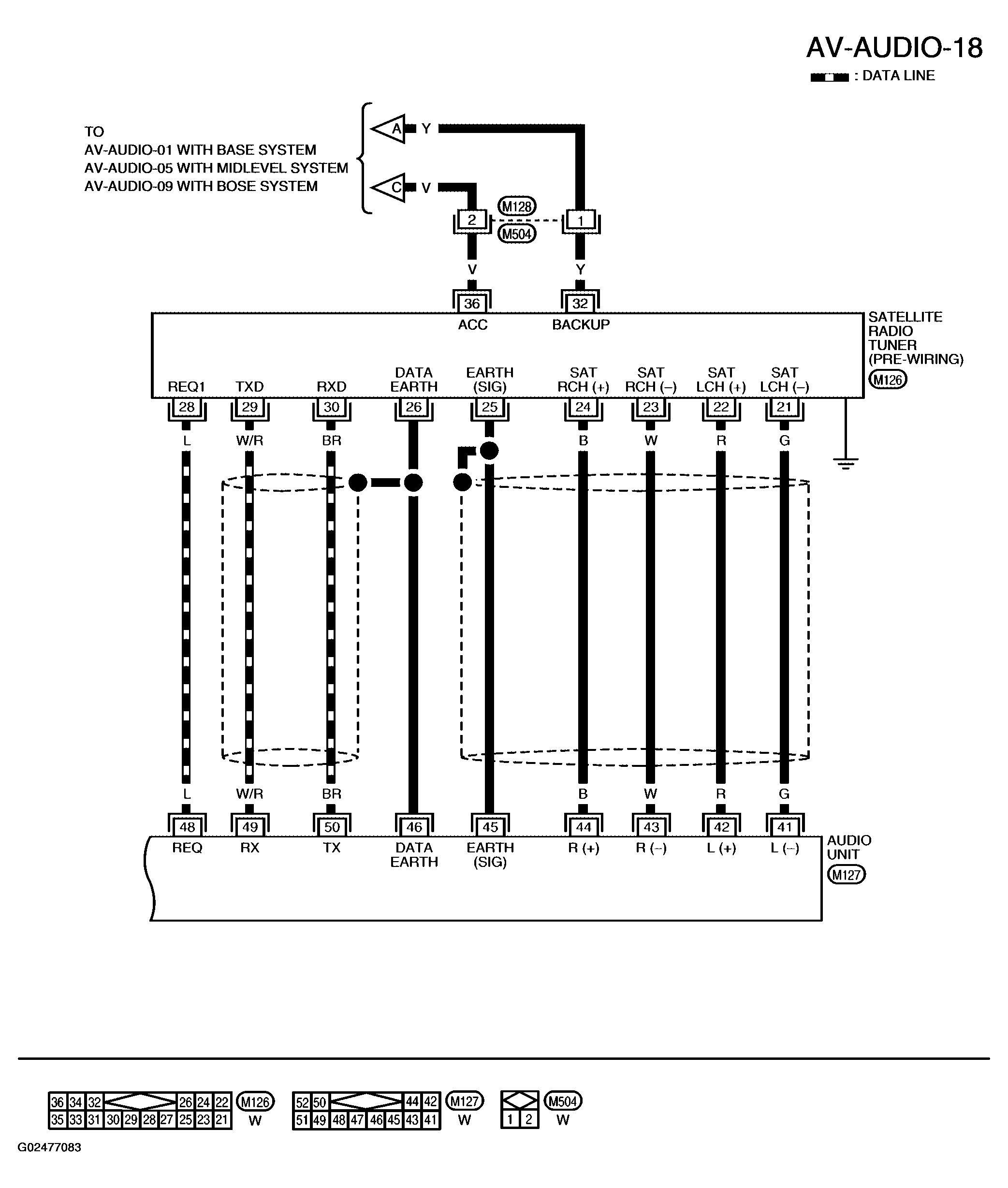

Fig 1: Wiring Diagram - Satellite Radio Tuner (Pre-Wiring) - AV-AUDIO-18
G02477083Courtesy of NISSAN MOTOR CO., U.S.A.
