BOSE System

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

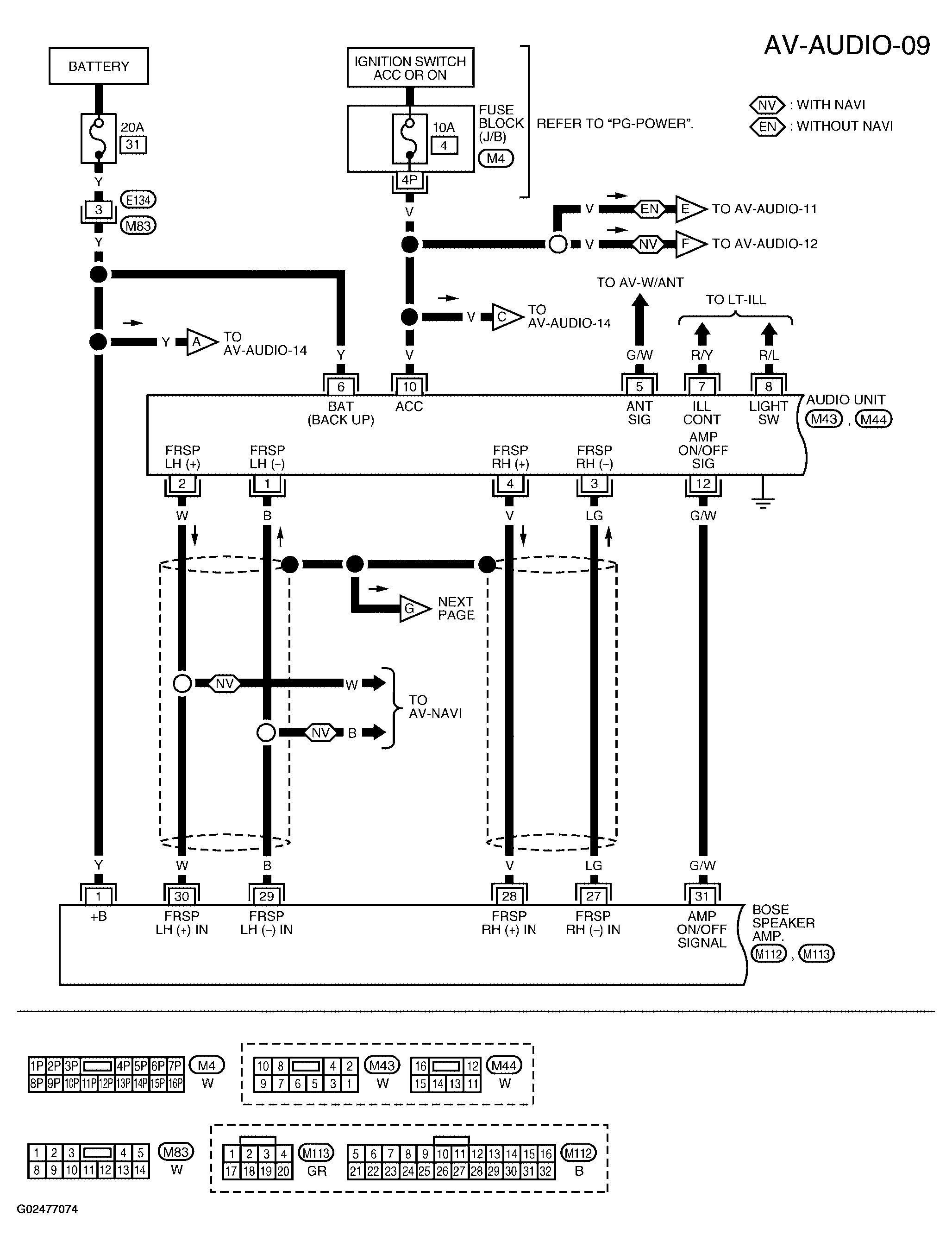

Fig 1: Wiring Diagram - Audio (Bose System) - AV-AUDIO-09

Courtesy of NISSAN MOTOR CO., U.S.A.

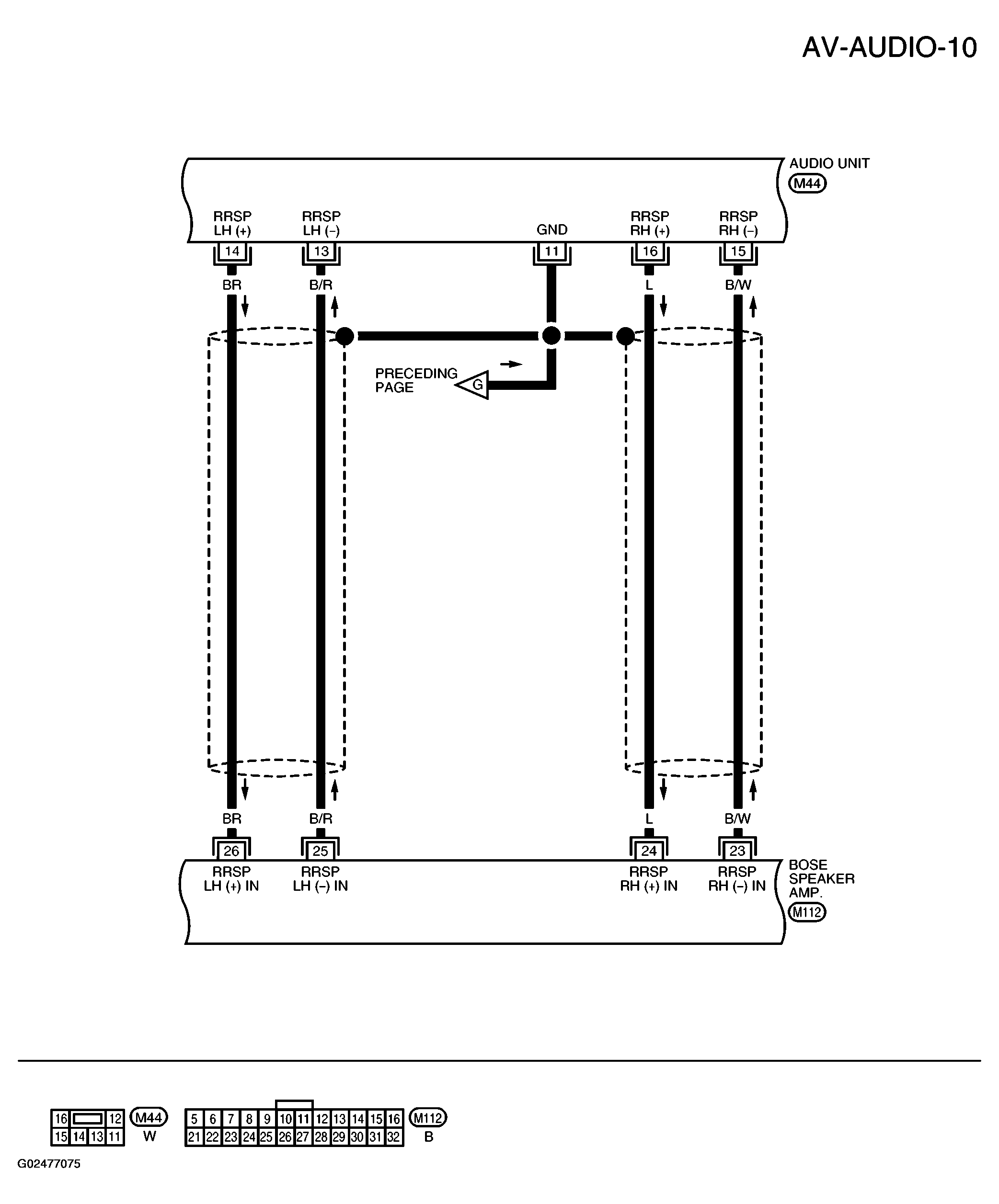

Fig 2: Wiring Diagram - Audio (Bose System) - AV-AUDIO-10

Courtesy of NISSAN MOTOR CO., U.S.A.

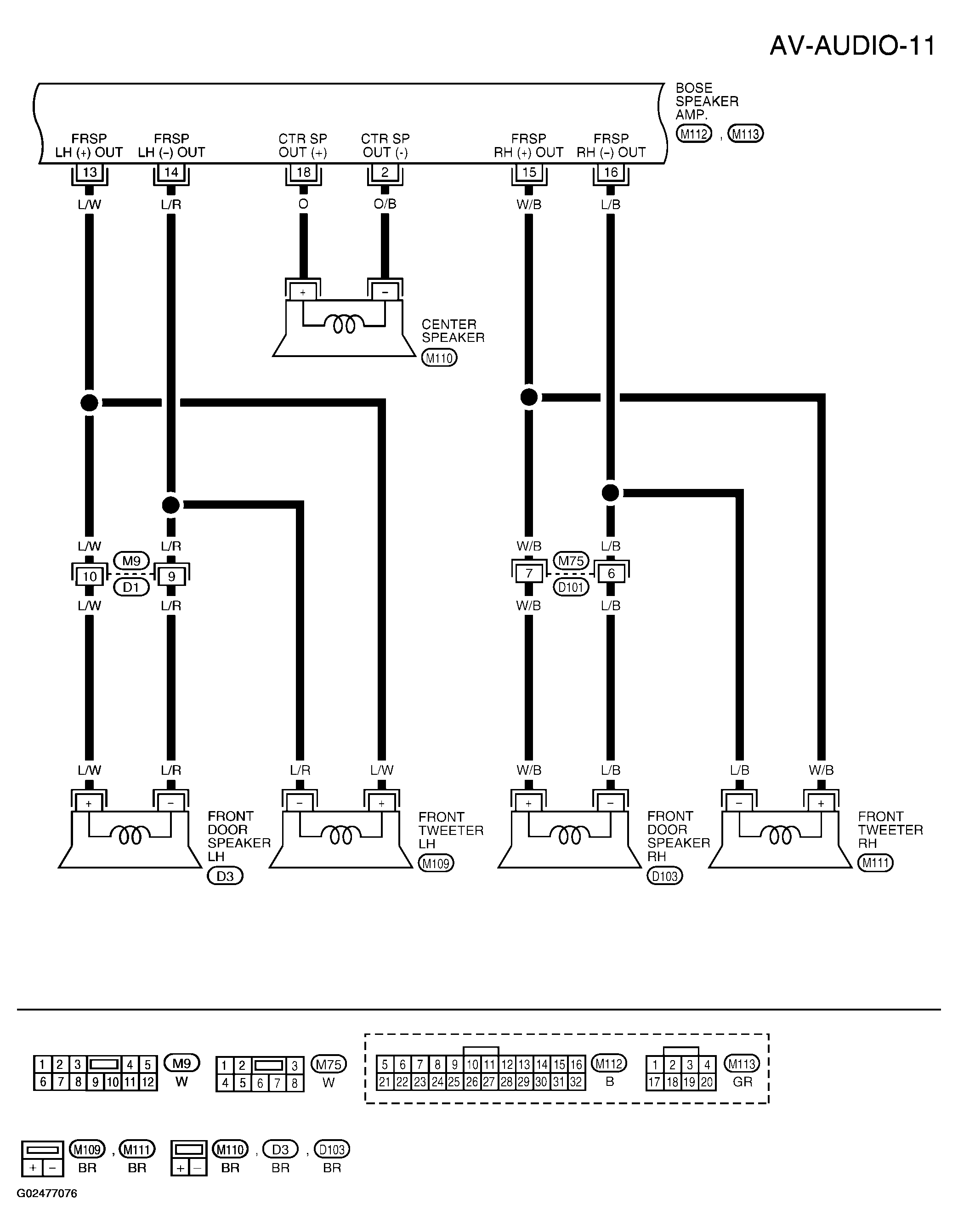

Fig 3: Wiring Diagram - Audio (Bose System) - AV-AUDIO-11

Courtesy of NISSAN MOTOR CO., U.S.A.

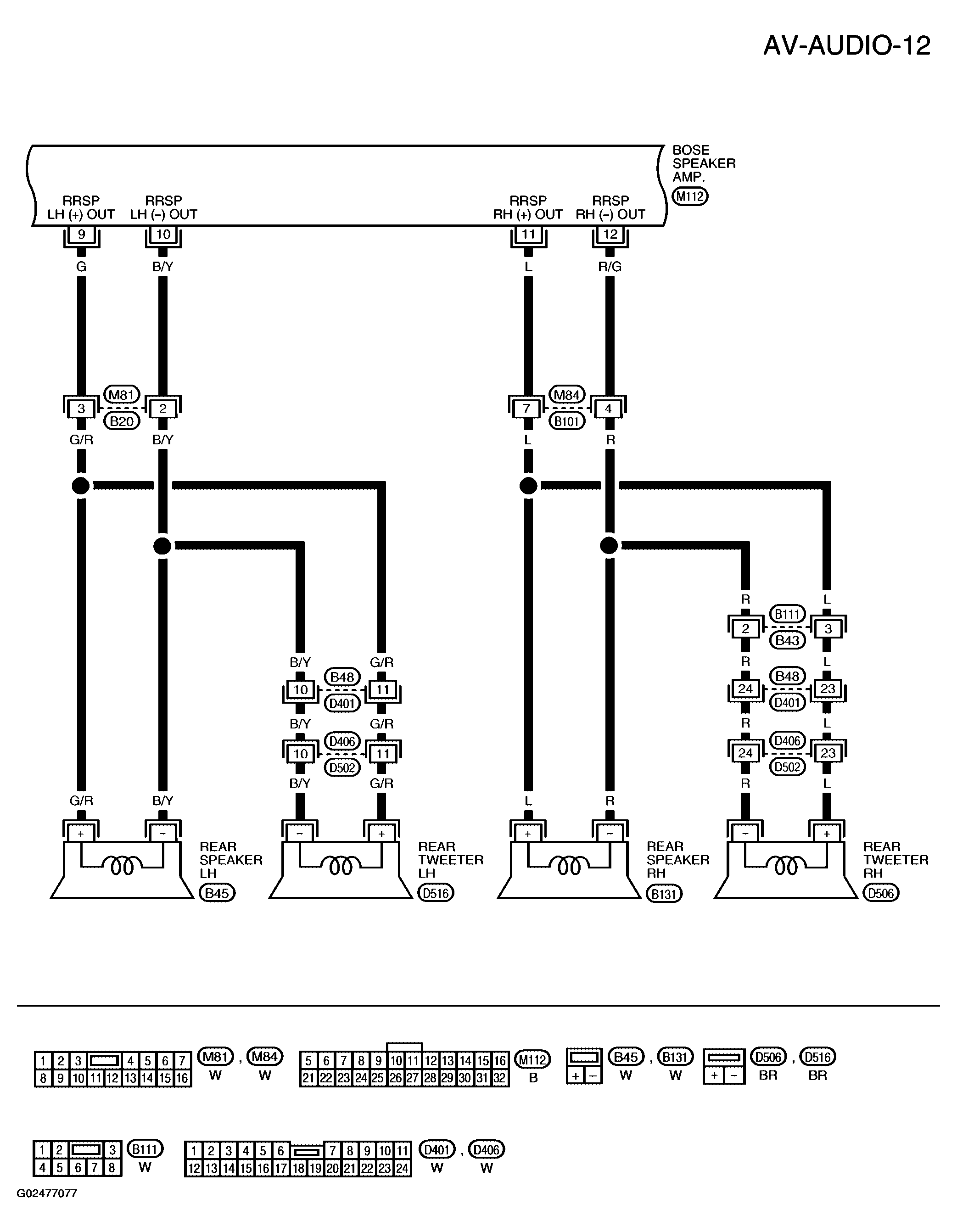

Fig 4: Wiring Diagram - Audio (Bose System) - AV-AUDIO-12

Courtesy of NISSAN MOTOR CO., U.S.A.

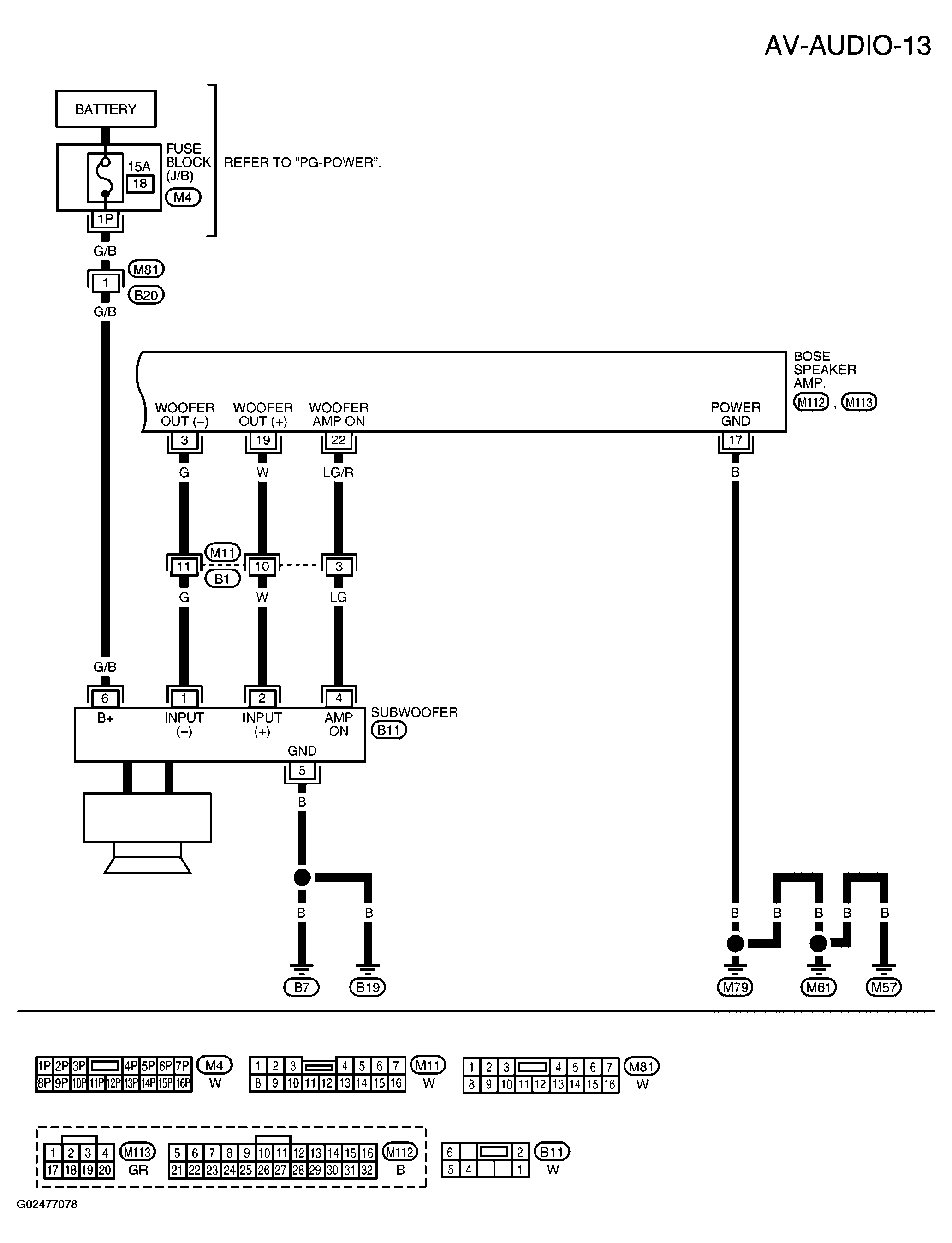

Fig 5: Wiring Diagram - Audio (Bose System) - AV-AUDIO-13

Courtesy of NISSAN MOTOR CO., U.S.A.

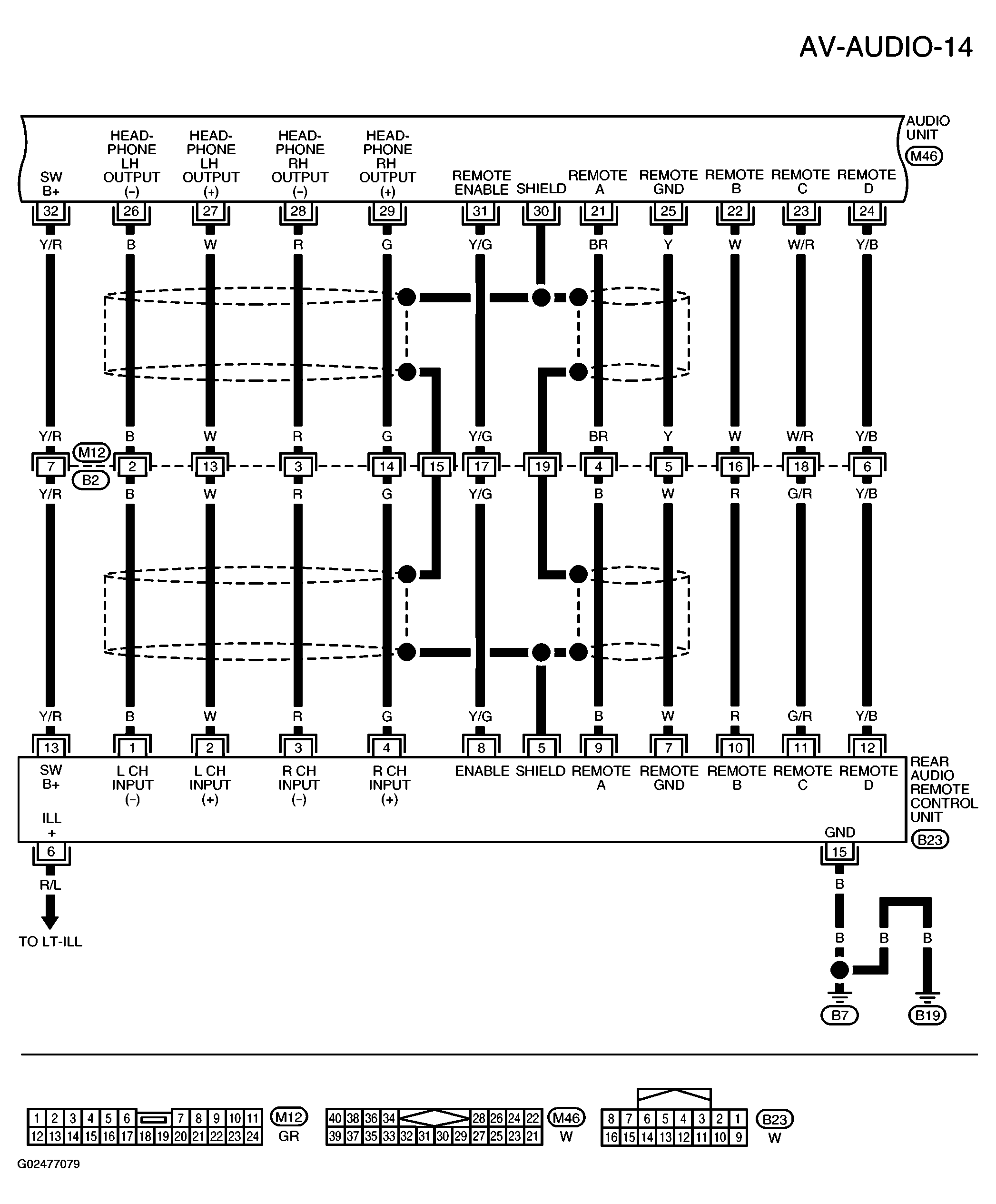

Fig 6: Wiring Diagram - Audio (Bose System) - AV-AUDIO-14

Courtesy of NISSAN MOTOR CO., U.S.A.

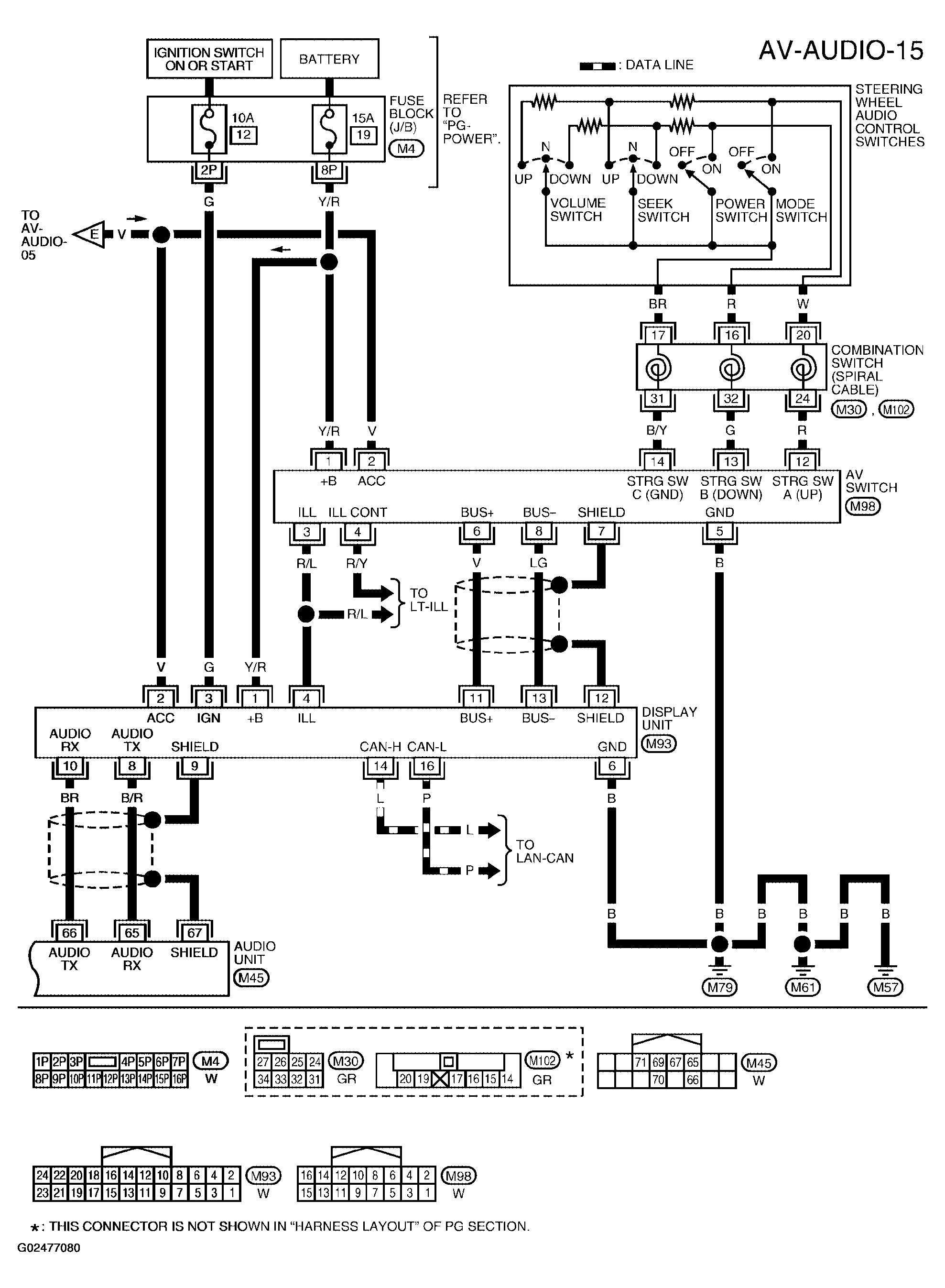

Fig 7: Wiring Diagram - Audio (Bose System) Without Navigation System - AV-AUDIO-15

Courtesy of NISSAN MOTOR CO., U.S.A.

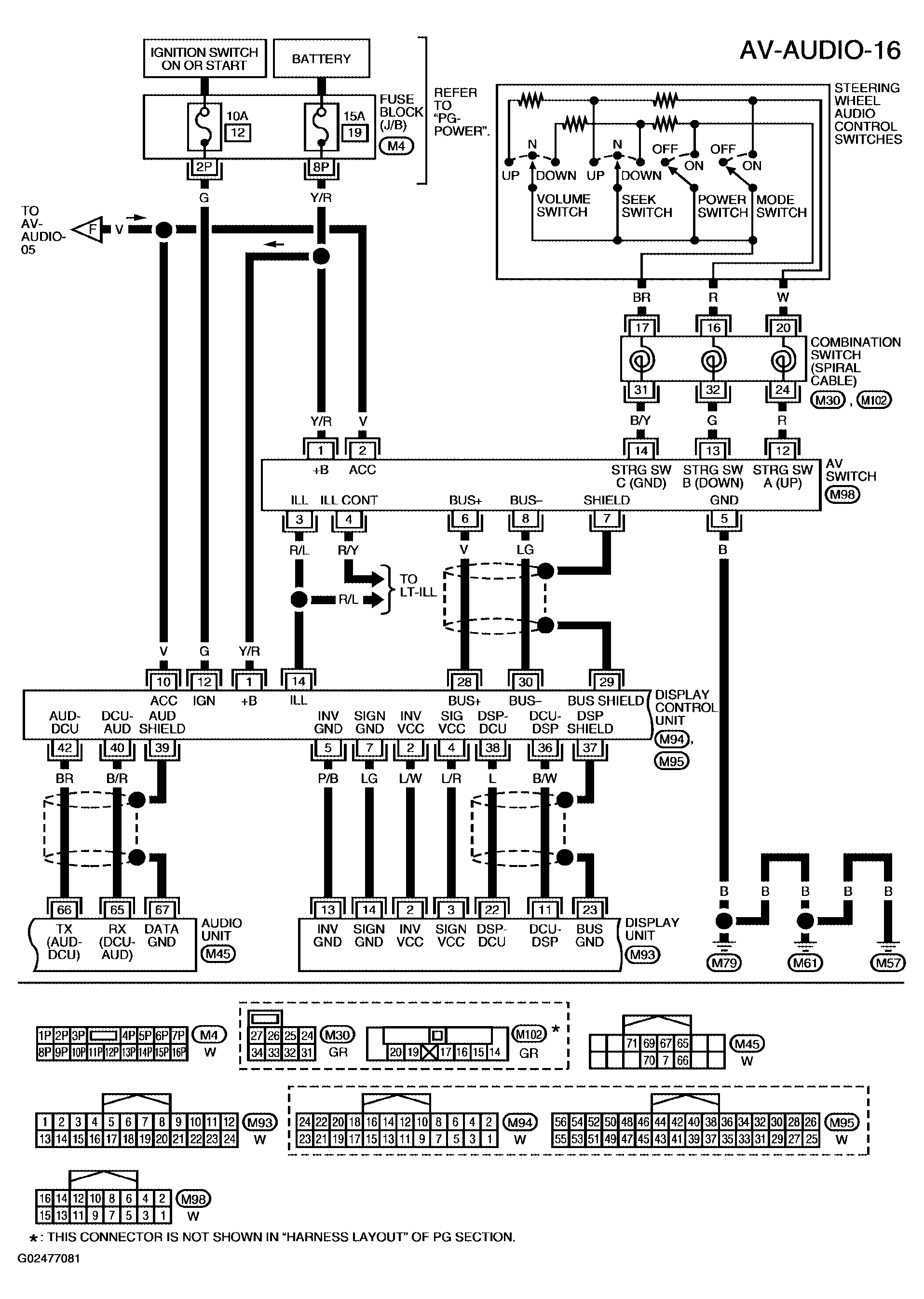

Fig 8: Wiring Diagram - Audio (Bose System) With Navigation System - AV-AUDIO-16

Courtesy of NISSAN MOTOR CO., U.S.A.

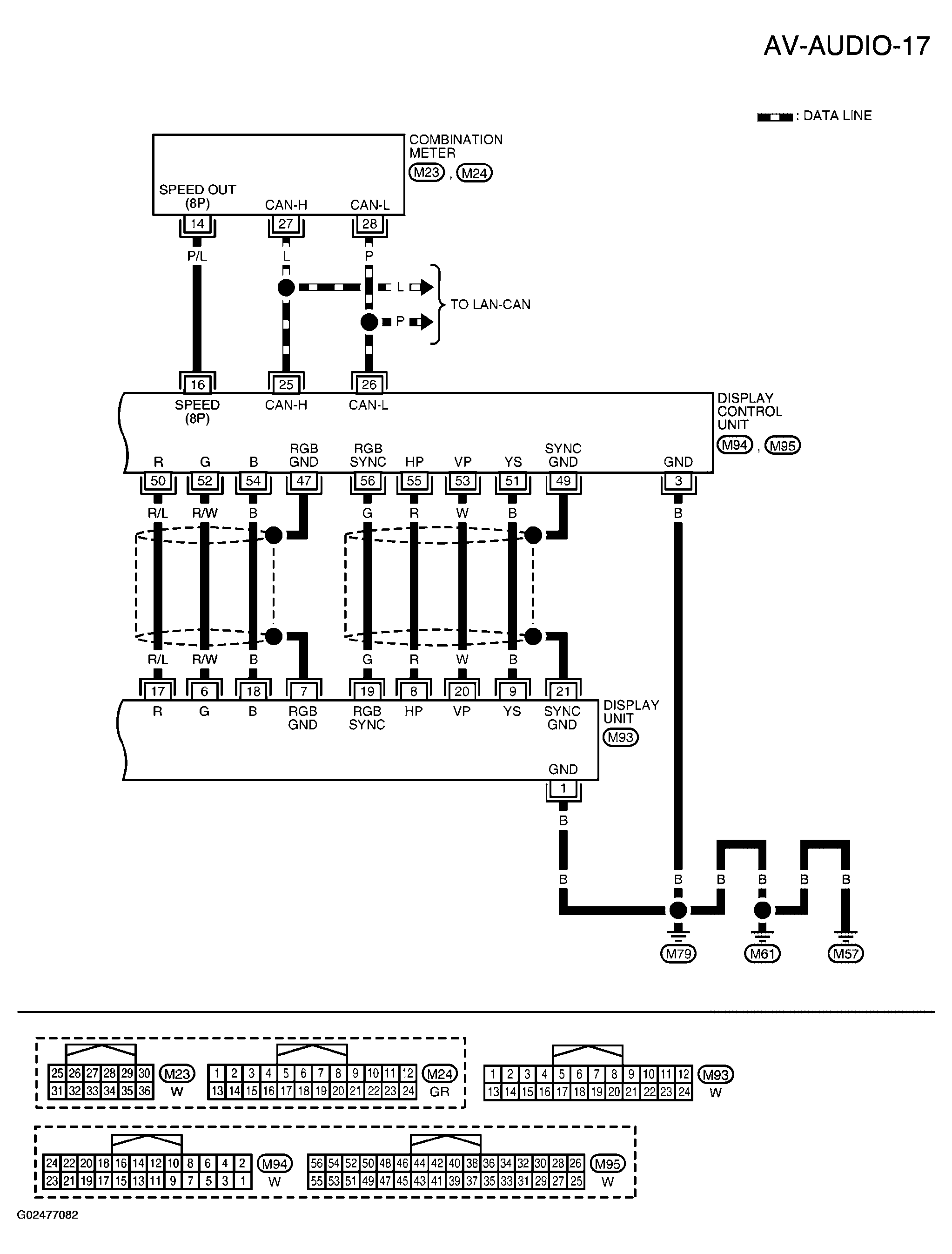

Fig 9: Wiring Diagram - Audio (Bose System) With Navigation System - AV-AUDIO-17

Courtesy of NISSAN MOTOR CO., U.S.A.
