Removal and Installation of Steering Wheel Audio Control Switches

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering wheel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove horn switch screws and remove horn switch.

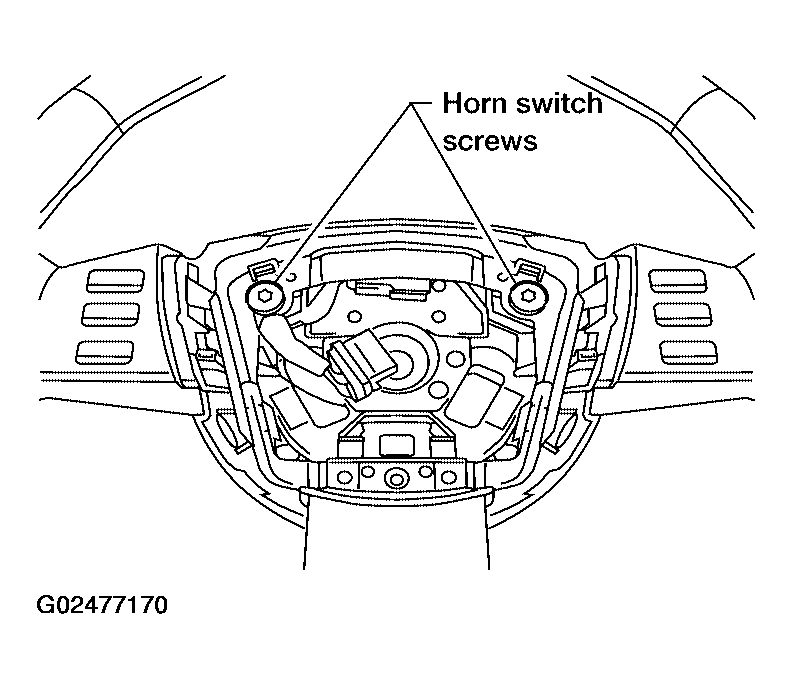

    Fig 1: Removing Horn Switch Screws
    G02477170Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove steering wheel rear cover screws and remove steering wheel rear cover.

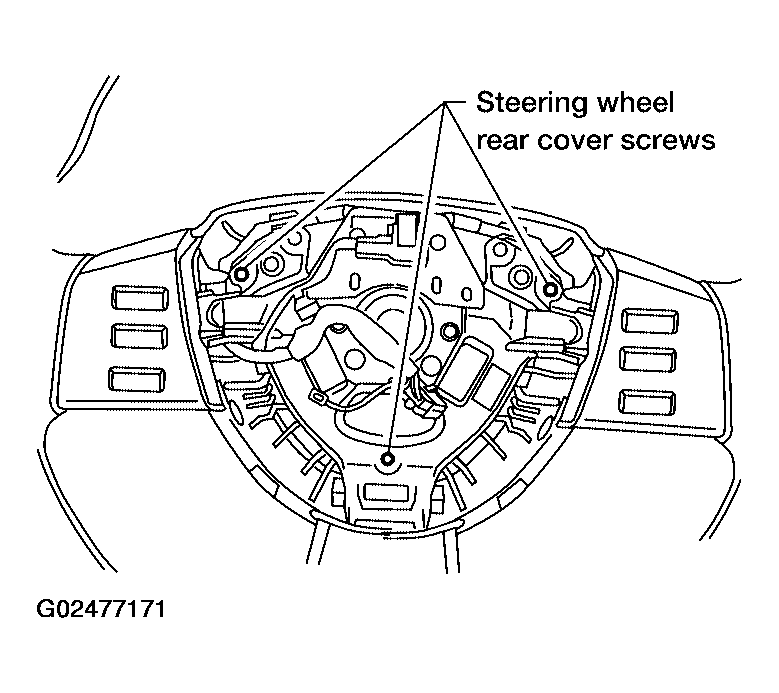

    Fig 2: Removing Steering Wheel Rear Cover Screws
    G02477171Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove steering wheel switch assembly screws and steering wheel switches.

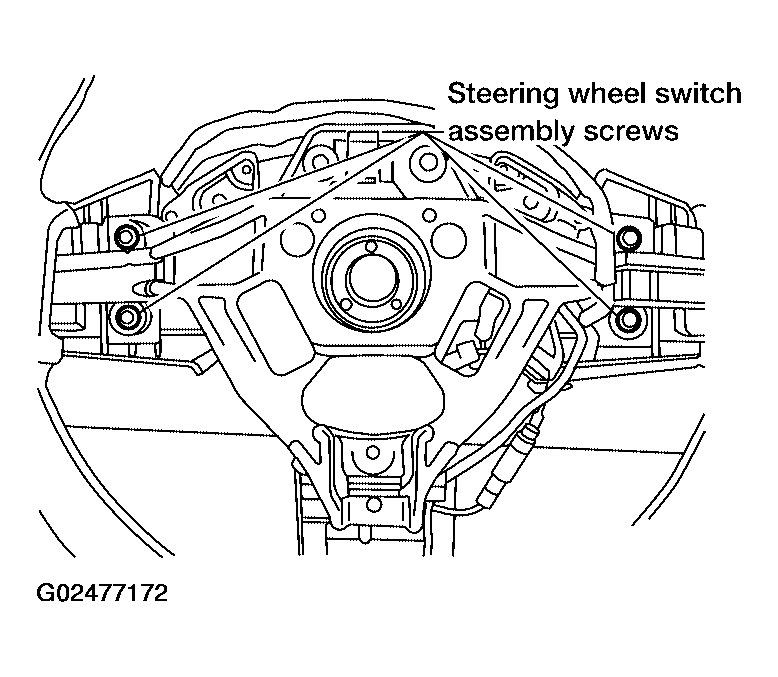

    Fig 3: Removing Steering Wheel Switch Assembly
    G02477172Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Installation is in the reverse order of removal.
