Removal and Installation of Rear Tweeter

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door lower finisher. Refer to "BACK DOOR LOWER FINISHER ".
  2. Disconnect connector.
  3. Remove push pins and remove tweeter.

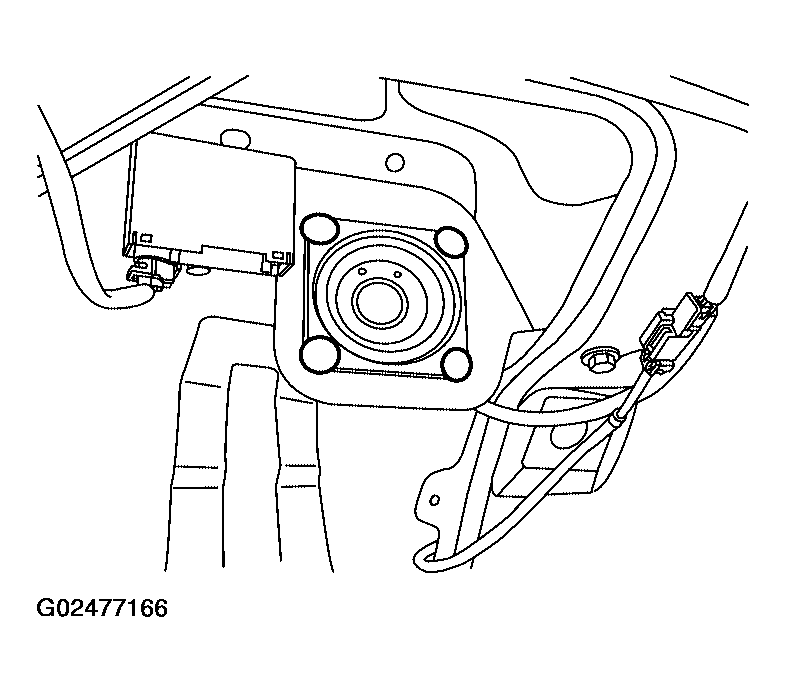

    Fig 1: Removing Rear Tweeter
    G02477166Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Installation is in the reverse order of removal.
