Removal and Installation of Rear Speaker

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove body side trim panel. Refer to "BODY SIDE TRIM ".
  2. Remove the three rear speaker screws and remove speaker.

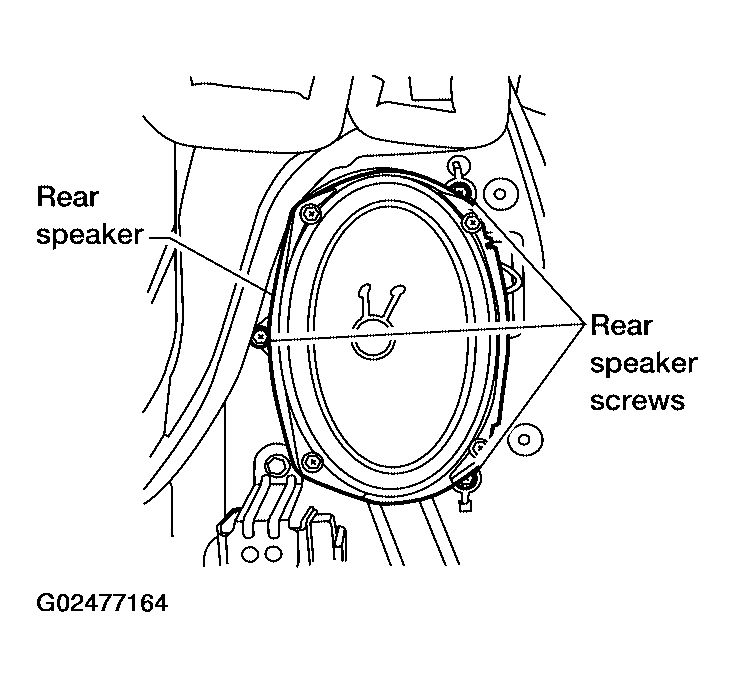

    Fig 1: Removing Rear Speaker Screws
    G02477164Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect connector.
  4. Installation is in the reverse order of removal.

    Rear speaker screws: 4 N.m (0.4 kg-m, 35 in-lb)
