Removal and Installation of Front Door Speaker

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to "FRONT DOOR ".
  2. Remove the three front door speaker screws.

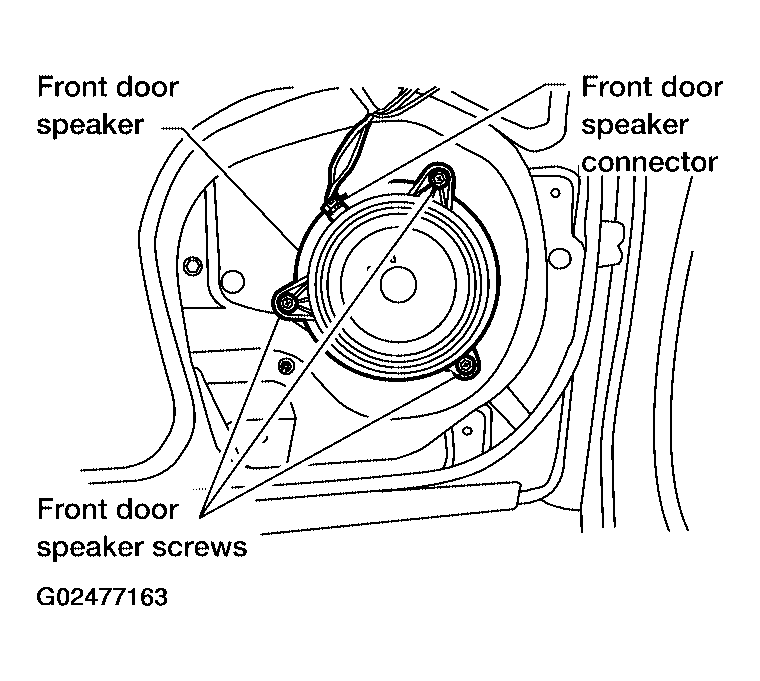

    Fig 1: Removing Front Door Speaker Screws
    G02477163Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect connector and remove the speaker.
  4. Installation is in the reverse order of removal.

    Front door speaker screws: 4 N.m (0.4 kg-m, 35 in-lb)
