Removal and Installation of Center Speaker

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter cover. Refer to "COMBINATION METER ".
  2. Remove the center speaker screws

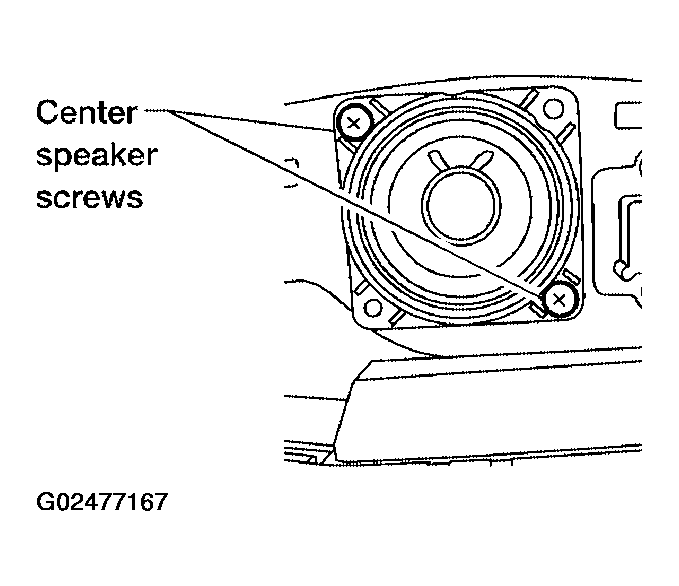

    Fig 1: Removing Center Speaker Screws
    G02477167Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect connector and remove the speaker.
  4. Installation is in the reverse order of removal.
