Starting The Self-Diagnosis Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch from OFF to ACC.
  2. Within 10 seconds press and hold the switches "PAUSE/MUTE" and "PREV" simultaneously for 3 seconds.

    Then the self-diagnosis operates. A single beep indicates self-diagnosis mode is active.

  3. Press each switch and listen for beep.

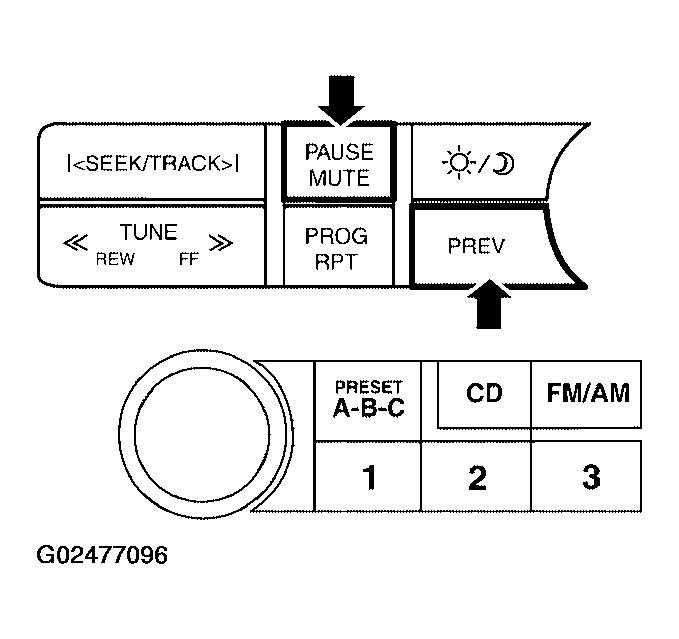

    Fig 1: Pressing Switches Pause/Mute & PREV
    G02477096Courtesy of NISSAN MOTOR CO., U.S.A.
