Idling Or Clearing Fault Codes Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: While in idle mode, self-diagnosis will automatically exit if no activity occurs for thirty seconds.
  1. Push and hold rear sonar system OFF switch for three seconds to reset time-out counter.
  2. Push and hold rear sonar system OFF switch for three seconds to clear codes.

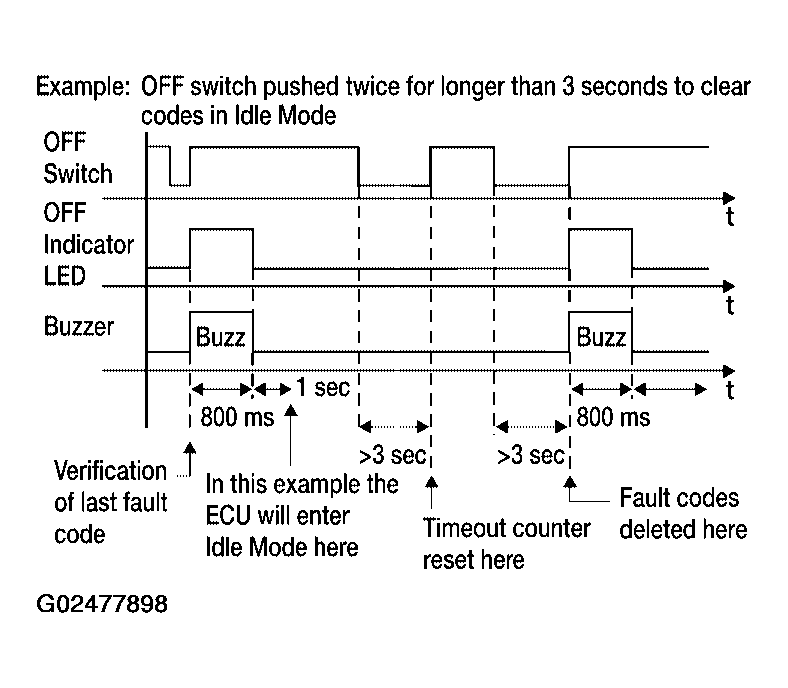

    Fig 1: Identifying Blinking Pattern
    G02477898Courtesy of NISSAN MOTOR CO., U.S.A.
