Sonar Buzzer

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the sonar buzzer connector M117, and apply battery voltage (approx. 12V) to terminal +. Check the buzzer operation when terminal - is connected to battery ground.

Fig 1: Connecting Battery To Sonar Buzzer Connector Terminals 6 & 7

Courtesy of NISSAN MOTOR CO., U.S.A.

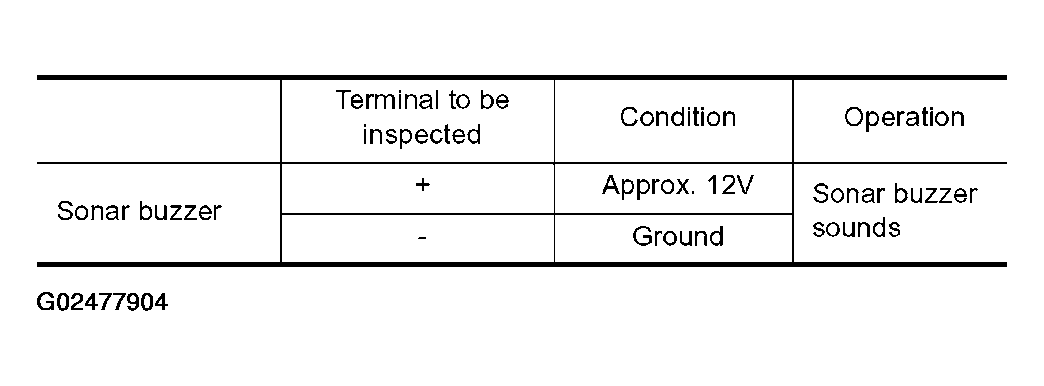

Fig 2: Sonar Buzzer Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
