4 Speed A/T

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

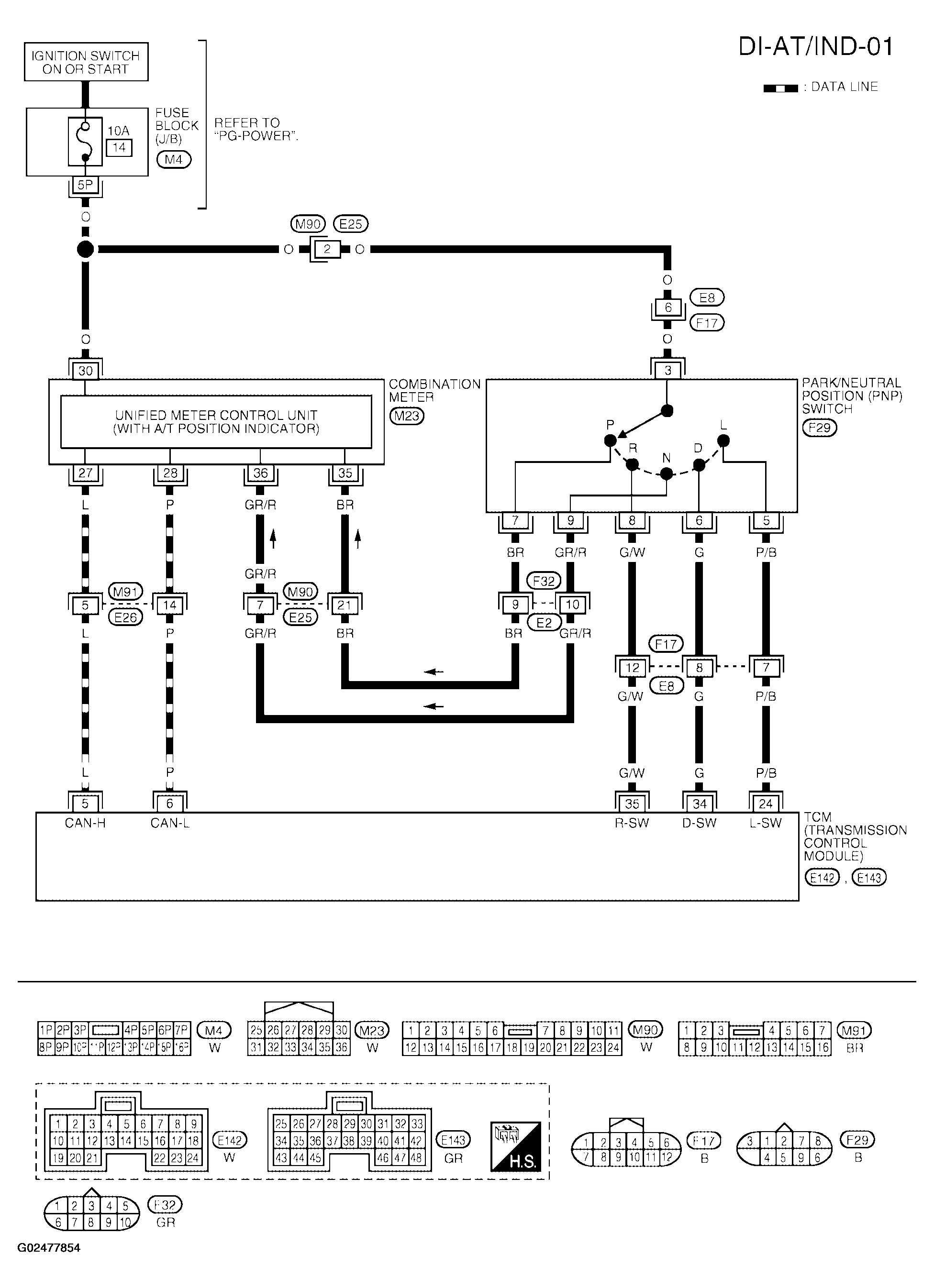

Fig 1: Wiring Diagram - Indicator - 4 Speed A/T - DI-AT/IND-01
G02477854Courtesy of NISSAN MOTOR CO., U.S.A.
