A/T Indicator Does Not Illuminate

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to "SELF-DIAGNOSIS FUNCTION ".

OK or NG
- OK: GO TO 2.
- NG: Replace combination meter. Refer to "COMBINATION METER ".

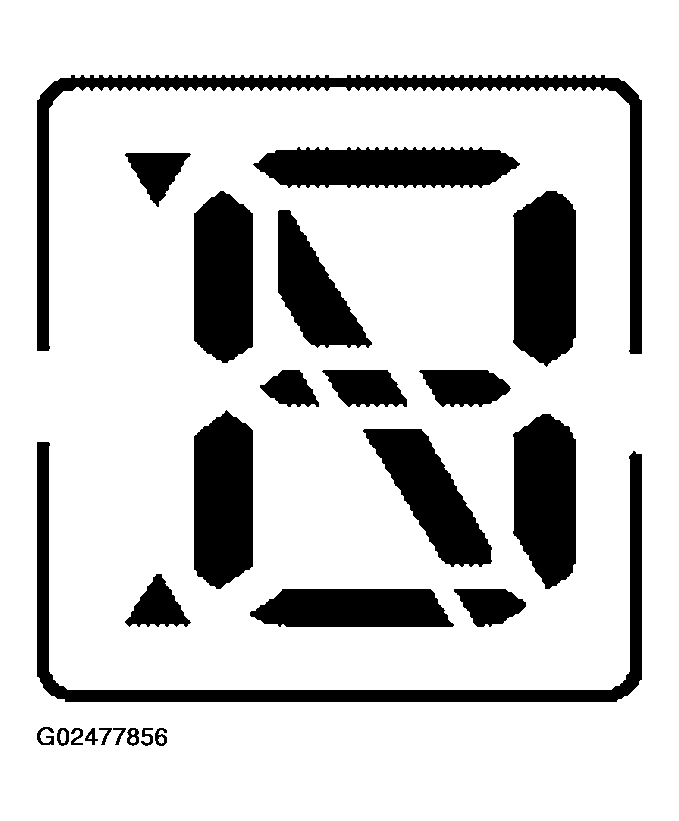

  Fig 1: A/T Indicator Malfunction Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK TCM
Perform self-diagnosis of TCM. For 4 A/T models, refer to SELF-DIAGNOSTIC RESULT TEST MODE For 5 A/T models, refer to SELF-DIAG RESULT MODE

OK or NG
- OK: Replace combination meter. Refer to "COMBINATION METER ".
- NG: Check the applicable parts.
