Wiring Diagram - AT - NON Diagnostic Trouble Codes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

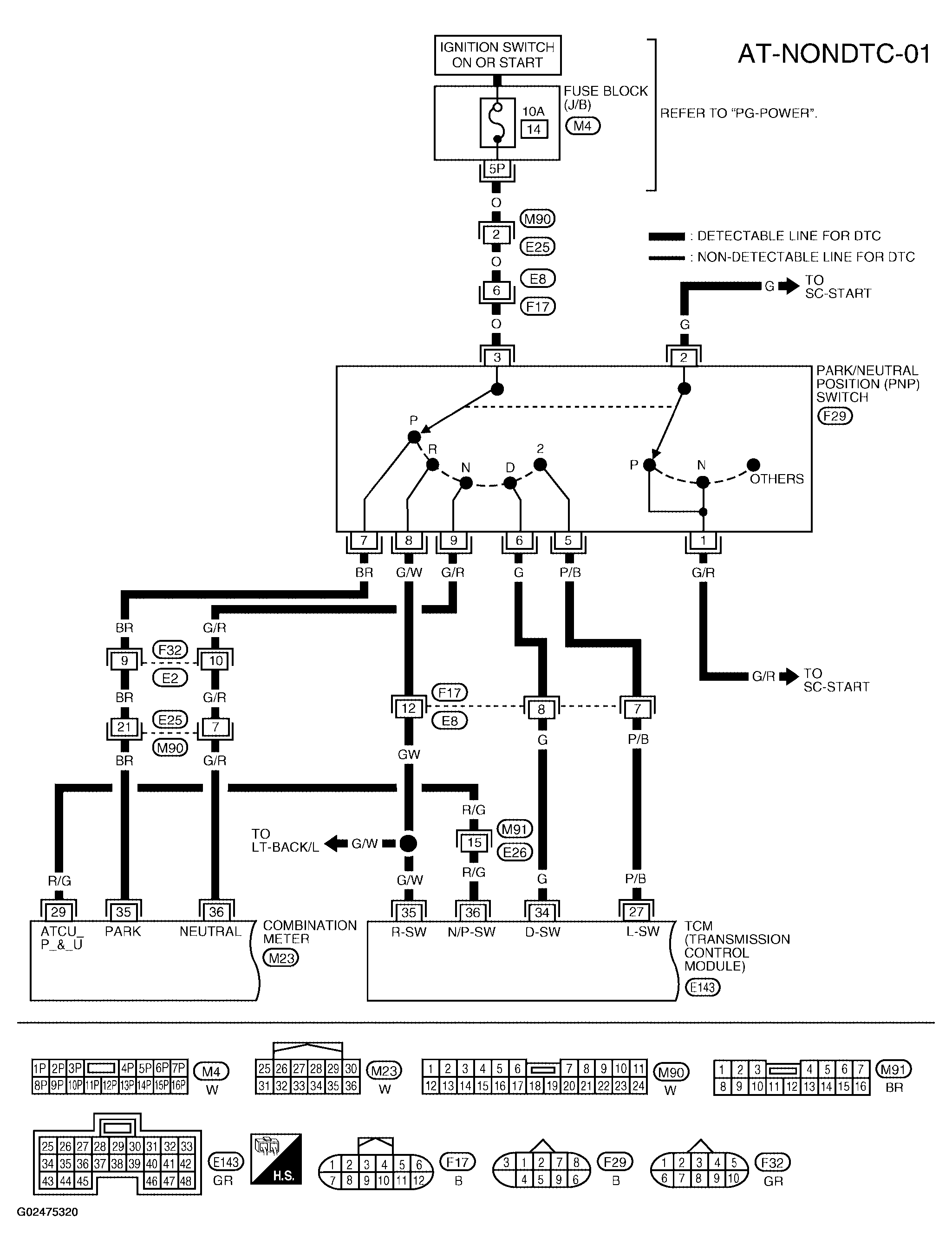

Fig 1: Wiring Diagram - AT-NONDTC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM TERMINALS AND REFERENCE VALUE (MEASURED BETWEEN EACH TERMINAL AND GROUND)

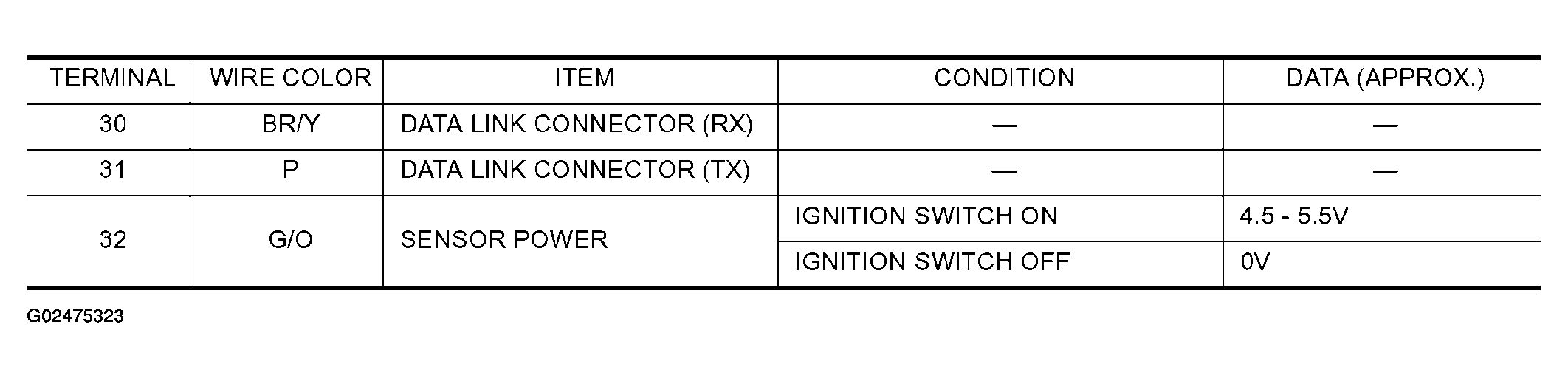

Fig 2: Connector Terminal Voltage Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

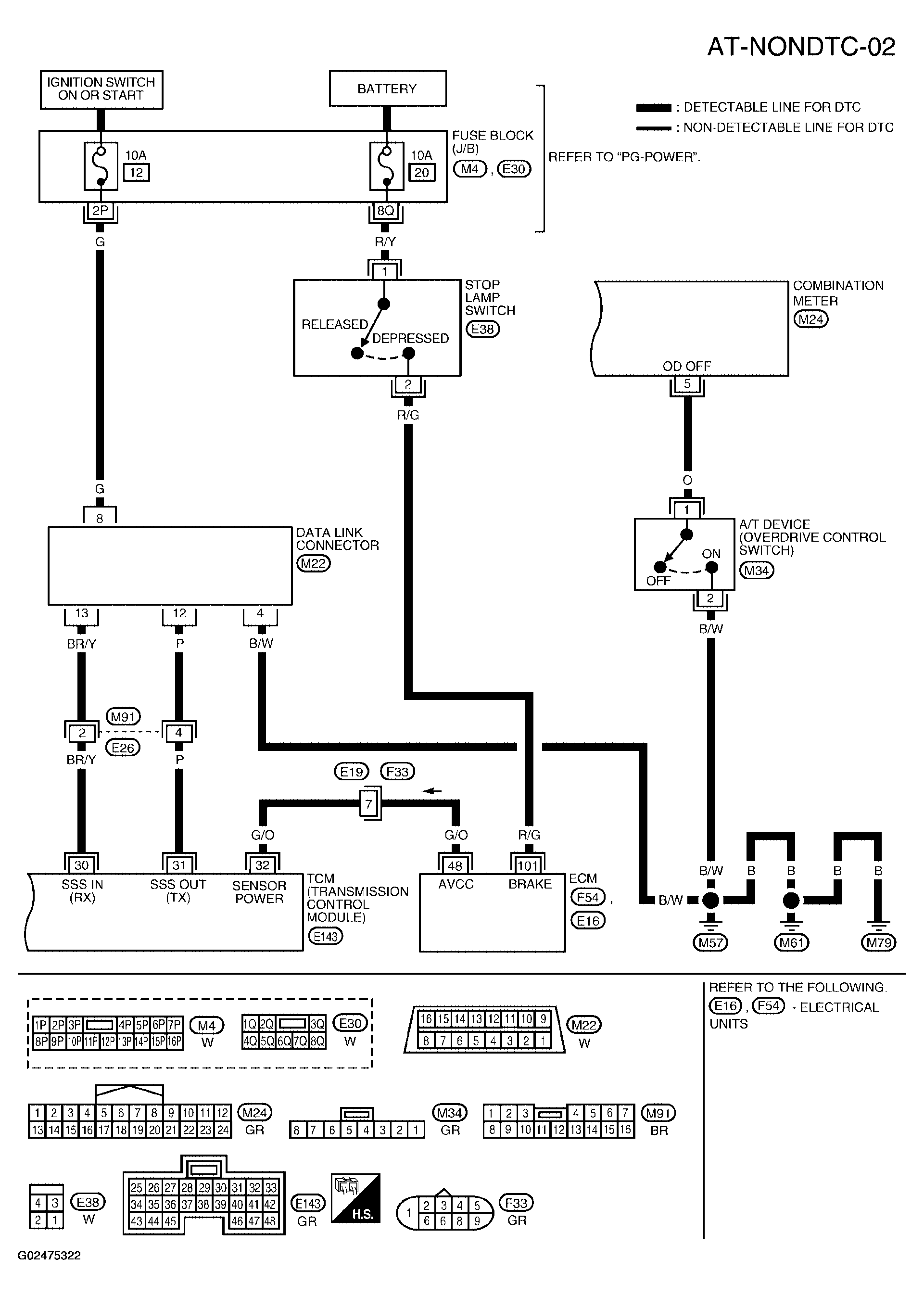

Fig 3: Wiring Diagram - AT-NONDTC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)

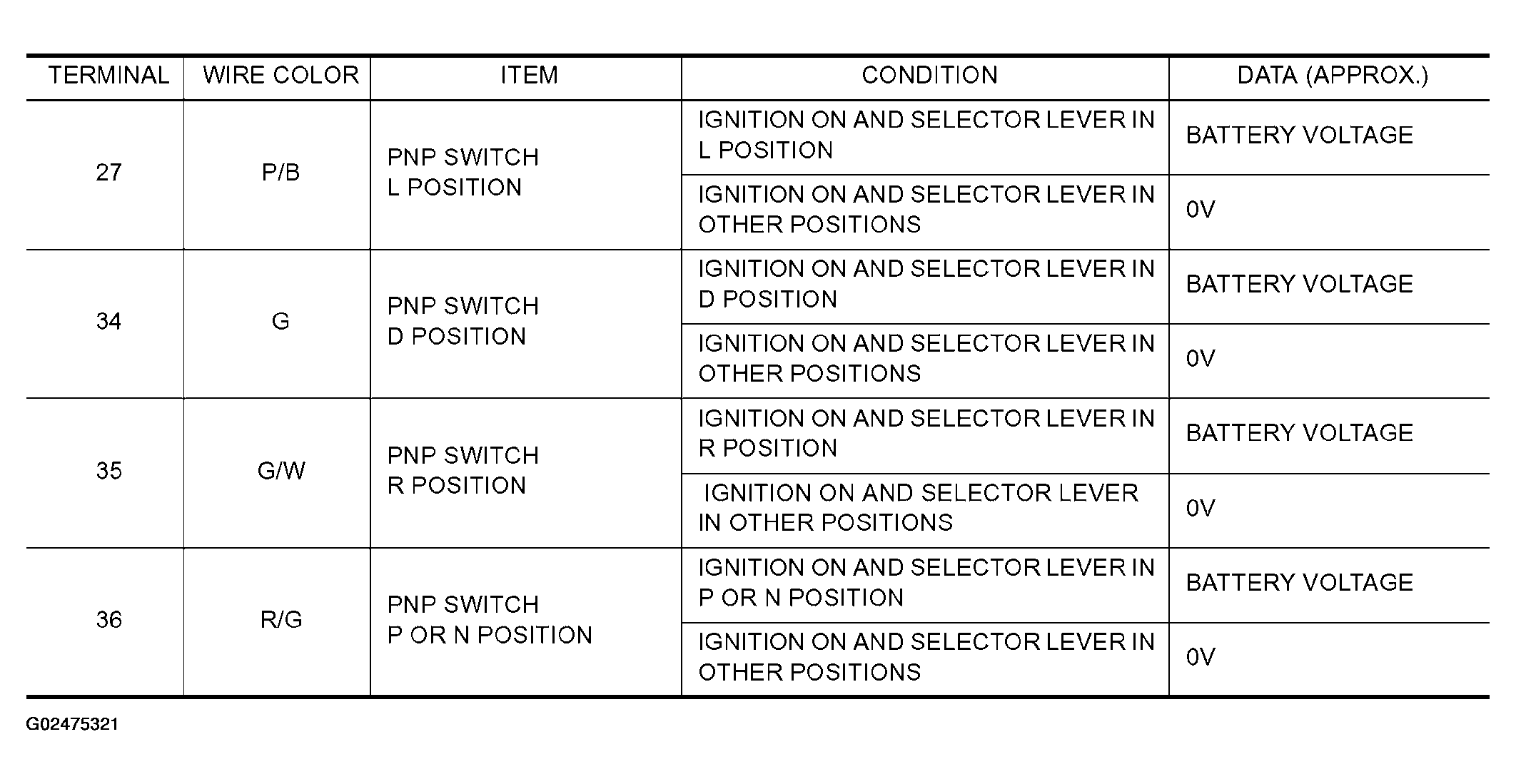

Fig 4: Connector Terminal Voltage Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
