Vehicle Does Not Start From D1

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle does not start from D1 on Cruise test - Part 2.

CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor.A/T (revolution sensor), shift solenoid valve A, B or vehicle speed Sensor MTR after cruise test?

Yes or No
- Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR) ", "DTC P0750 SHIFT SOLENOID VALVE A ", "DTC P0755 SHIFT SOLENOID VALVE B " or "DTC VEHICLE SPEED SENSOR MTR ".
- No: GO TO 2.

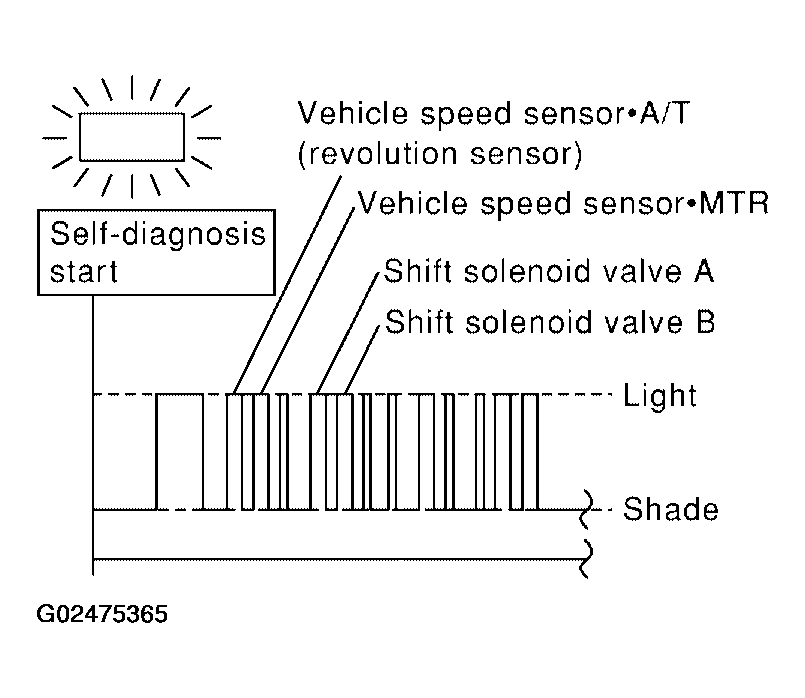

  Fig 1: Checking Self-Diagnostic Results (Vehicle Does Not Start)
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SYMPTOM
Check again.

OK or NG
- OK: Go to "VEHICLE CANNOT BE STARTED FROM D1 ".
- NG: GO TO 3.
CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
- OK: INSPECTION END
- NG: Repair or replace damaged parts.
