In P Position, Vehicle Moves Forward or Backward When Pushed

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle moves when it is pushed forward or backward with selector lever in P position.

  1. ADJUST CONTROL CABLE

    Check control cable. Refer to "CONTROL CABLE ADJUSTMENT "

    OK or NG

    • OK: GO TO 2.
    • NG: Adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".

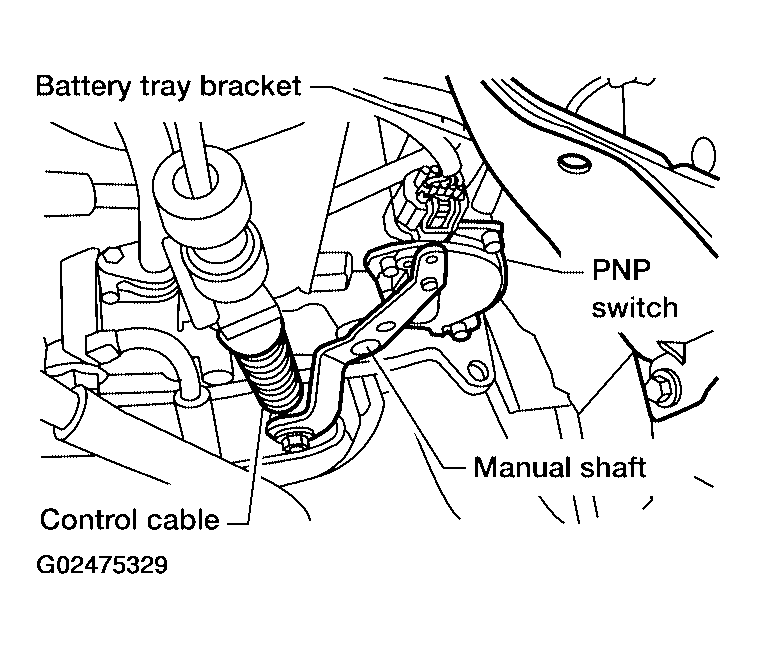

      Fig 1: Adjusting Control Cable Position P
      G02475329Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK PARKING COMPONENTS

    Check parking components. Refer to "OVERHAUL " and "DISASSEMBLY ".

    OK or NG

    • OK: INSPECTION END
    • NG: Repair or replace damaged parts.

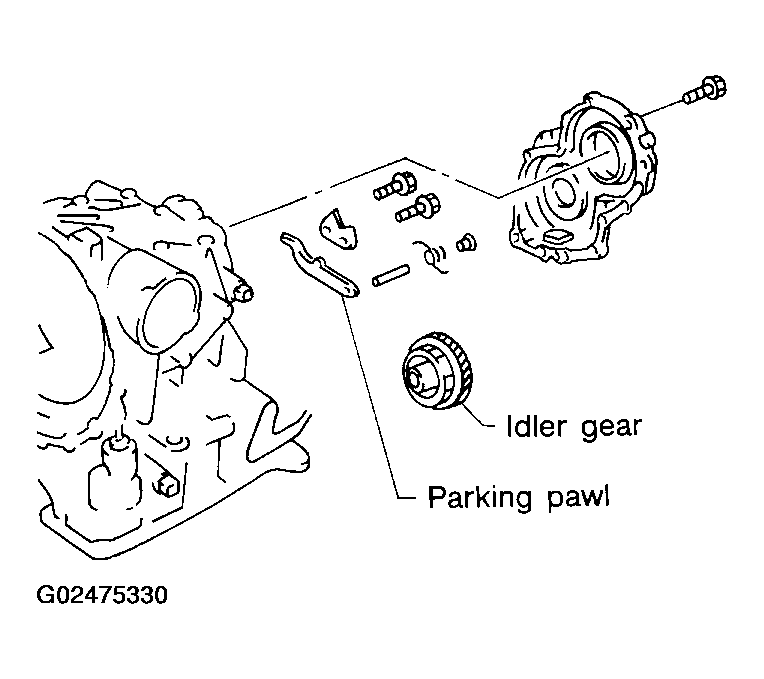

      Fig 2: Replacing Parking Components
      G02475330Courtesy of NISSAN MOTOR CO., U.S.A.
