TCM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference value and are measured between each terminal and ground.

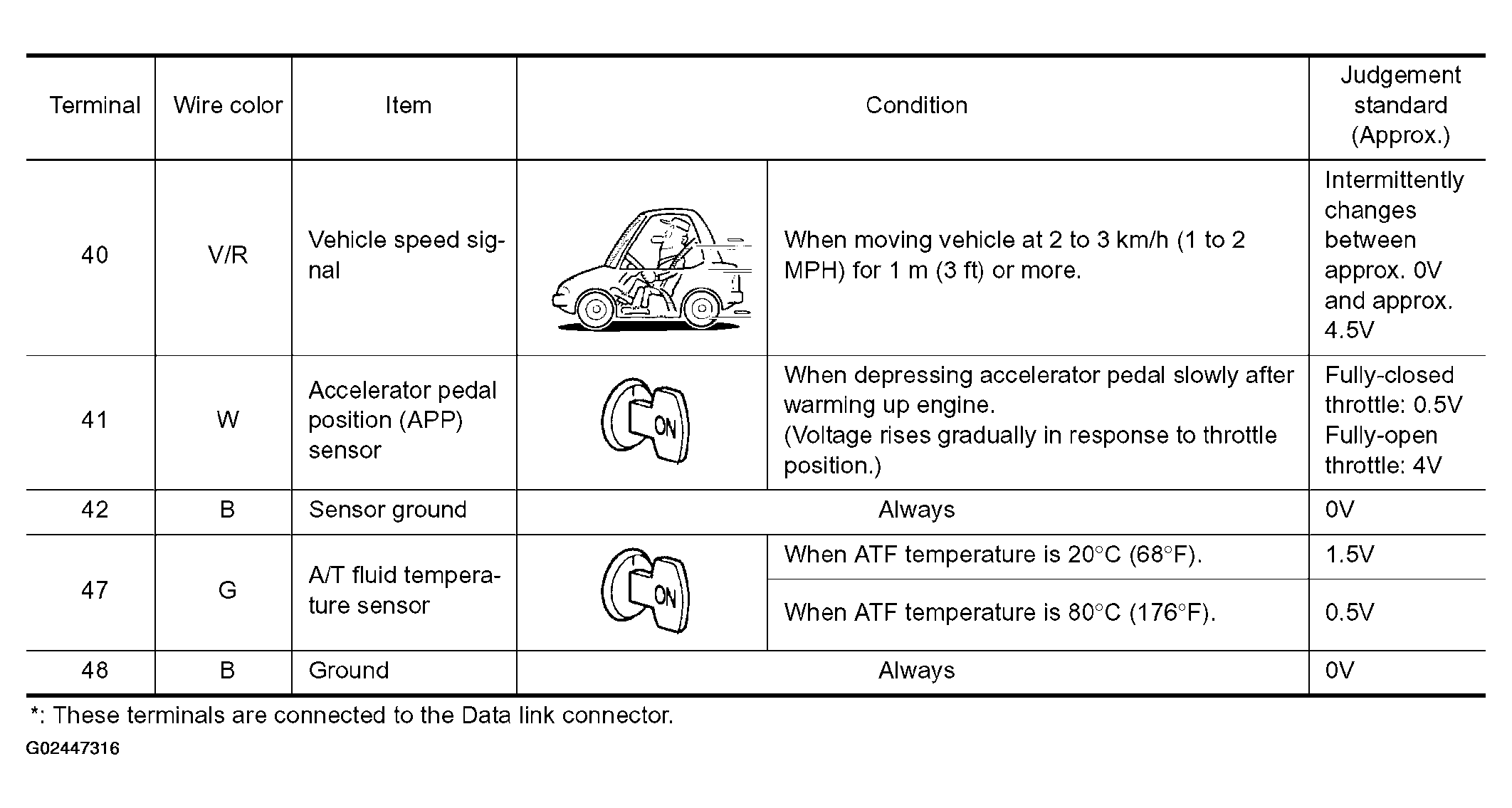

Fig 1: TCM Inspection Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

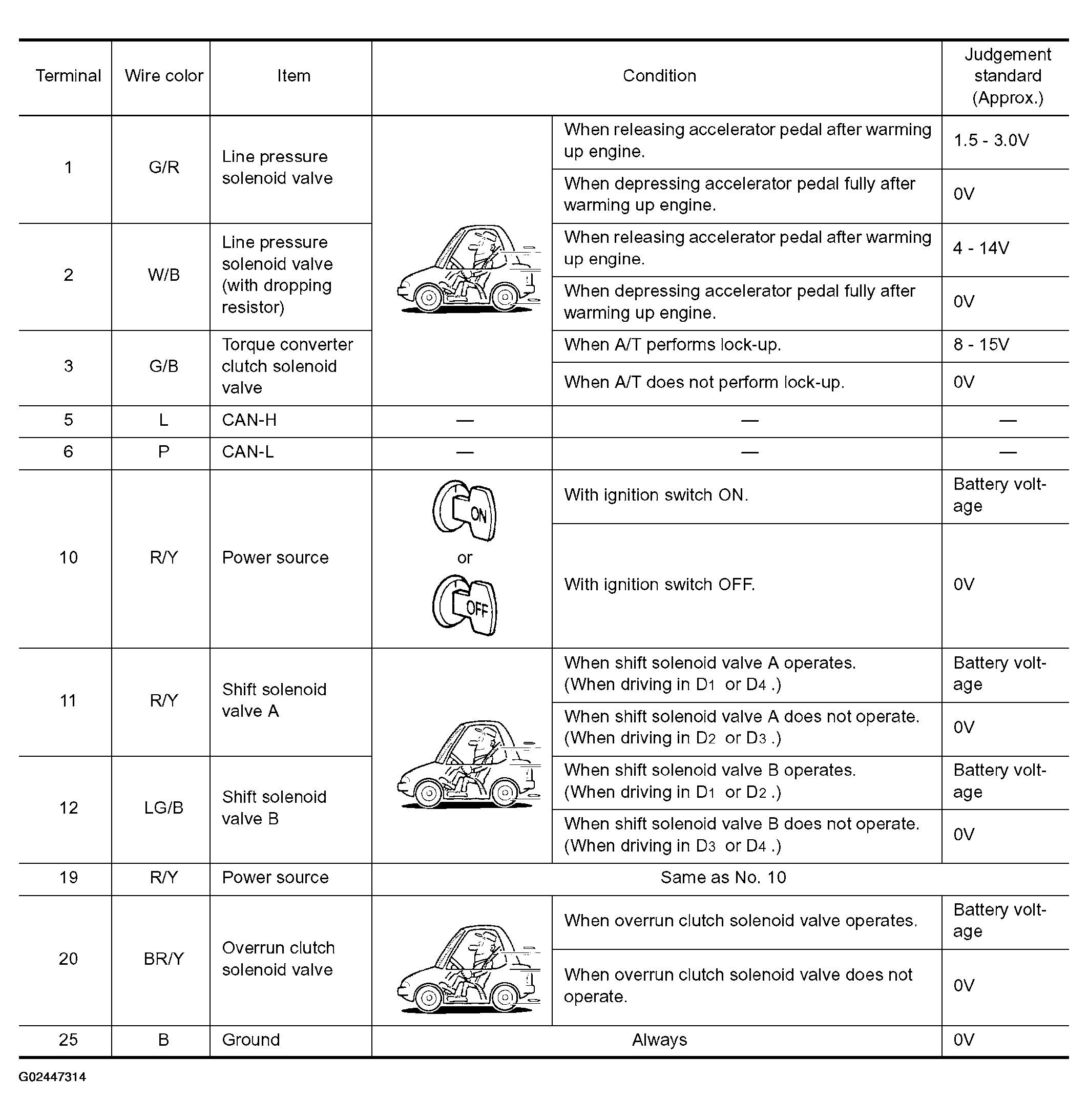

Fig 2: TCM Inspection Table (2 Of 3

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: TCM Inspection Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
