Cruise Test - Part 2

1. Confirm overdrive control switch is in ON position.
2. Confirm gear selector lever is in D position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D1?

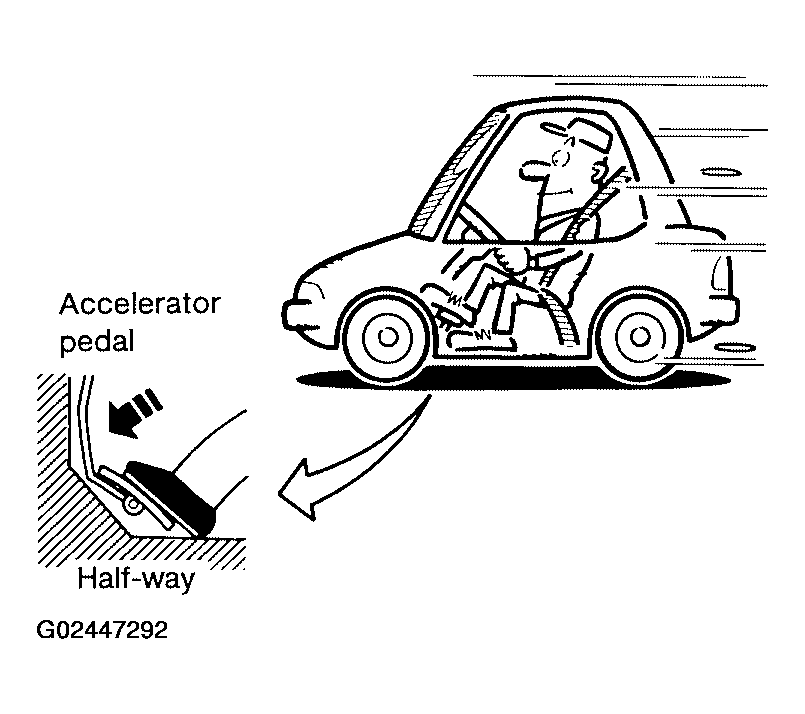

   Fig 1: Checking Starting Gear (D1) Position

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Read gear position.

Yes or NO

• Yes: GO TO 2.
• NO: Mark the box of "Vehicle Does Not Start From D1" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D4 to D2 as soon as accelerator pedal is depressed fully?

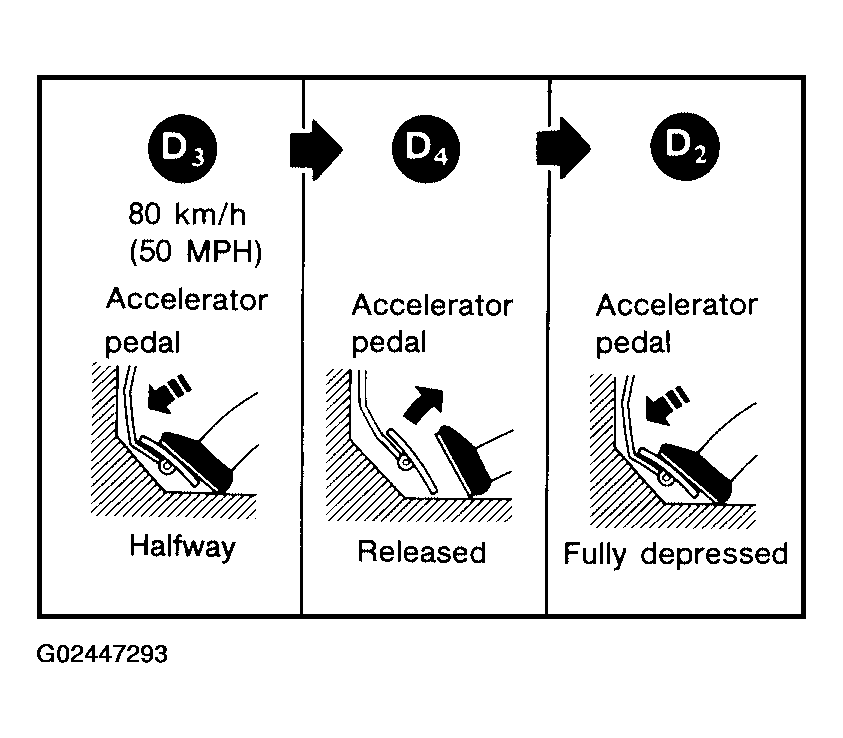

   Fig 2: Checking Shift Up And Shift Down (D3 To D4 To D2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Read gear position and throttle opening.

Yes or NO

• Yes: GO TO 3.
• NO: Mark the box of "A/T Does Not Shift: D1 --> D2 or Does Not Kickdown: D4 --> D2" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

Does A/T shift from D2 to D3 at the specified speed?

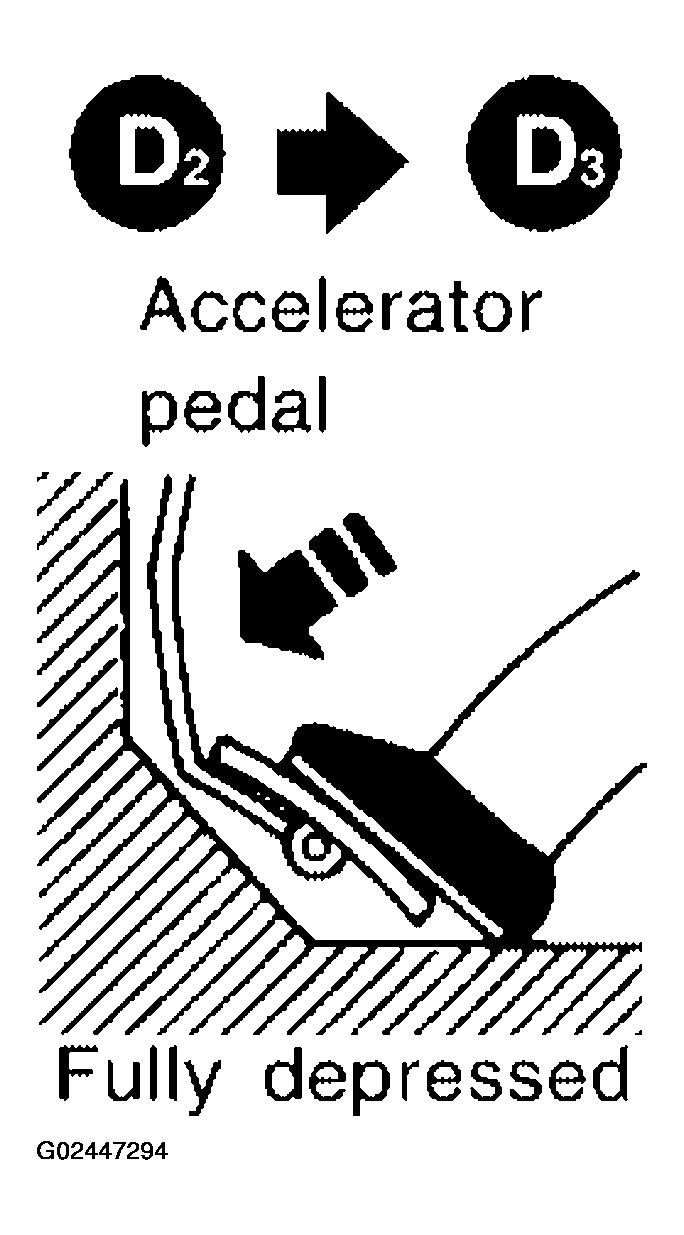

Fig 3: Checking Shift Up (D2 To D3)

Courtesy of NISSAN MOTOR CO., U.S.A.

• Read gear position, throttle opening and vehicle speed.
  • Specified speed when shifting from D2 to D3: Refer to " SHIFT SCHEDULE  ".

Yes or NO

• Yes: GO TO 4.
• NO: Mark the box of "A/T Does Not Shift: D2 --> D3" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

Release accelerator pedal after shifting from D2 to D3. Does A/T shift from D3 to D4 and does vehicle decelerate by engine brake?

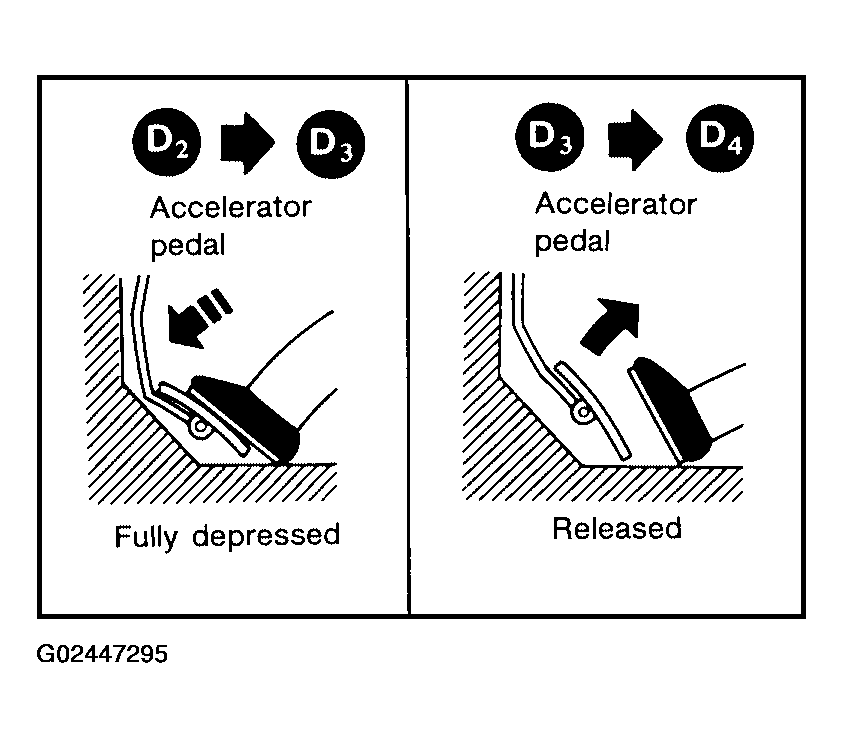

Fig 4: Checking Shift Up (D3 To D4) & Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

• Read gear position, throttle opening and vehicle speed.

Yes or NO

• Yes:
  1. Stop vehicle.
  2. Go to "CRUISE TEST - PART 3 ".
• NO: Mark the box of "A/T Does Not Shift: D3 --> D4" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.
