CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in left side dash panel.

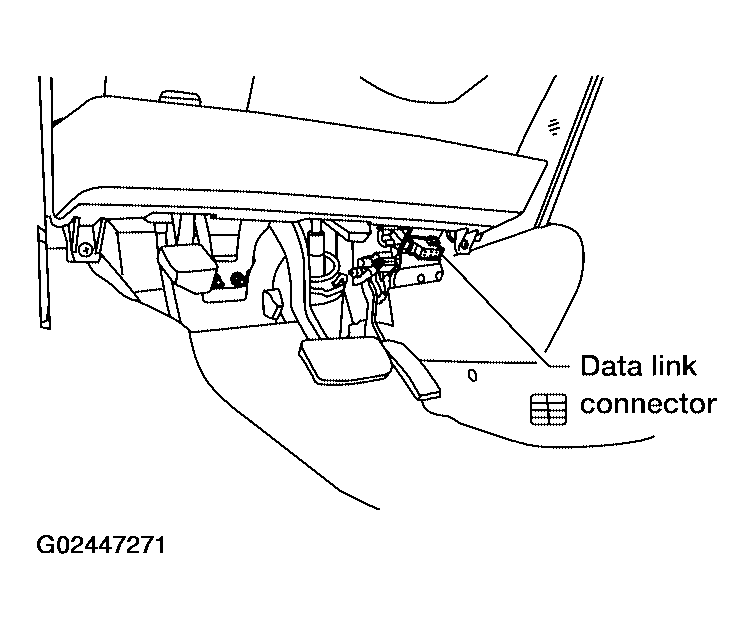

    Fig 1: Identifying Data Link Connector
    G02447271Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".

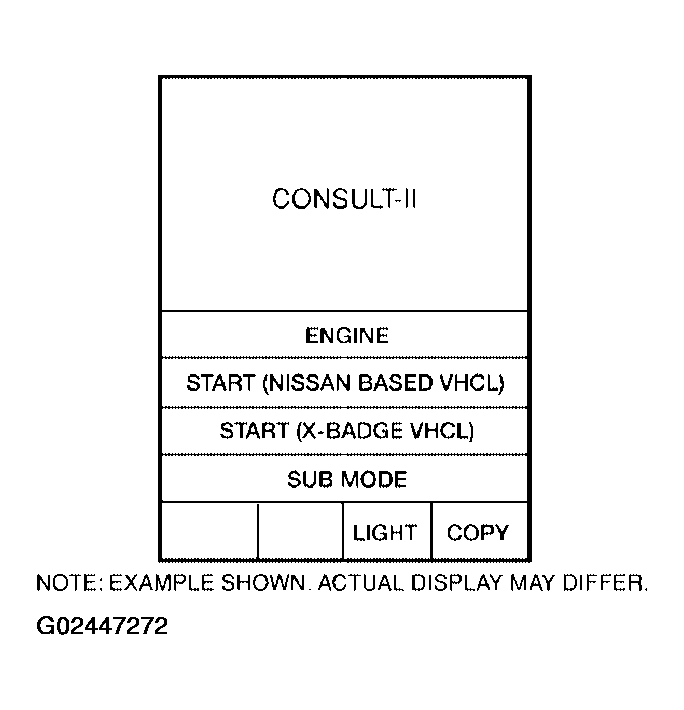

    Fig 2: Consult-II - START (NISSAN BASED VHCL Display
    G02447272Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

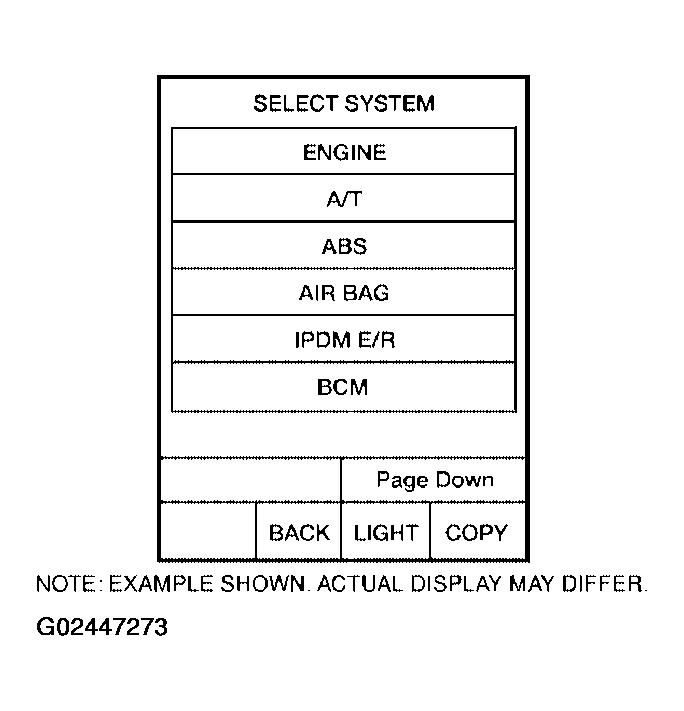

    Fig 3: Consult-II - (SELECT SYSTEM) Display
    G02447273Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

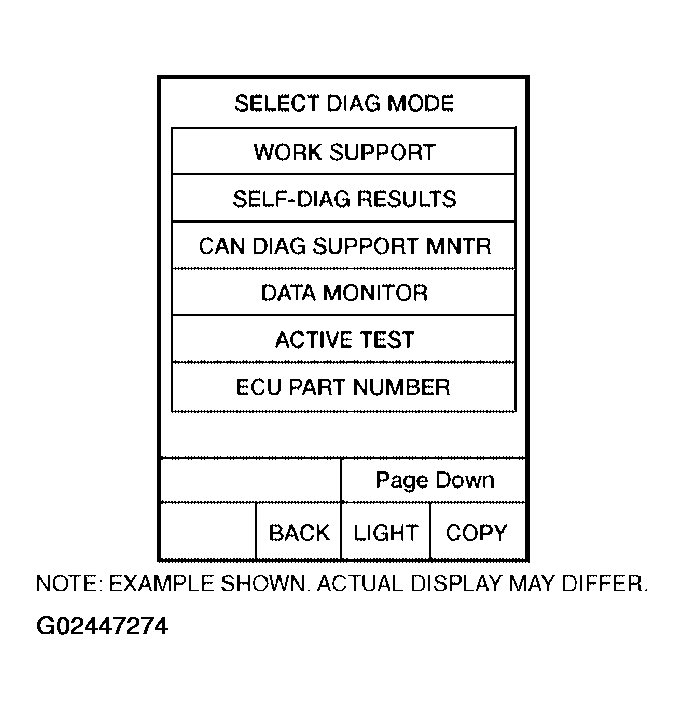

    Fig 4: Consult-II - SELECT DIAG MODE Display
    G02447274Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".

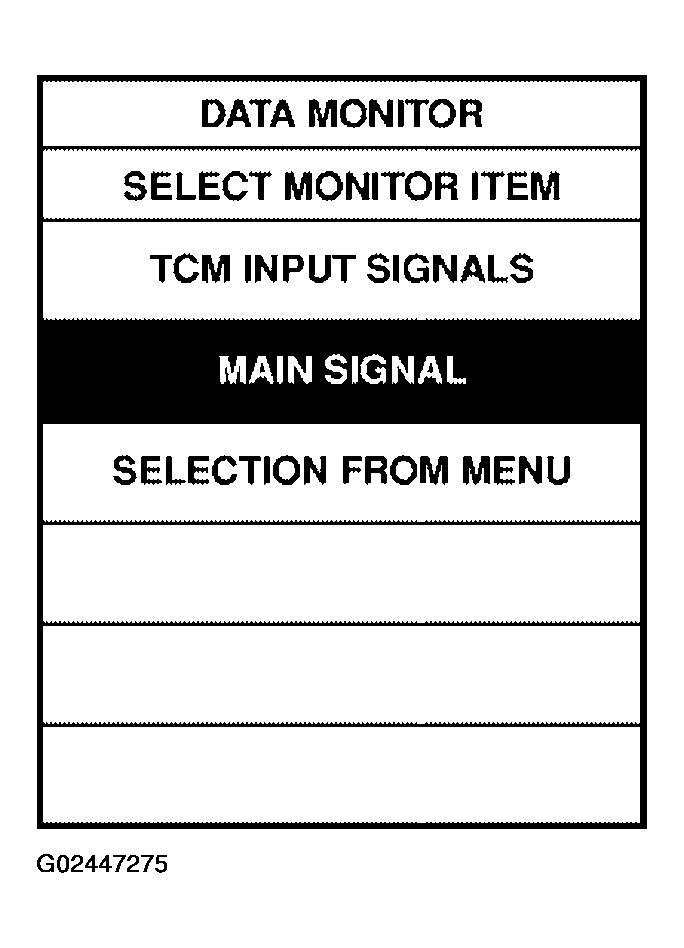

    Fig 5: Consult-II - (Main Signals) Display
    G02447275Courtesy of NISSAN MOTOR CO., U.S.A.
  8. See "Numerical Display", "Barchart Display" or "Graph Display".
  9. Touch "SETTING" to set recording condition "AUTO TRIG" or "MANU TRIG" and touch "BACK".
  10. Touch "Start".

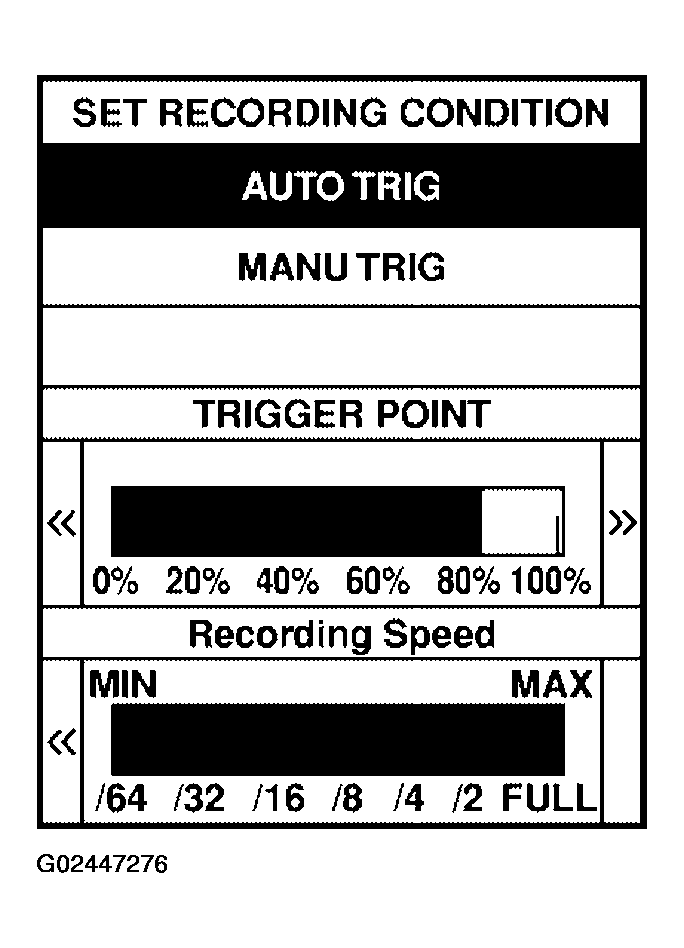

    Fig 6: Consult-II - AUTO TRIG Display
    G02447276Courtesy of NISSAN MOTOR CO., U.S.A.
  11. When performing cruise test, touch "RECORD".

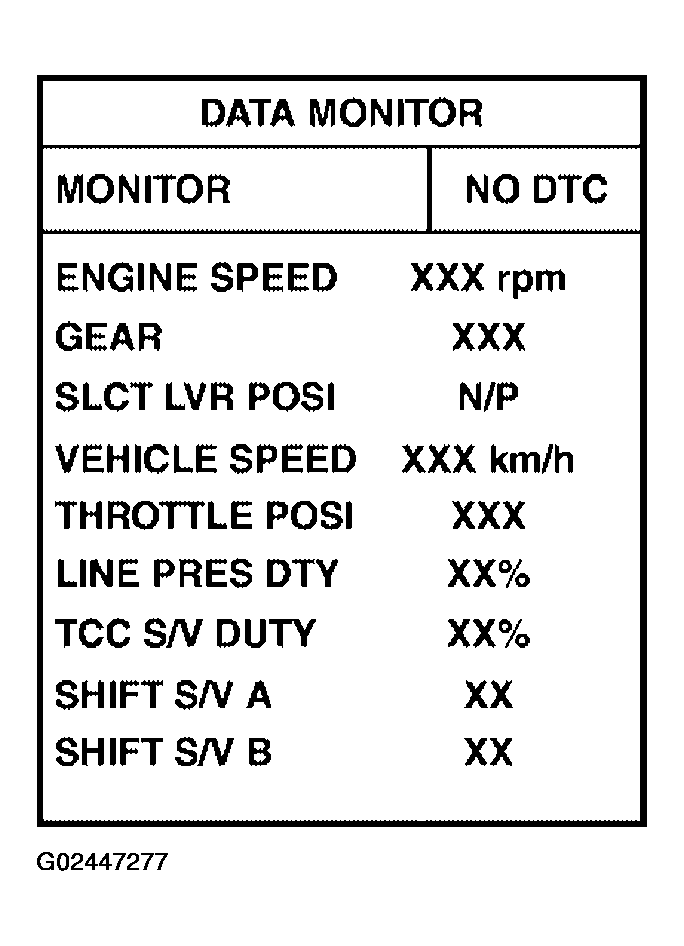

    Fig 7: Consult-II - DATA MONITOR Display
    G02447277Courtesy of NISSAN MOTOR CO., U.S.A.
  12. After finishing cruise test part 1, touch "STOP".

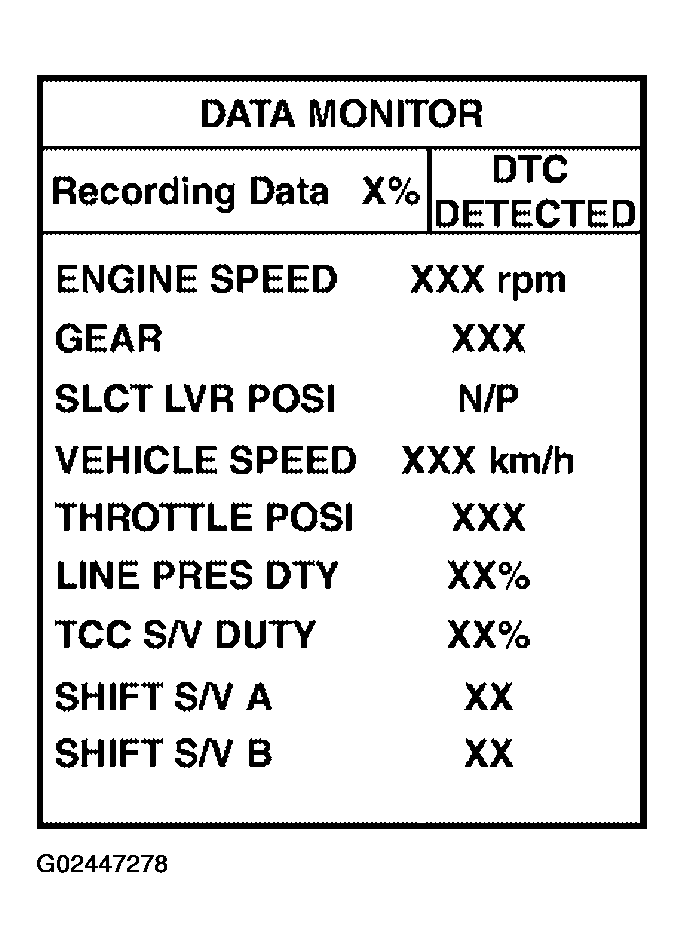

    Fig 8: Consult-II - DATA MONITOR Display
    G02447278Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Touch "STORE" and touch "BACK".

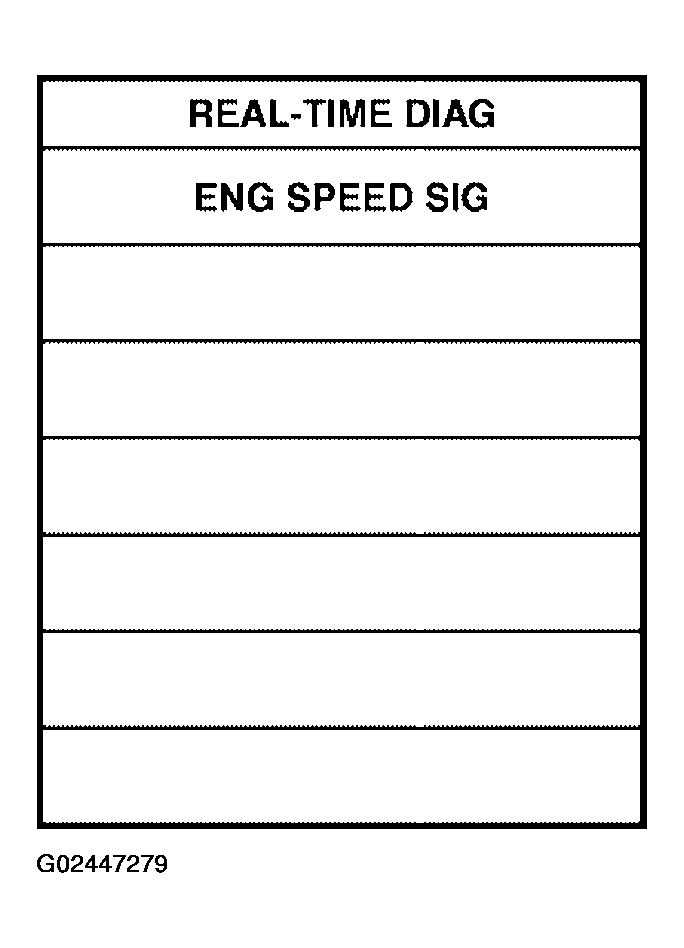

    Fig 9: Consult-II - REAL TIME DIAG Display
    G02447279Courtesy of NISSAN MOTOR CO., U.S.A.

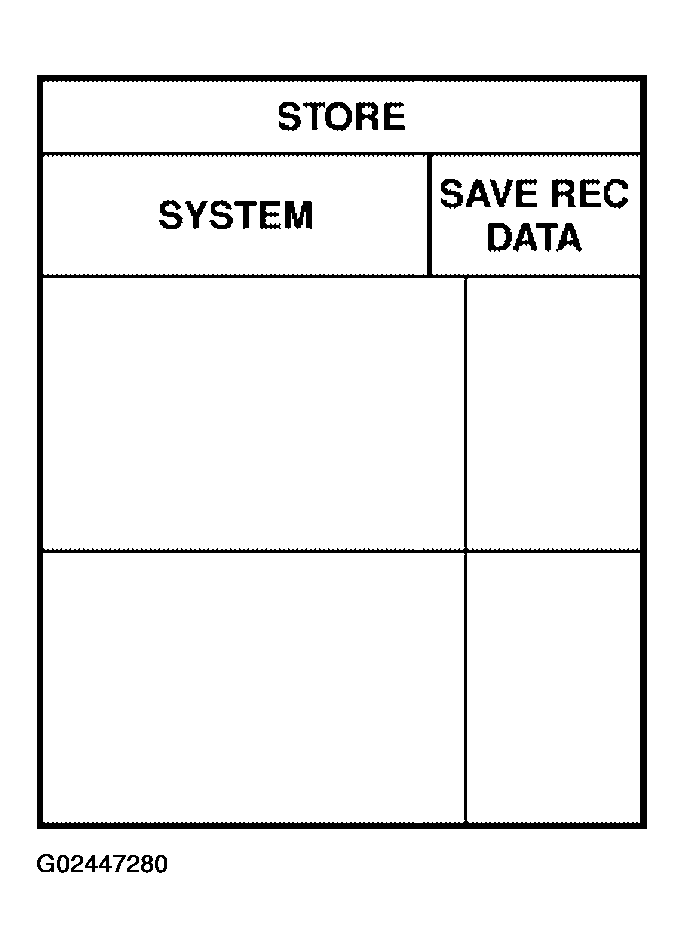

    Fig 10: Consult-II - STORE Display
    G02447280Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "DISPLAY".
  15. Touch "PRINT".
  16. Check the monitor data printed out.

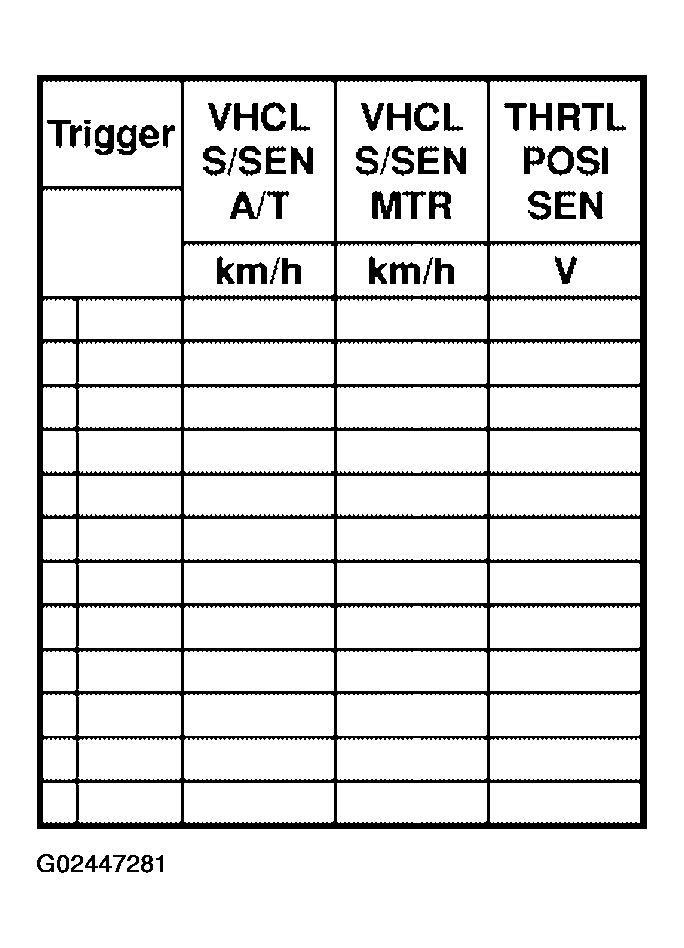

    Fig 11: Consult-II - (Print) Display
    G02447281Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Continue cruise test part 2 and 3.
