Home >> Nissan-Datsun >> 2003 >> Sentra Limited >> Repair and Diagnosis >> External Pages >> Different car >> Section 1517 (Automatic Transmission (Re4F04W)) >> Service Data And Specifications (SDS) >> Total End Play >> Bearing Race For Adjusting Total End Play

Bearing Race For Adjusting Total End Play

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

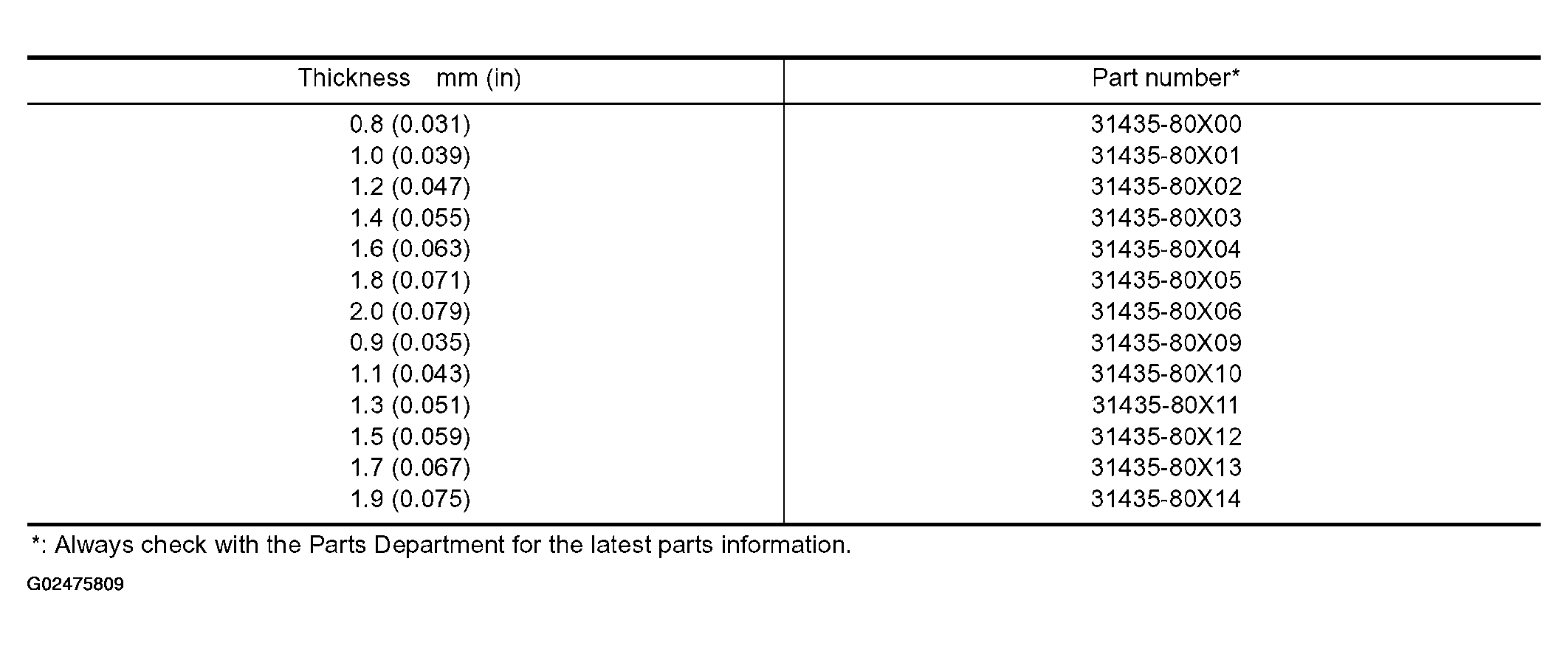

Fig 1: Total End Play Specifications Chart
G02475809Courtesy of NISSAN MOTOR CO., U.S.A.
