Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer: Components

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

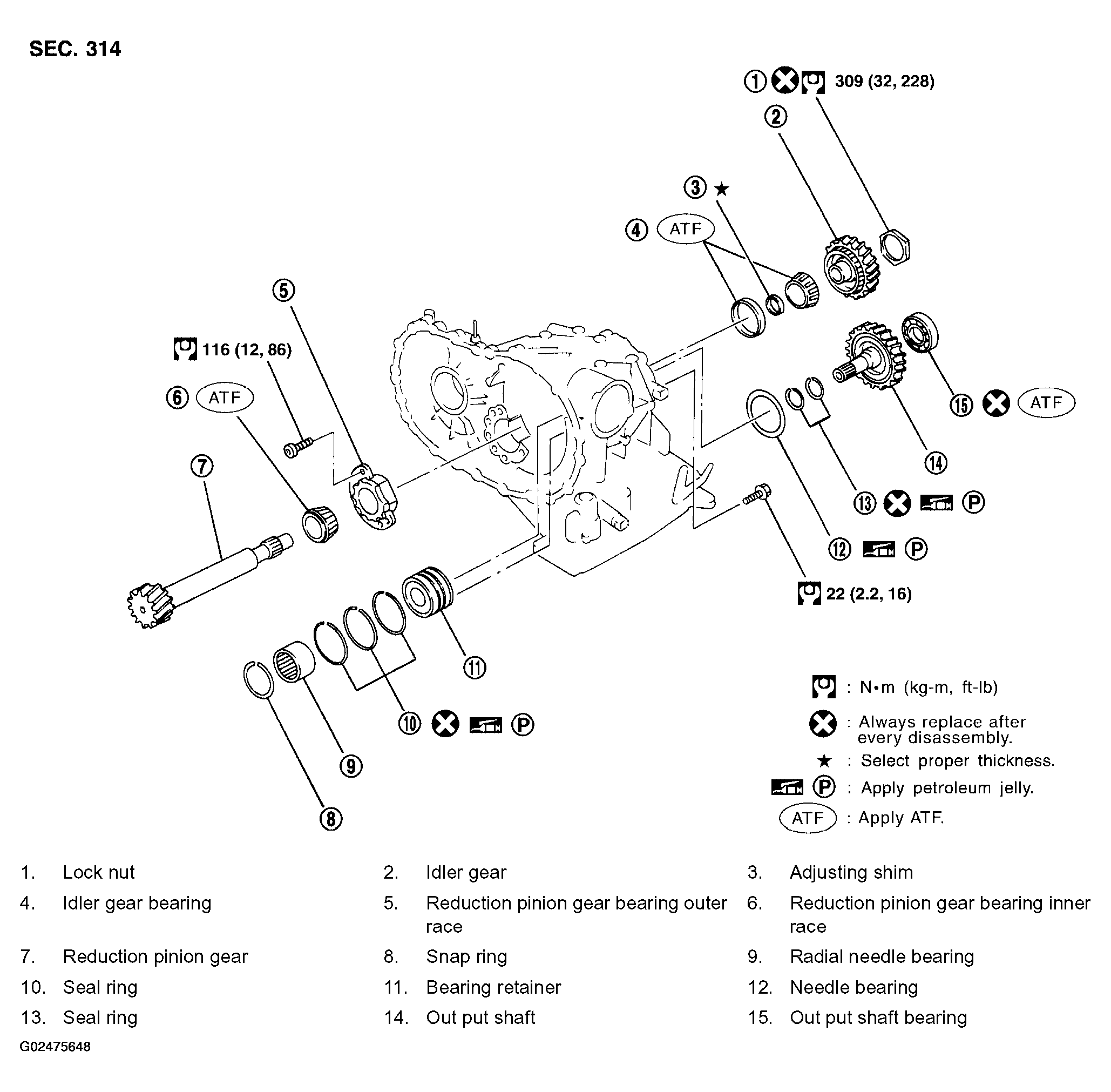

Fig 1: Output Shaft, Idler Gear, Reduction Pinion Gear & Bearing Retainer Replacement Components - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
