Manual Shaft: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove detent spring from transaxle case.

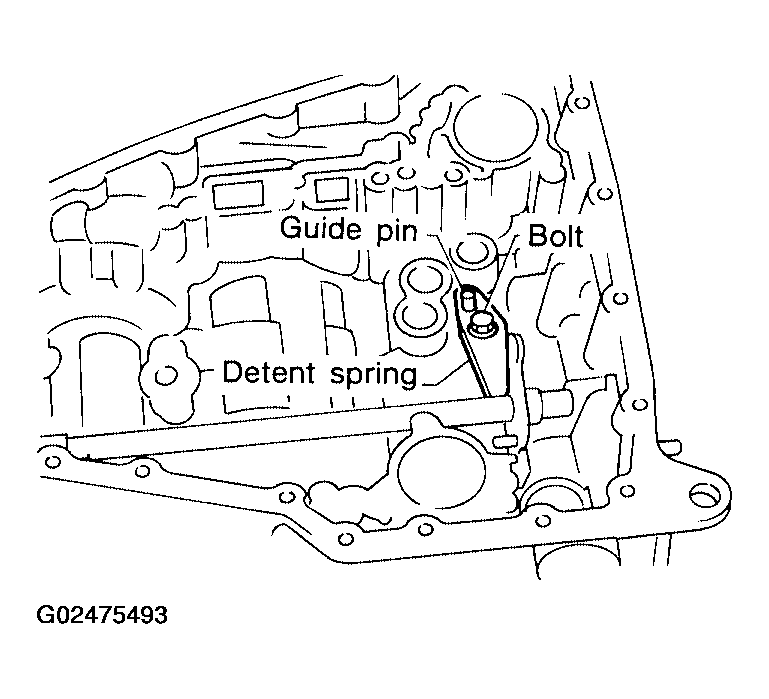

    Fig 1: Removing Detent Spring From Transaxle Case
    G02475493Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.

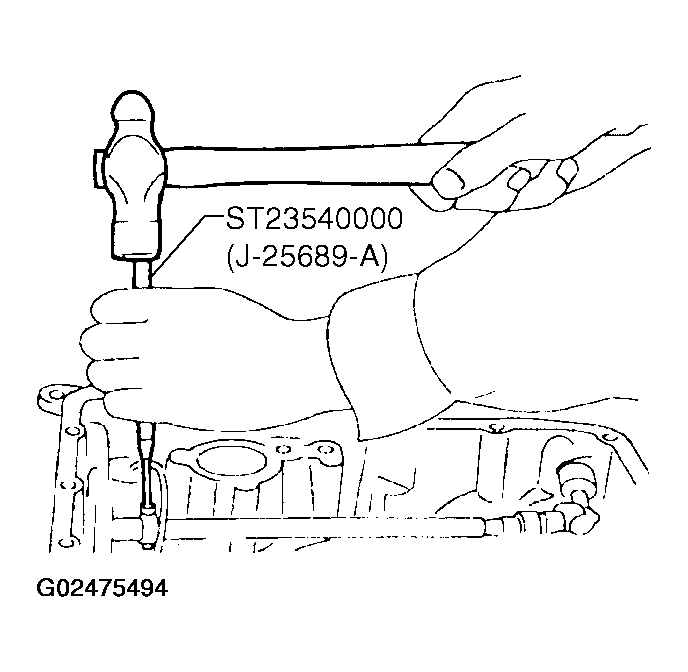

    Fig 2: Removing Manual Plate Retaining Pin
    G02475494Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.

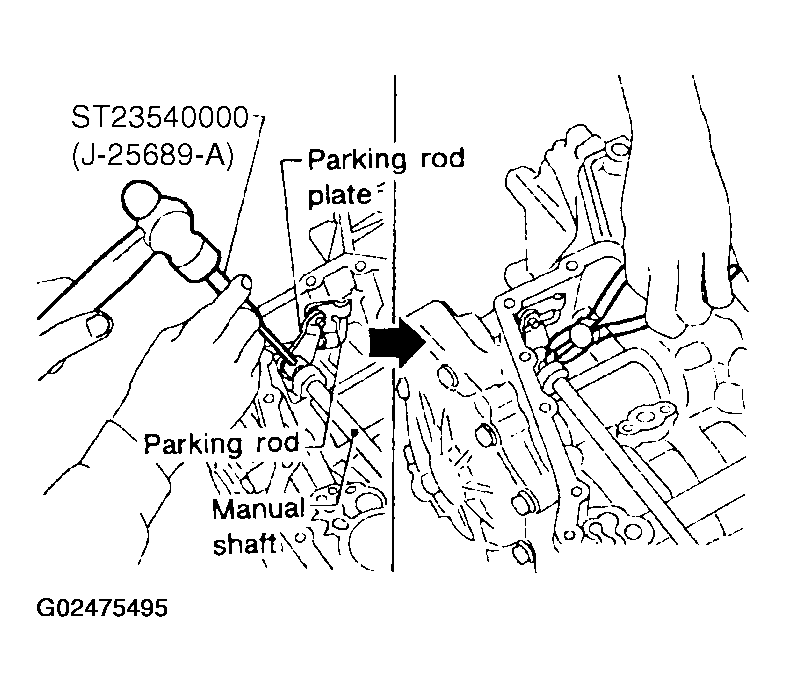

    Fig 3: Removing Parking Rod Plate From Manual Shaft
    G02475495Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Draw out parking rod from transaxle case.
  6. Pull out manual shaft retaining pin.

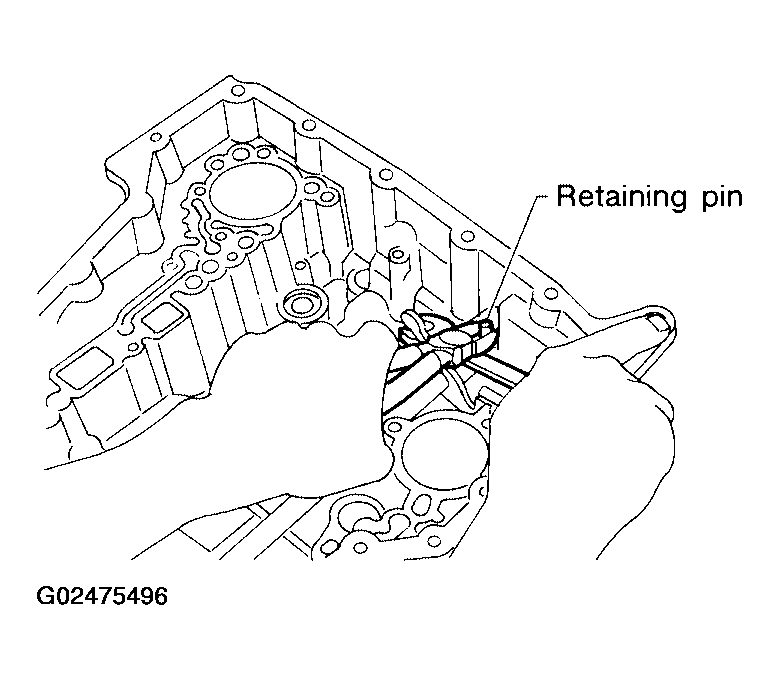

    Fig 4: Removing Retaining Pin
    G02475496Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove manual shaft and manual plate from transaxle case.
  8. Remove manual shaft oil seal.
    CAUTION: Be careful not to scratch transaxle case.

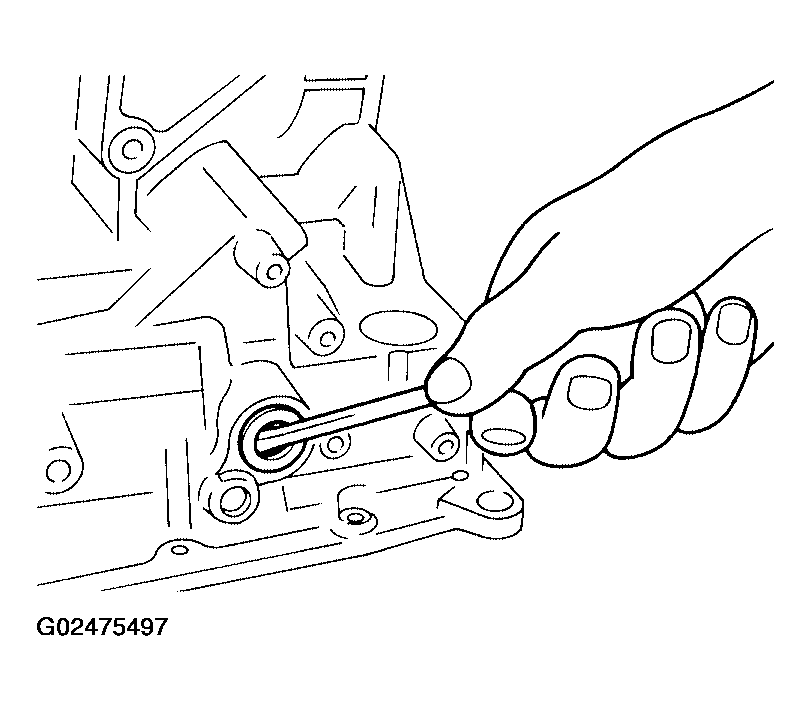

    Fig 5: Removing Oil Seal
    G02475497Courtesy of NISSAN MOTOR CO., U.S.A.
