Manual Shaft: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install manual shaft oil seal.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to outer surface of oil seal.

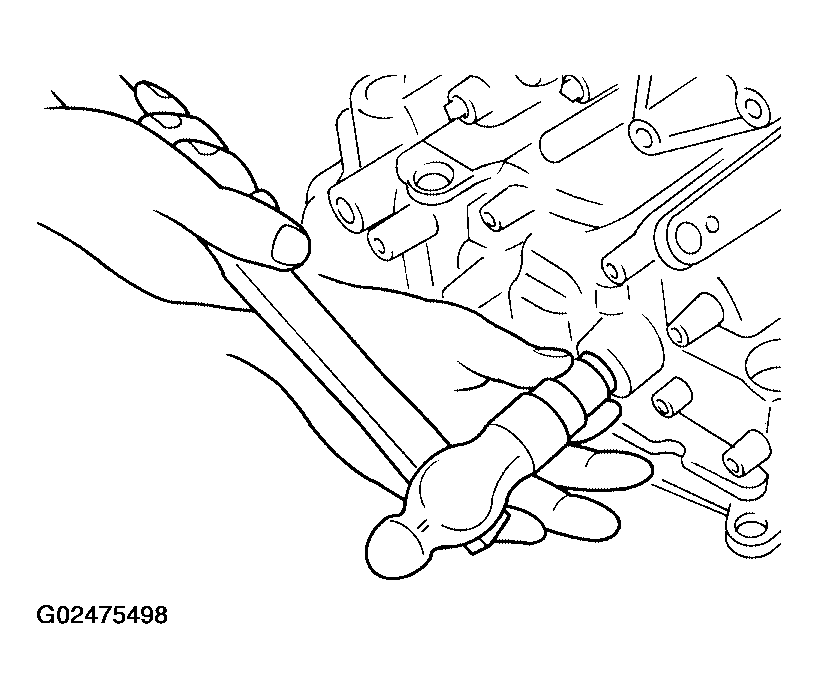

  Fig 1: Installing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install manual shaft and manual plate.

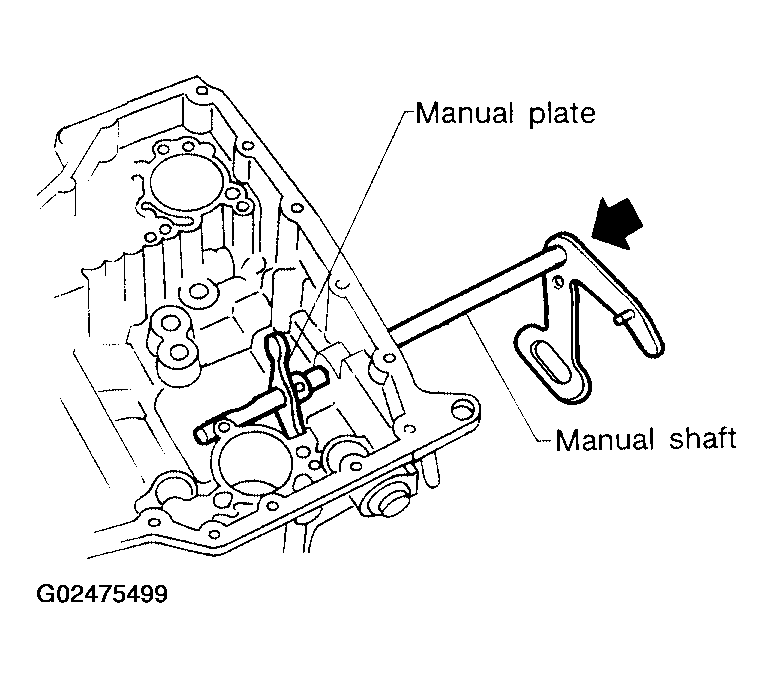

Fig 2: Installing Manual Shaft & Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Align groove of manual shaft and hole of transaxle case.
Install manual shaft retaining pin up to bottom of hole.

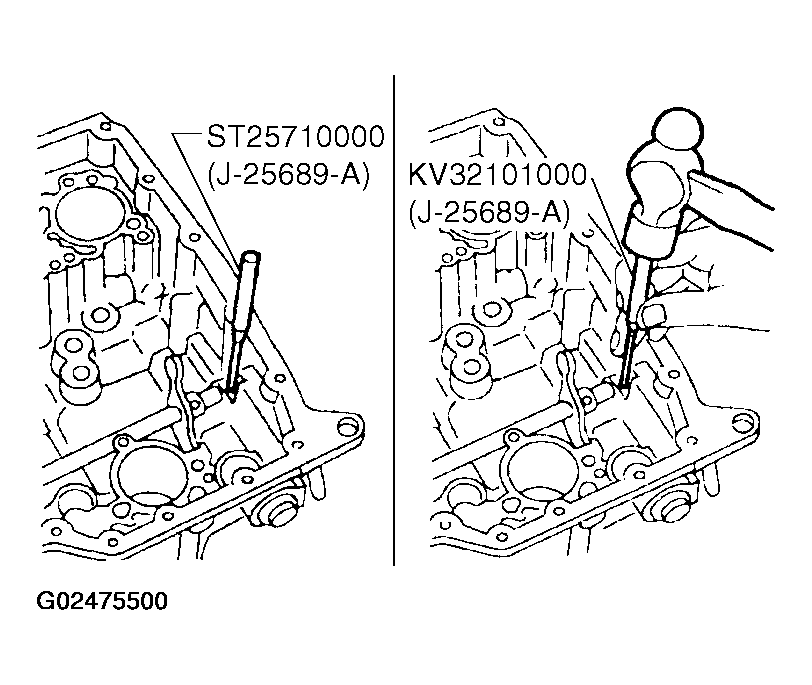

Fig 3: Installing Manual Shaft Retaining Pin Up To Bottom Of Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking rod to parking rod plate.

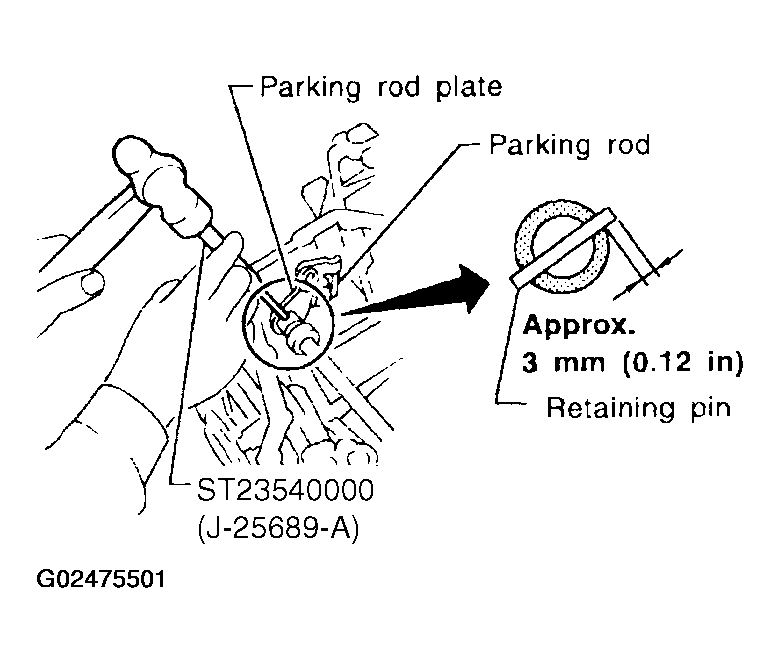

Fig 4: Installing Parking Rod To Parking Rod Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking rod assembly onto manual shaft and drive retaining pin.
CAUTION:
- Do not reuse retaining pin.
- Both ends of pin should protrude.
Drive manual plate retaining pin.
CAUTION:
- Do not reuse retaining pin.
- Both ends of pin should protrude.

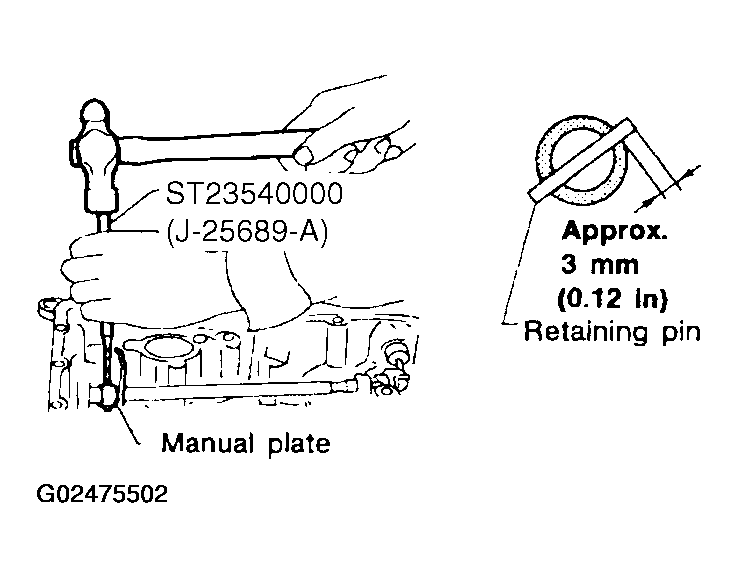

  Fig 5: Installing Manual Plate Retaining Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install detent spring. Tighten detent spring bolts to the specified torque. Refer to "COMPONENTS ".

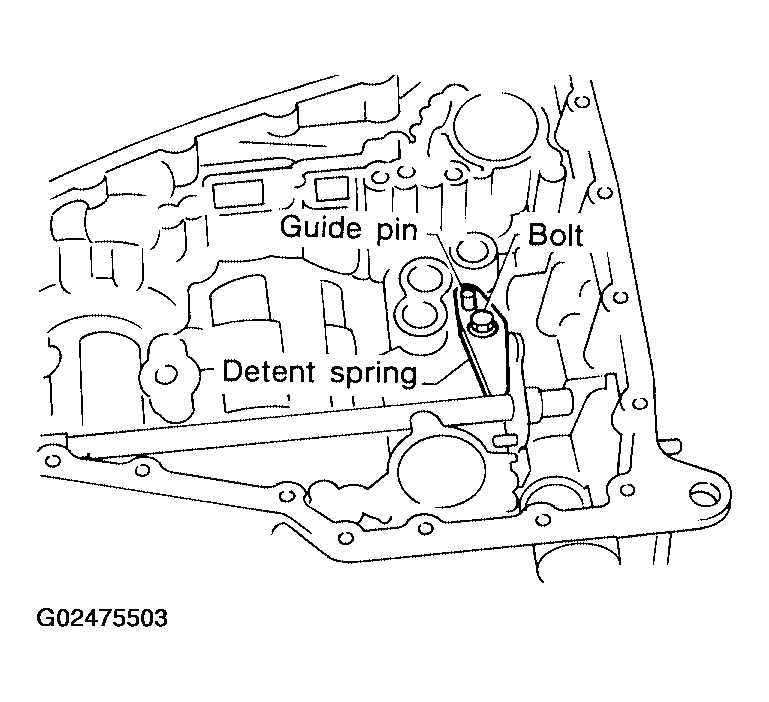

Fig 6: Installing Detent Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
