High Clutch: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install input clutch piston assembly by turning it slowly.
CAUTION: Apply ATF to inner surface of drum.

Fig 1: Installing Input Clutch Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and cancel force cover on input clutch piston.

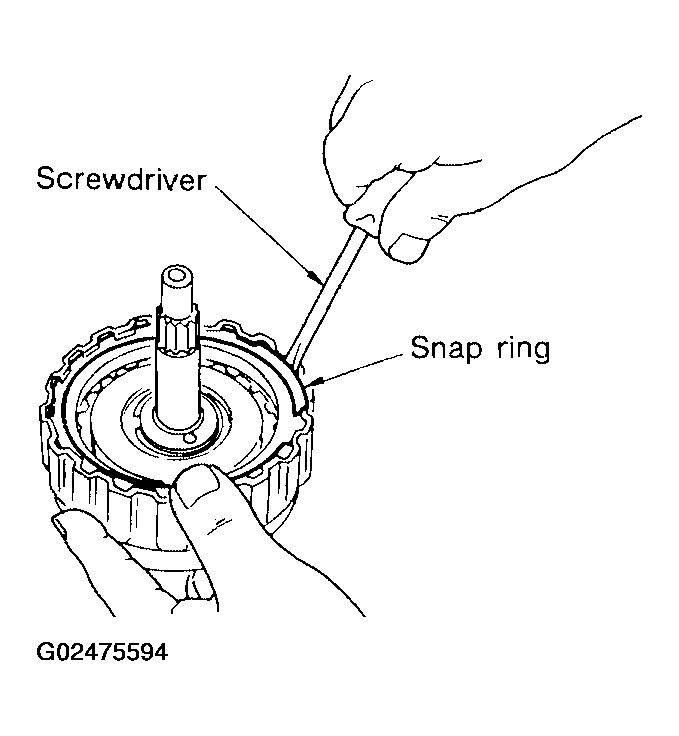

Fig 2: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

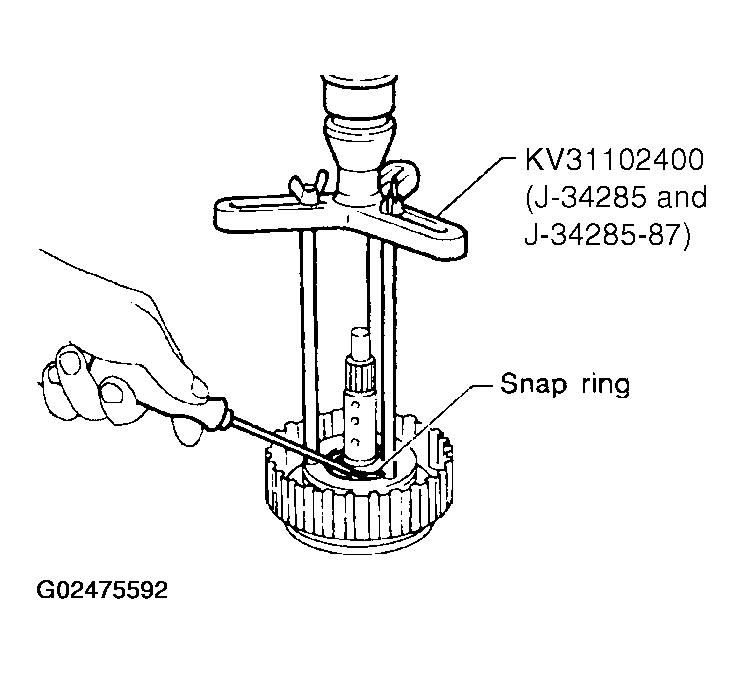

Set Tool on cancel force cover and install snap ring while slowly compressing return springs.
CAUTION:
- Set Tool directly over return springs.
- Do not expand snap ring excessively.
- Do not align snap ring gap with spring retainer stopper.

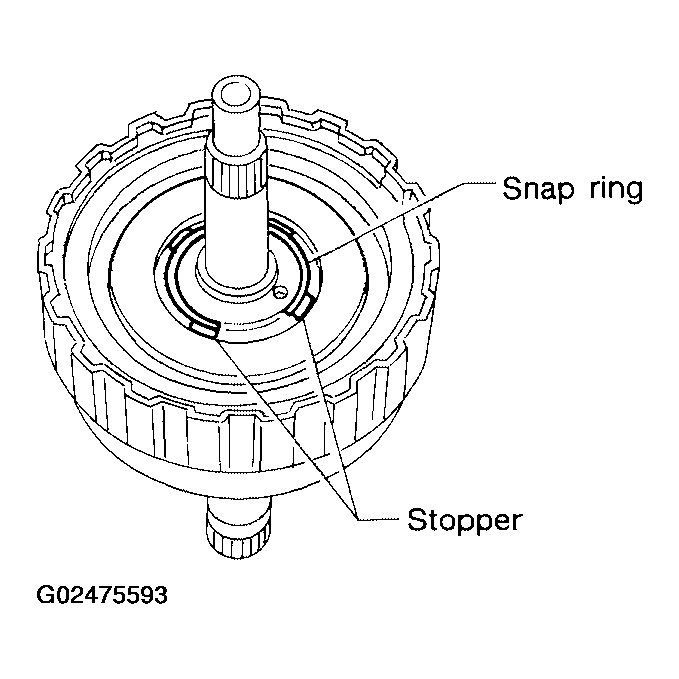

  Fig 3: Aligning Snap Ring Gap With Spring Retainer Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates and retaining plate.
CAUTION: Take care with the order and direction of plates.
Install snap ring.
CAUTION: Do not expand snap ring excessively.

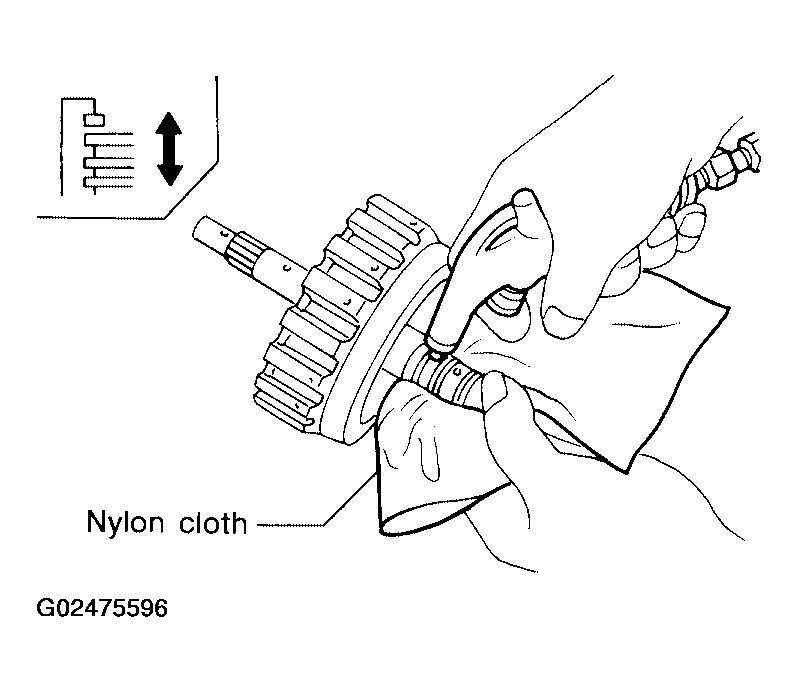

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

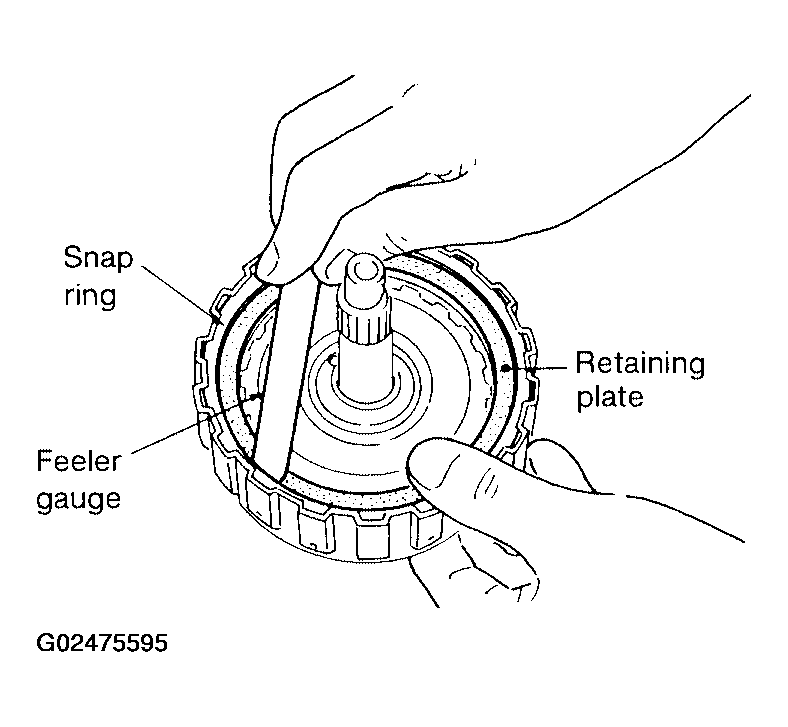

Fig 5: Measuring Clearance Between Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
- Specified clearance
- Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)
- Allowable limit: 2.8 mm (0.110 in)
- Retaining plate: Refer to " HIGH CLUTCH ".
Check operation of high clutch.

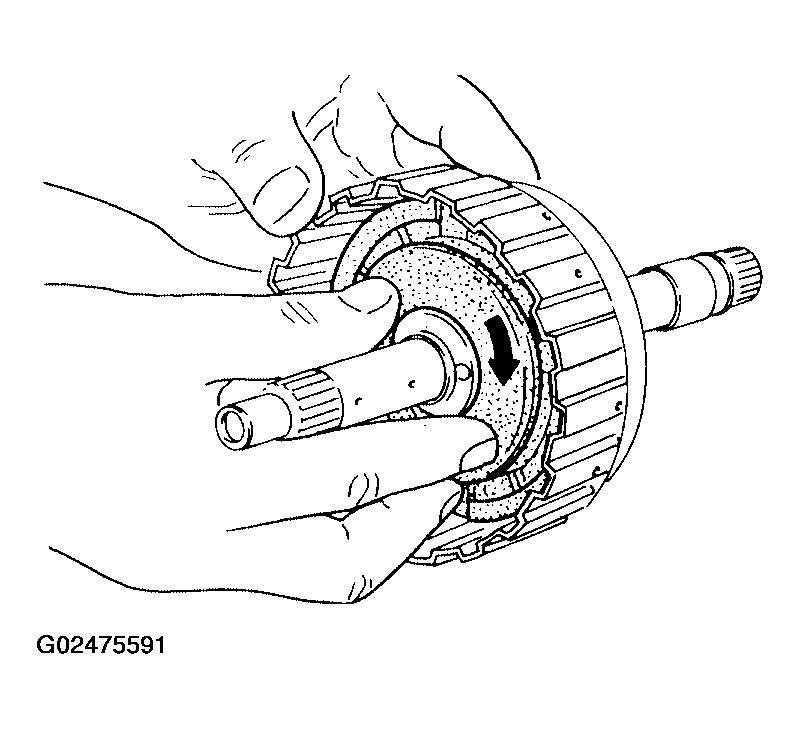

Fig 6: Checking Operation Of High Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings to input shaft.
CAUTION:
- Apply petroleum jelly to seal rings.
- Always replace when removed.

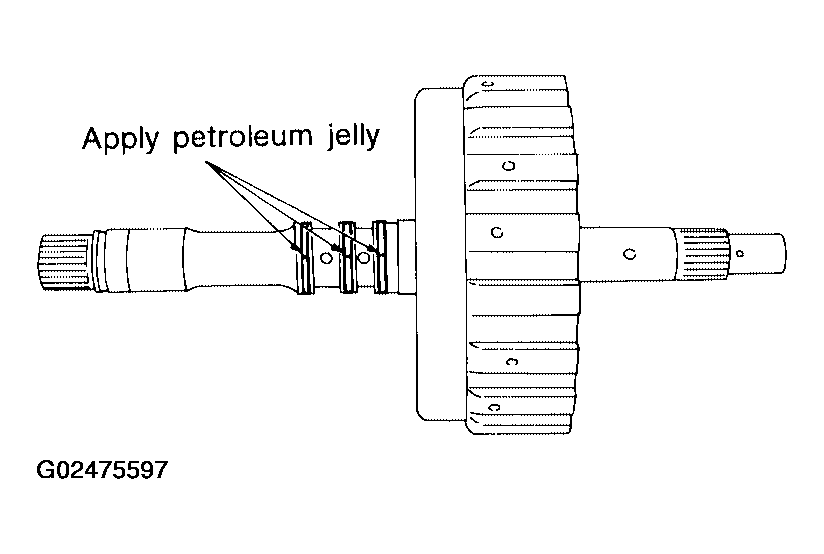

  Fig 7: Installing Seal Rings To Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Roll paper around seal rings to prevent seal rings from spreading.

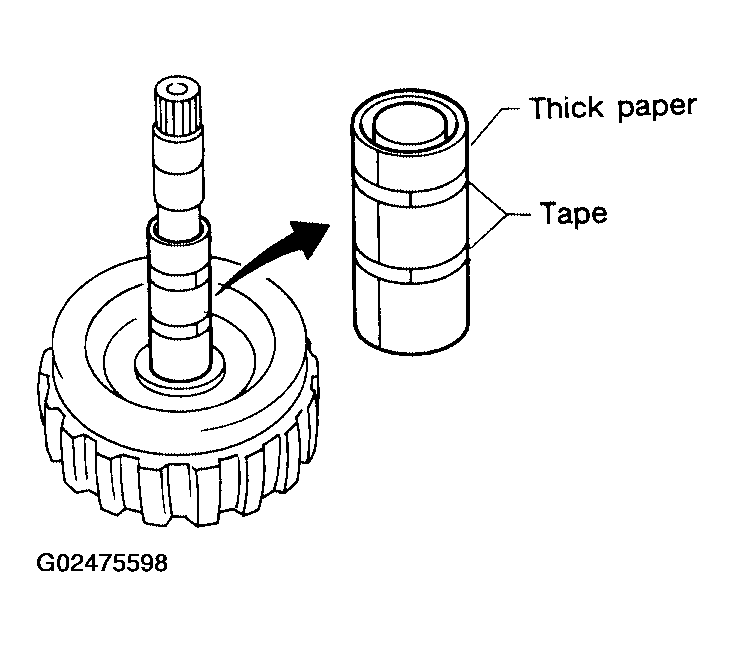

  Fig 8: Rolling Paper Around Seal Rings To Prevent Seal Rings From Spreading
  Courtesy of NISSAN MOTOR CO., U.S.A.
