Forward and Overrun Clutches: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install D-rings and seal rings on forward clutch piston and overrun clutch piston.
CAUTION:
- Do not reuse D-ring and seal ring.
- Take care with direction of seal ring.
- Apply ATF to both parts.

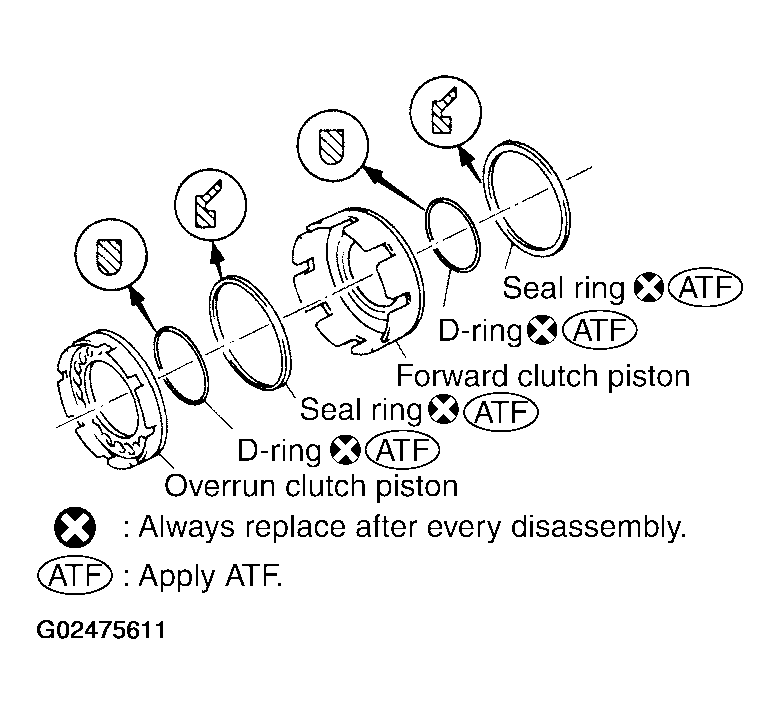

  Fig 1: Installing D-Rings And Seal Rings On Forward Clutch Piston & Overrun Clutch Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install overrun clutch piston assembly on forward clutch piston by turning it slowly.
CAUTION: Apply ATF to inner surface of forward clutch piston.

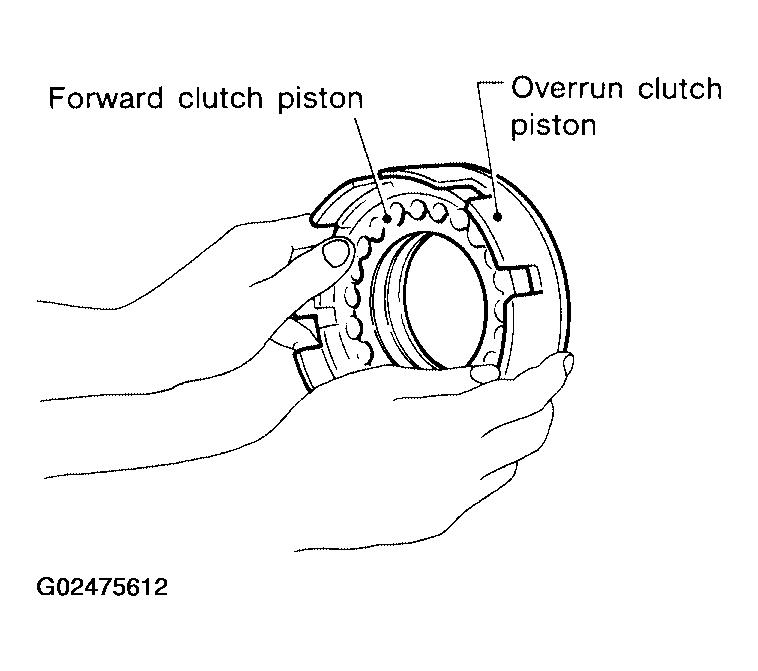

Fig 2: Installing Overrun Clutch Piston Assembly On Forward Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install forward clutch piston assembly on forward clutch drum by turning it slowly.
CAUTION: Apply ATF to inner surface of drum.

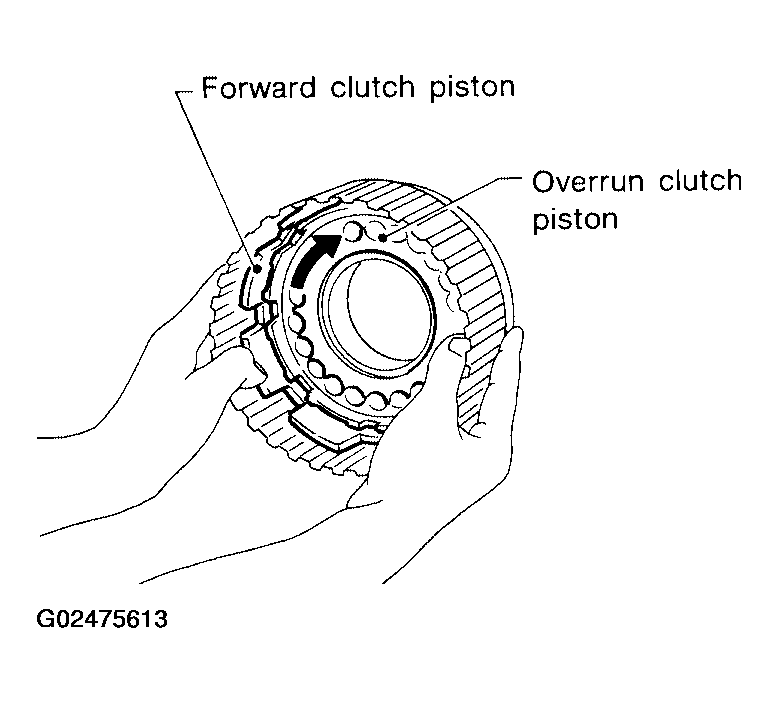

Fig 3: Installing Forward Clutch Piston Assembly On Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring on overrun clutch piston.

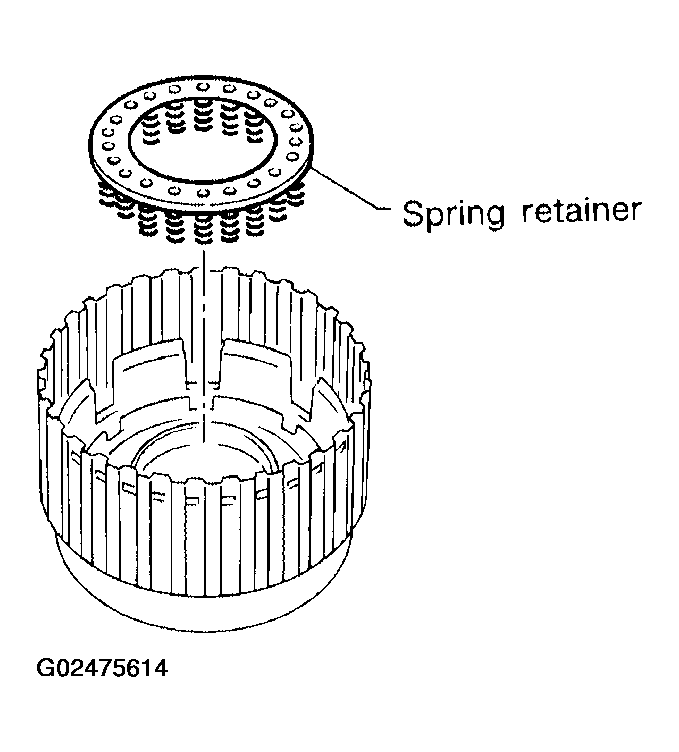

Fig 4: Installing Return Spring On Overrun Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
- Align the mark on spring retainer with check ball in overrun clutch piston.

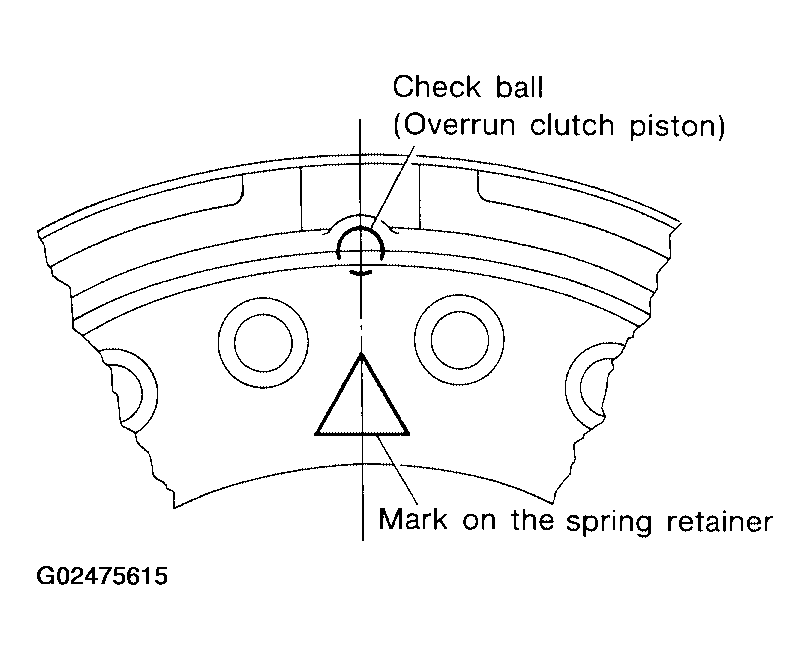

  Fig 5: Aligning Mark On Spring Retainer With Check Ball In Overrun Clutch Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
CAUTION:
- Set Tool directly over return springs.
- Do not expand snap ring excessively.

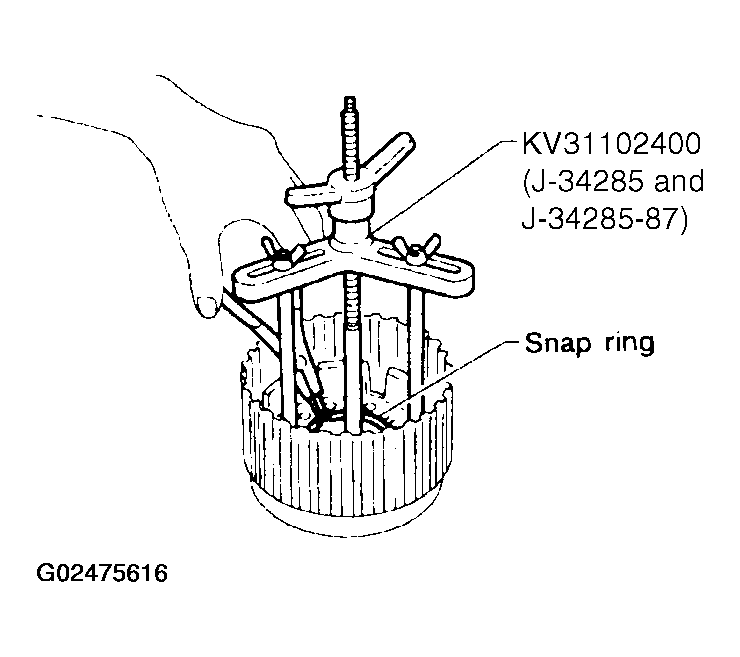

  Fig 6: Installing Snap Ring While Compressing Return Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not align snap ring gap with spring retainer stopper.

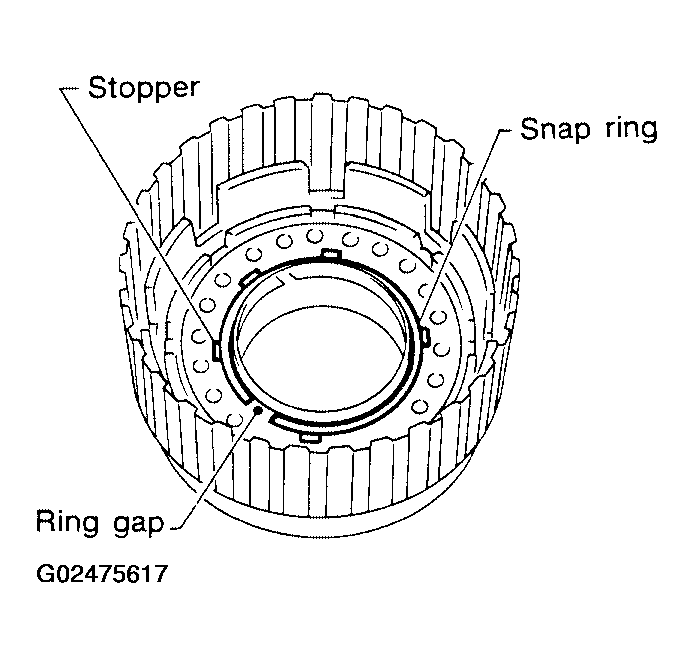

  Fig 7: Aligning Snap Ring Gap With Spring Retainer Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for overrun clutch.
CAUTION: Take care with order of plates.
Install snap ring for overrun clutch.
CAUTION: Do not expand snap ring excessively.

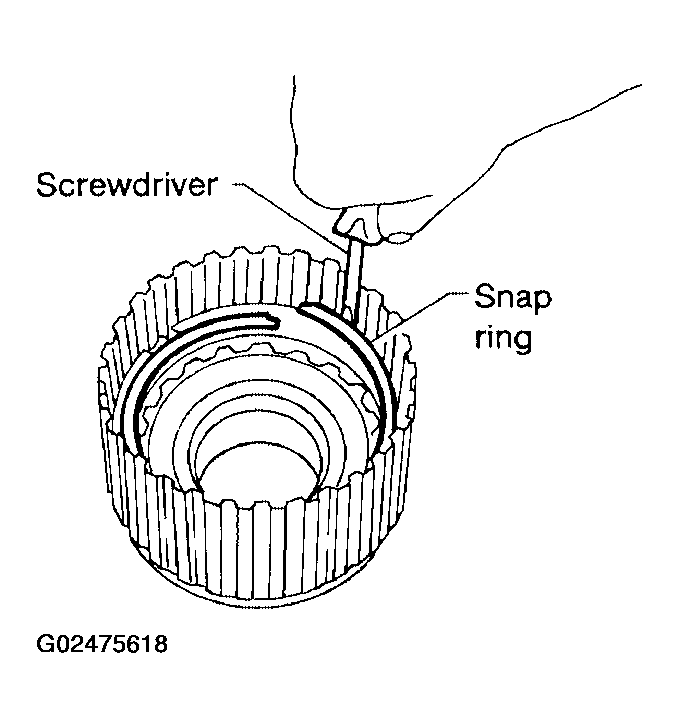

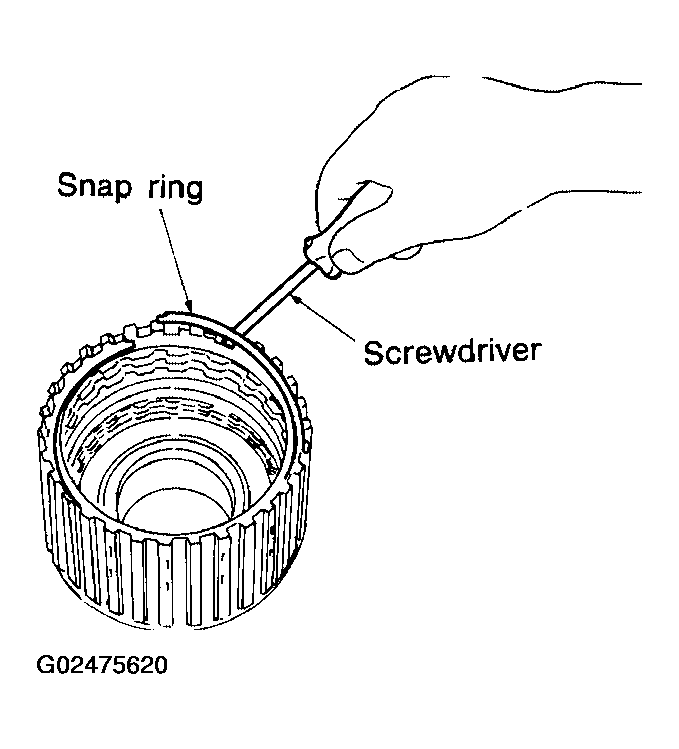

Fig 8: Installing Snap Ring For Overrun Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between overrun clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.
- Specified clearance
- Standard: 0.7 - 1.1 mm (0.028 - 0.043 in)
- Allowable limit: 1.7 mm (0.067 in)
- Overrun clutch retaining plate Refer to " OVERRUN CLUTCH ".

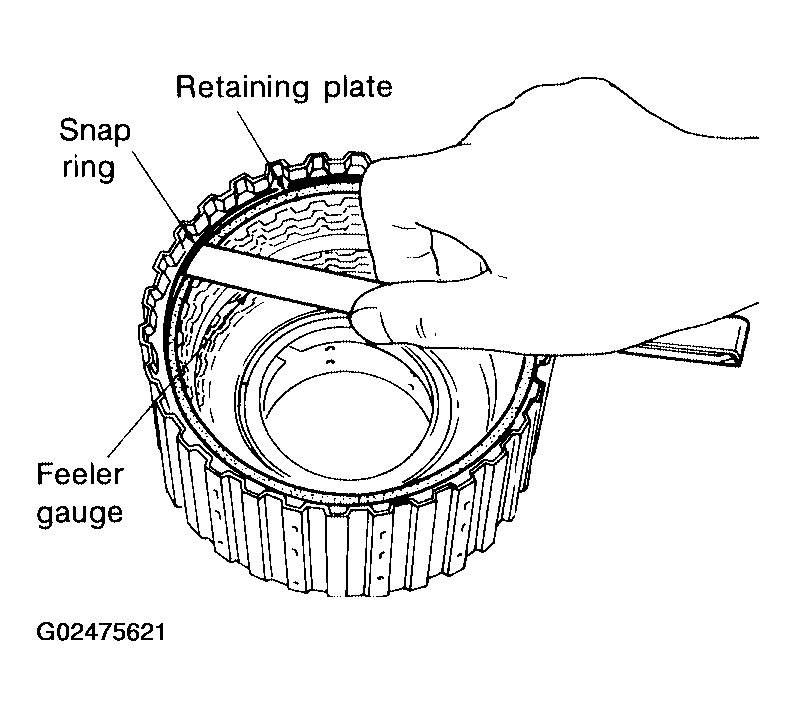

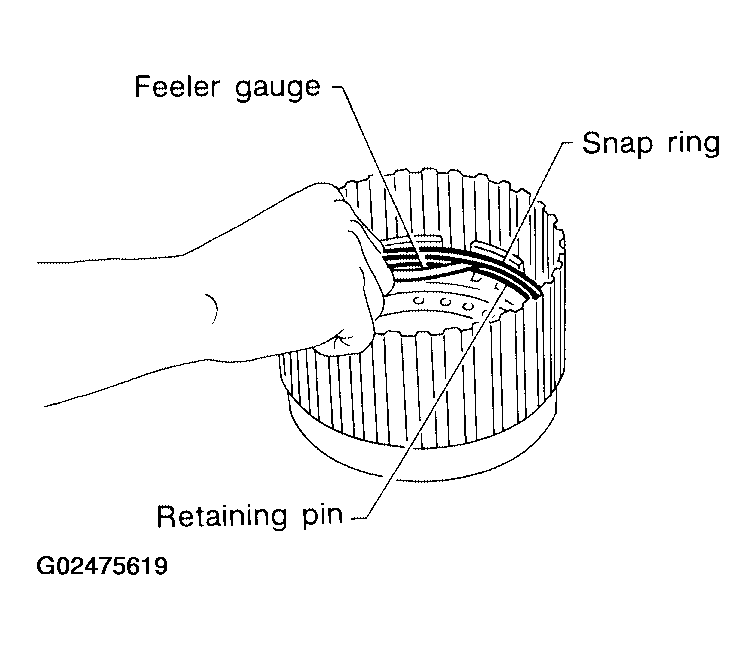

Fig 9: Measuring Clearance Between Overrun Clutch Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for forward clutch.
CAUTION: Take care with order of plates.
Install snap ring for forward clutch.
CAUTION: Do not expand snap ring excessively.

Fig 10: Installing Snap Ring For Forward Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between forward clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.

Fig 11: Measuring Clearance Between Forward Clutch Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
- Specified clearance
- Standard: 0.45 - 0.85 mm (0.0177 - 0.0335 in)
- Allowable limit: 1.85 mm (0.0728 in)
- Forward clutch retaining plate: Refer to " FORWARD CLUTCH ".
Check operation of forward clutch.
Check operation of overrun clutch.

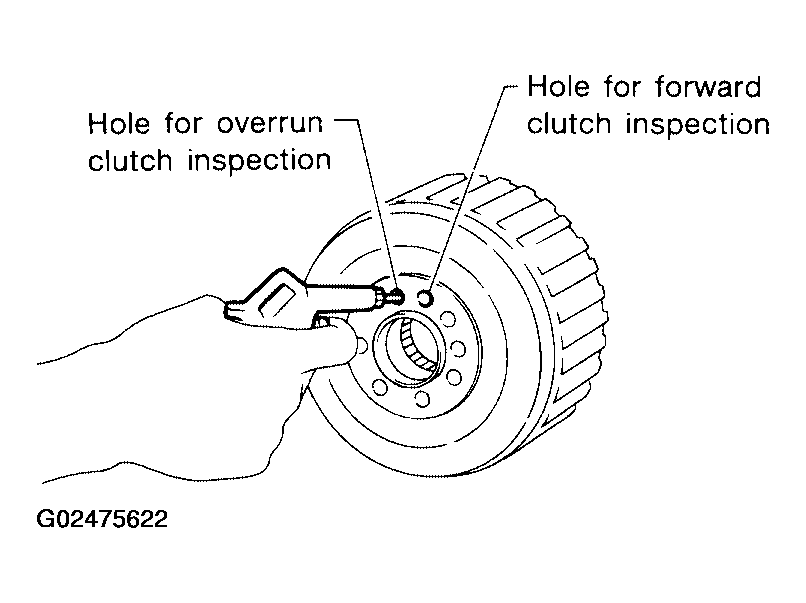

Fig 12: Checking Operation Of Forward Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
