Final Drive: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

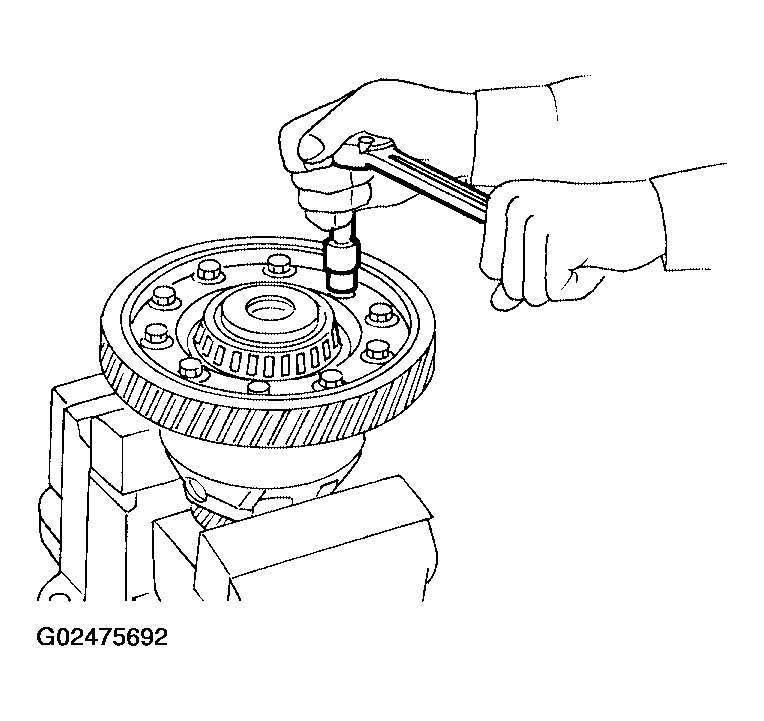

Remove final gear.

Fig 1: Removing Final Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

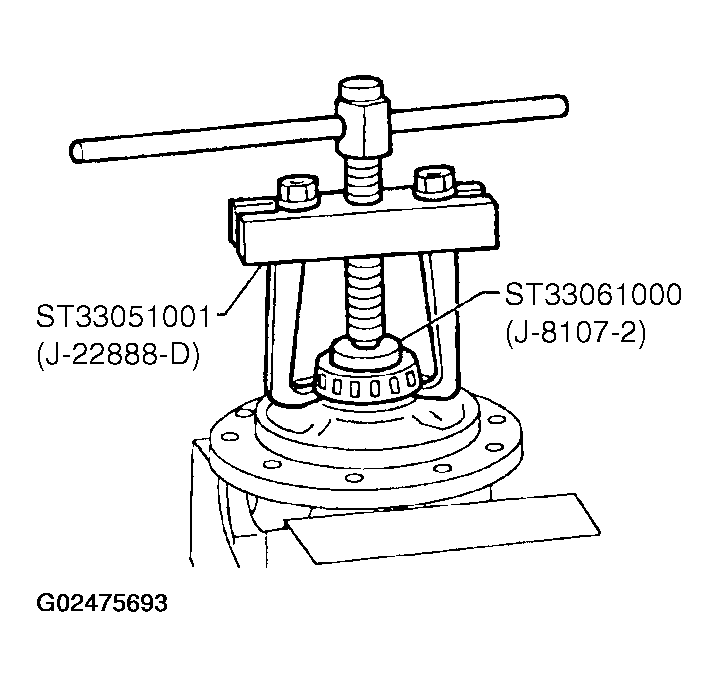

Using puller, remove differential side bearings.
- Be careful not to mix up the right and left bearings.

  Fig 2: Removing Differential Side Bearings
  Courtesy of NISSAN MOTOR CO., U.S.A.

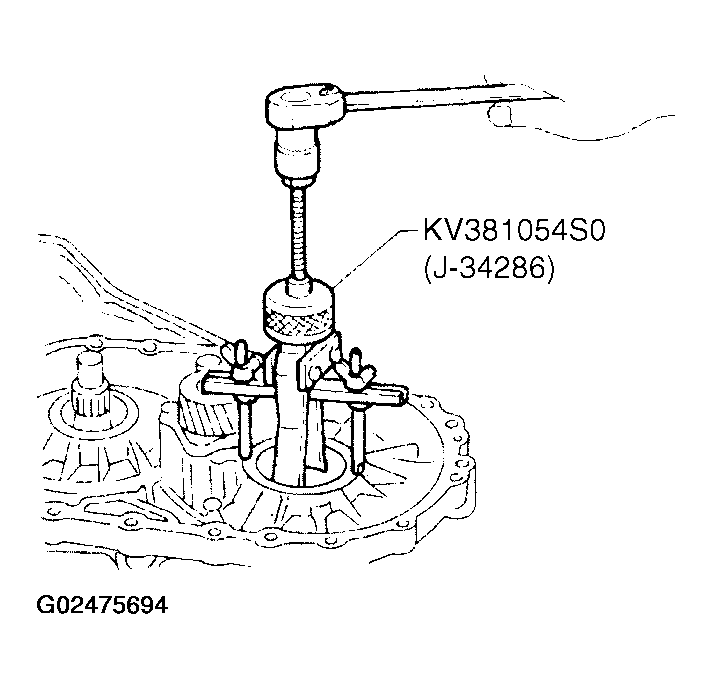

Remove differential side bearing outer race and side bearing adjusting shim from transaxle case.

Fig 3: Removing Differential Side Bearing Outer Race & Side Bearing Adjusting Shim From Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

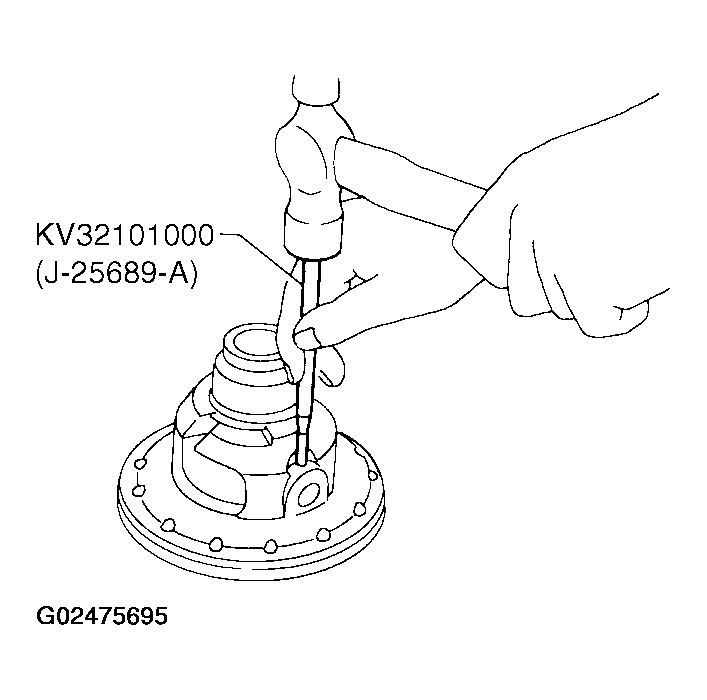

Drive out pinion mate shaft lock pin.

Fig 4: Driving Out Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

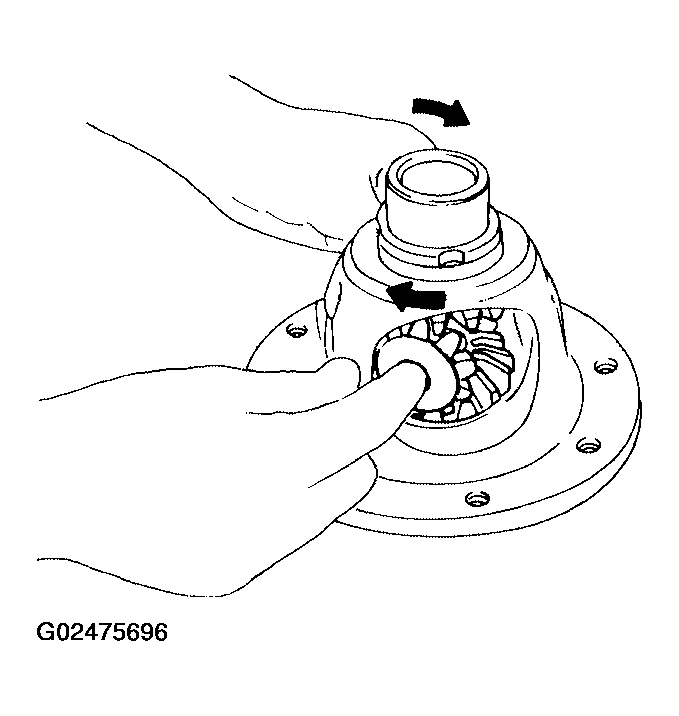

Draw out pinion mate shaft.
Remove pinion mate gears and side gears.

Fig 5: Removing Pinion Mate Gears & Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
