Band Servo Piston Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install D-rings to servo piston retainer.
    CAUTION:
    • Do not reuse D-rings.
    • Apply ATF to D-rings.
    • Pay attention to position of each D-ring.

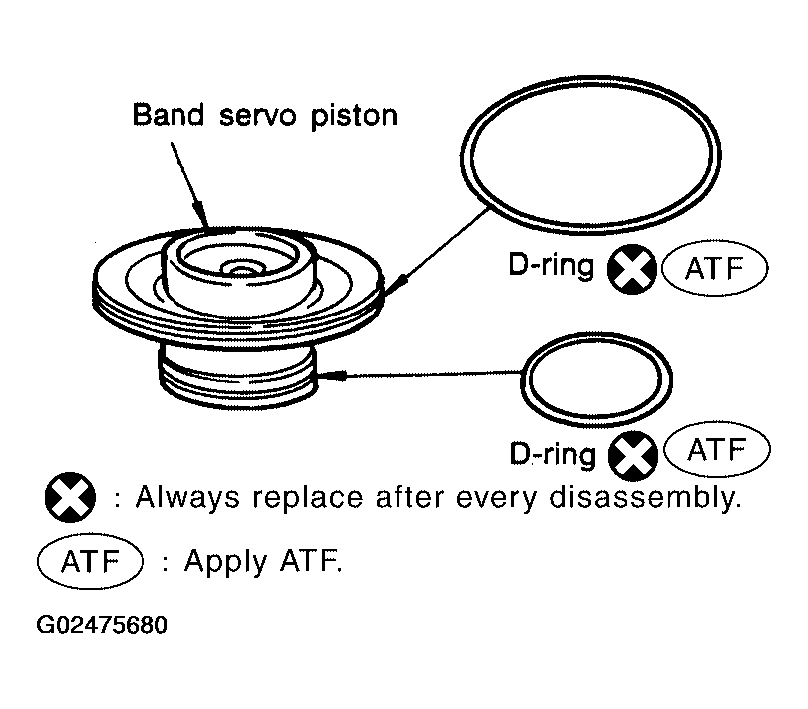

      Fig 1: Installing D-Rings To Servo Piston Retainer
      G02475680Courtesy of NISSAN MOTOR CO., U.S.A.

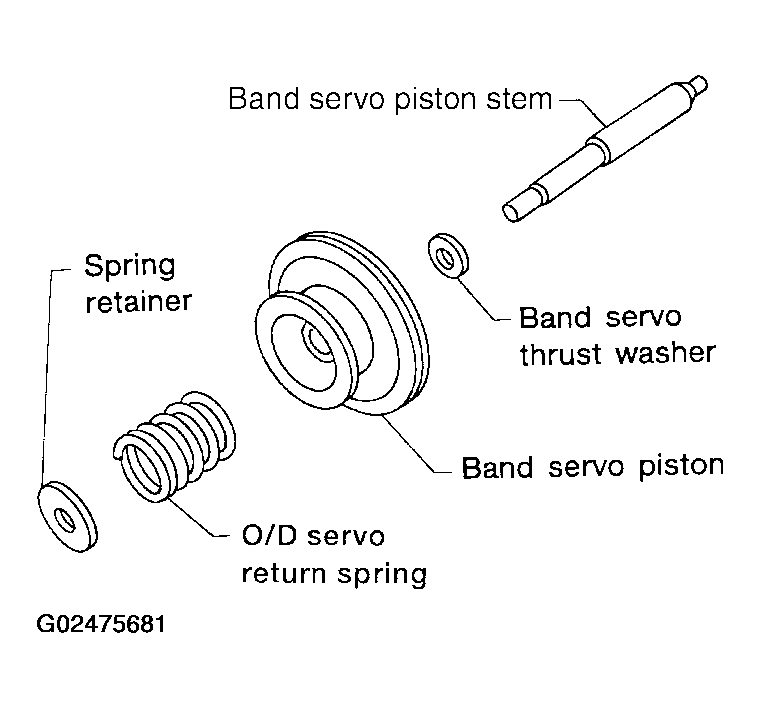

  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.
    Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, O/D Servo Return Spring & Spring Retainer To Band Servo Piston
    G02475681Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place band servo piston stem end on a wooden block. While pushing spring retainer down, install E-ring.

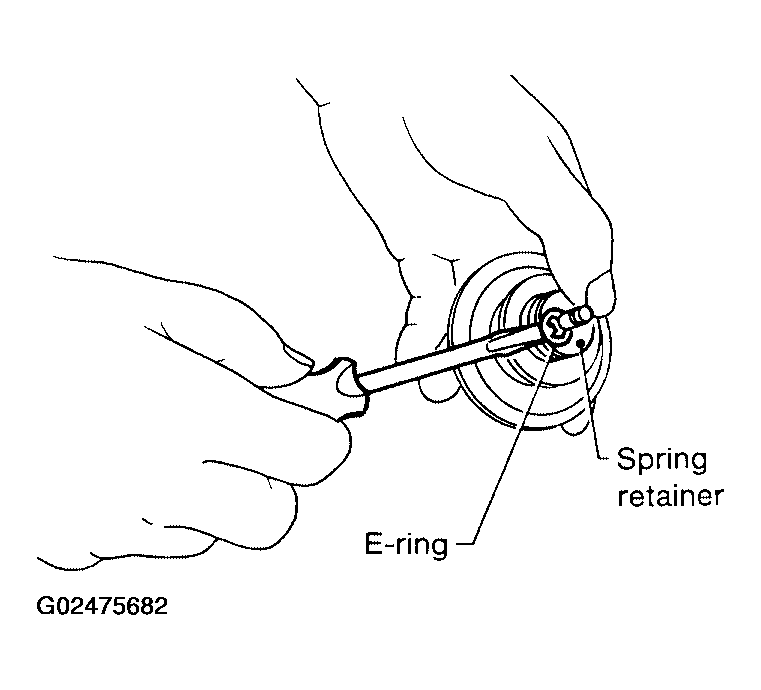

    Fig 3: Installing E-Ring On Band Servo Piston Stem
    G02475682Courtesy of NISSAN MOTOR CO., U.S.A.

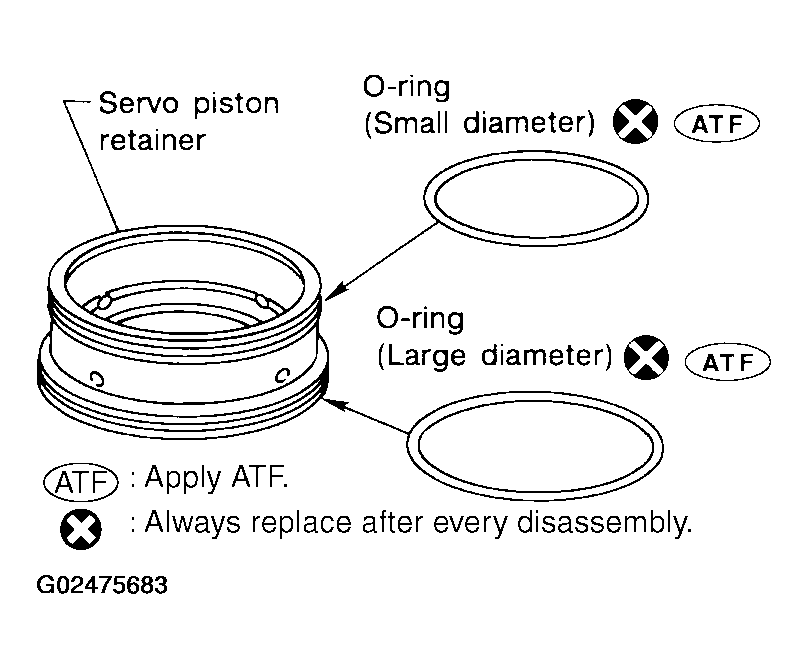

  4. Install O-rings to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
      Fig 4: Installing O-Rings To O/D Servo Piston Retainer
      G02475683Courtesy of NISSAN MOTOR CO., U.S.A.

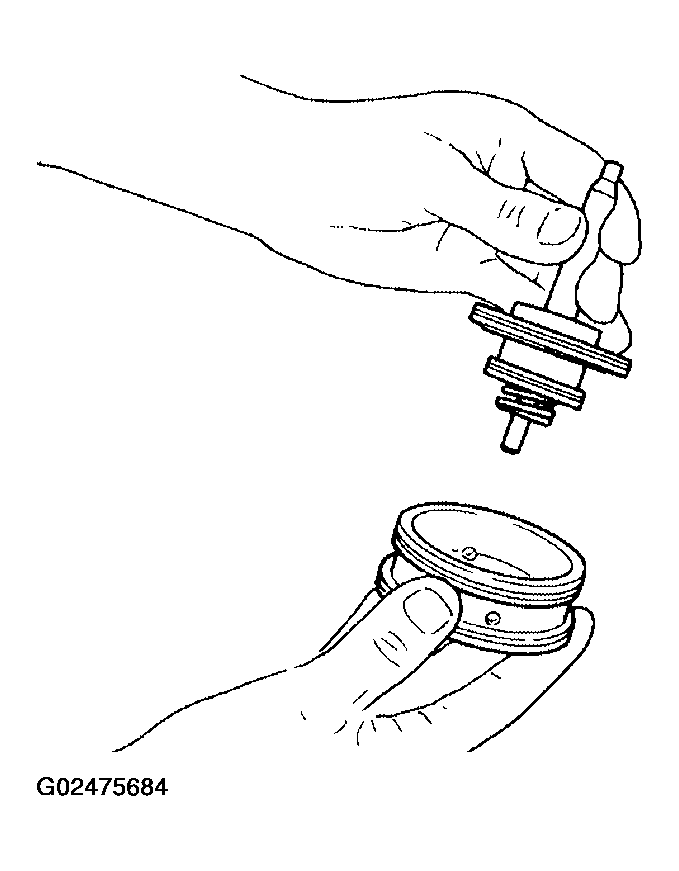

  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G02475684Courtesy of NISSAN MOTOR CO., U.S.A.

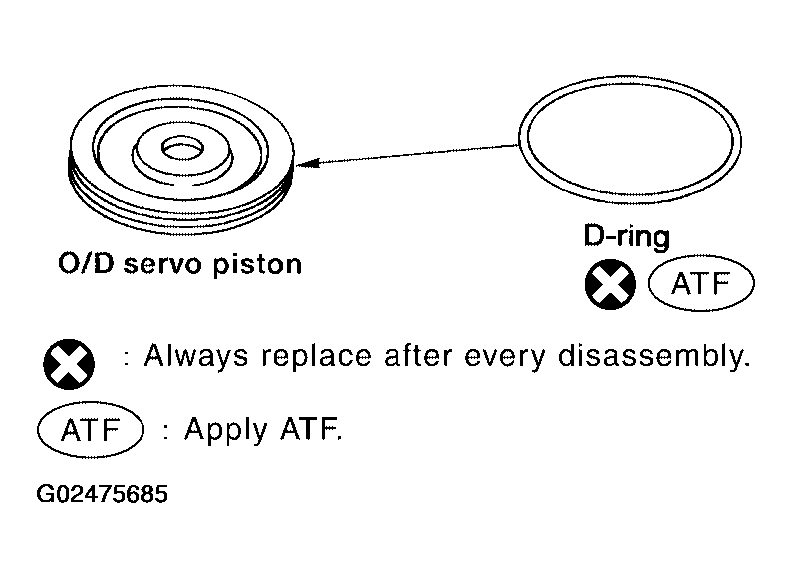

  6. Install D-ring to O/D servo piston.
    CAUTION:
    • Do not reuse D-ring.
    • Apply ATF to D-ring.
      Fig 6: Installing D-Ring To O/D Servo Piston
      G02475685Courtesy of NISSAN MOTOR CO., U.S.A.

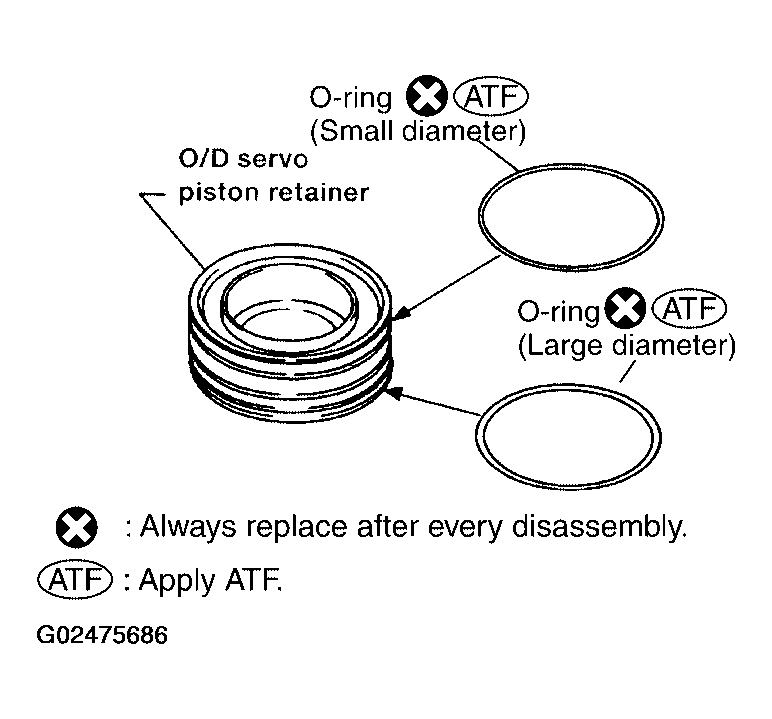

  7. Install O-rings to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
      Fig 7: Installing O-Rings To O/D Servo Piston Retainer
      G02475686Courtesy of NISSAN MOTOR CO., U.S.A.

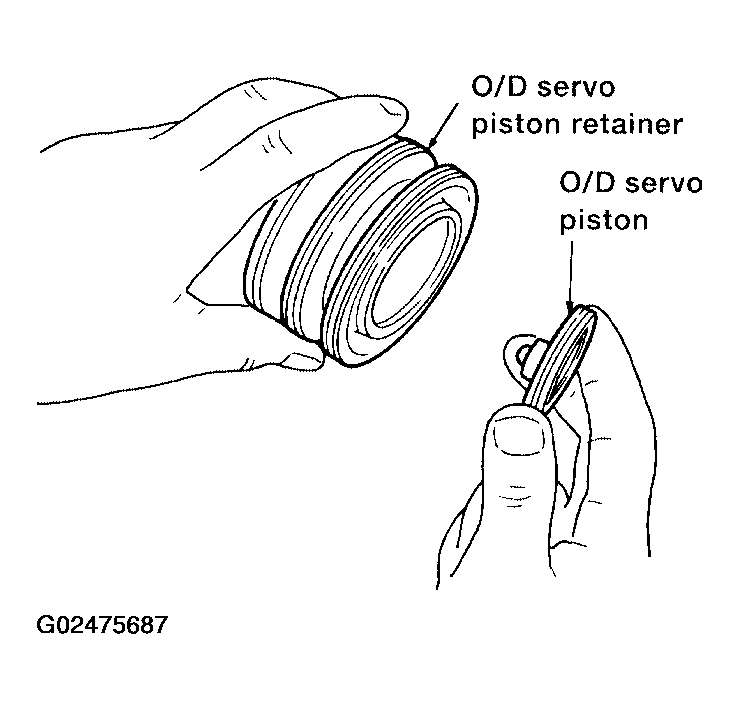

  8. Install O/D servo piston to O/D servo piston retainer.
    Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
    G02475687Courtesy of NISSAN MOTOR CO., U.S.A.

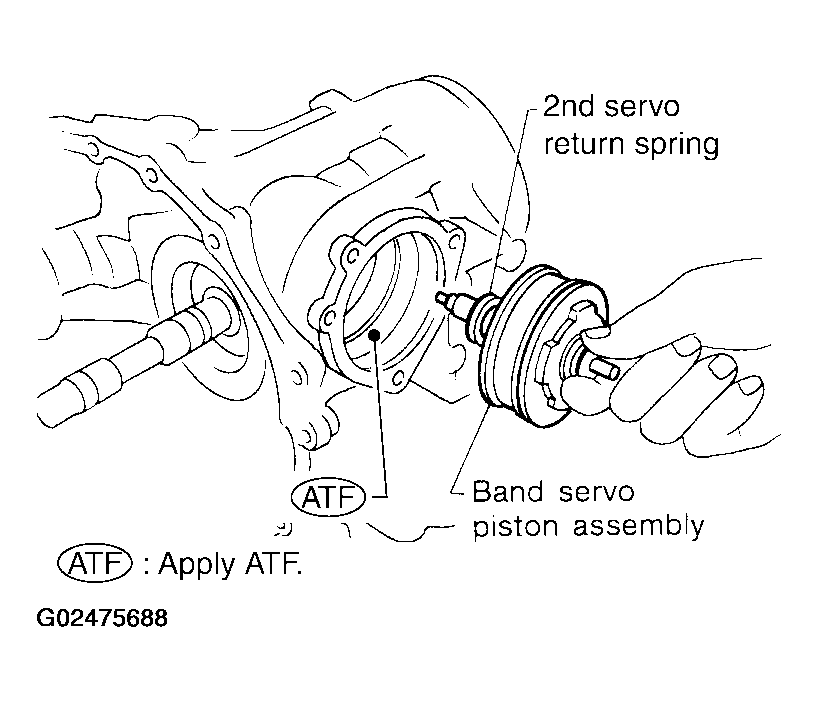

  9. Install band servo piston assembly and 2nd servo return spring to transaxle case.
    CAUTION: Apply ATF to O-ring of band servo piston assembly and transaxle case.
    Fig 9: Installing Band Servo Piston Assembly & 2nd Servo Return Spring To Transaxle Case
    G02475688Courtesy of NISSAN MOTOR CO., U.S.A.

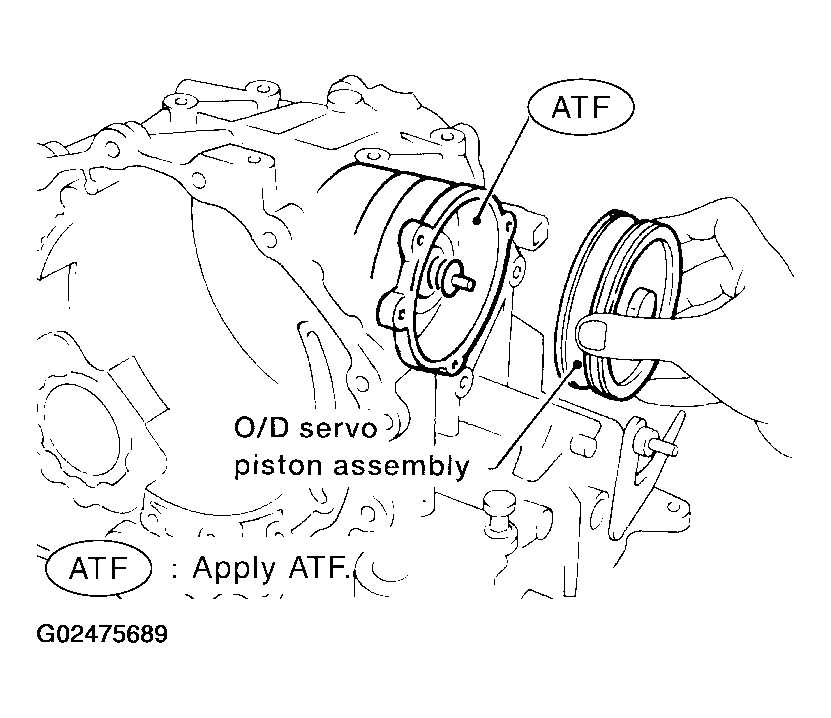

  10. Install O/D servo piston assembly to transaxle case.
    CAUTION: Apply ATF to O-ring of O/D servo piston assembly and transaxle case.
  11. Install O-ring to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
      Fig 10: Installing O-Ring To O/D Servo Piston Retainer
      G02475689Courtesy of NISSAN MOTOR CO., U.S.A.

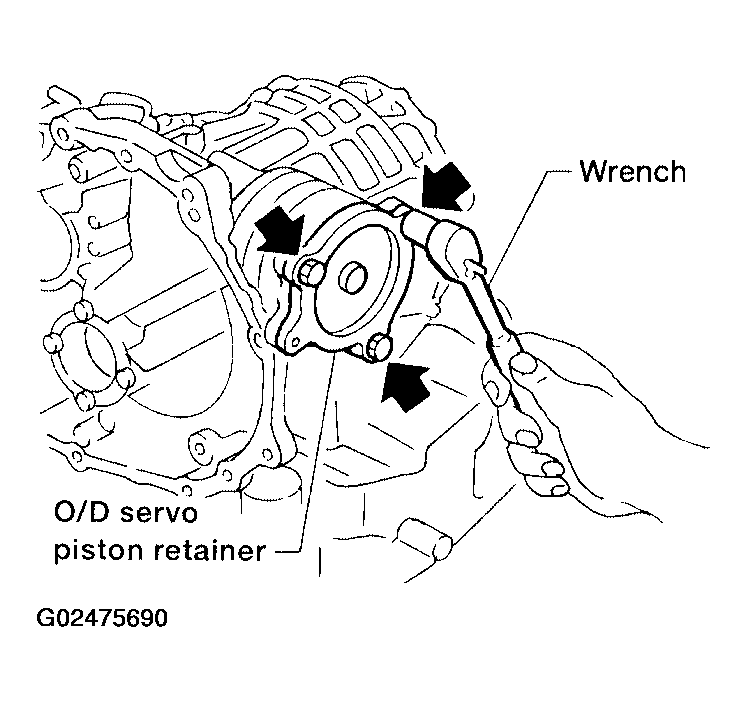

  12. Install O/D servo piston retainer to transaxle case. Refer to "COMPONENTS ".
    Fig 11: Installing O/D Servo Piston Retainer
    G02475690Courtesy of NISSAN MOTOR CO., U.S.A.
