Inspection After Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Drive plate runout
CAUTION: Do not allow any magnetic materials to contact the ring gear teeth.
- Maximum allowable runout:
- Refer to " DRIVE PLATE ".
If this runout is out of allowance, replace drive plate and ring gear.

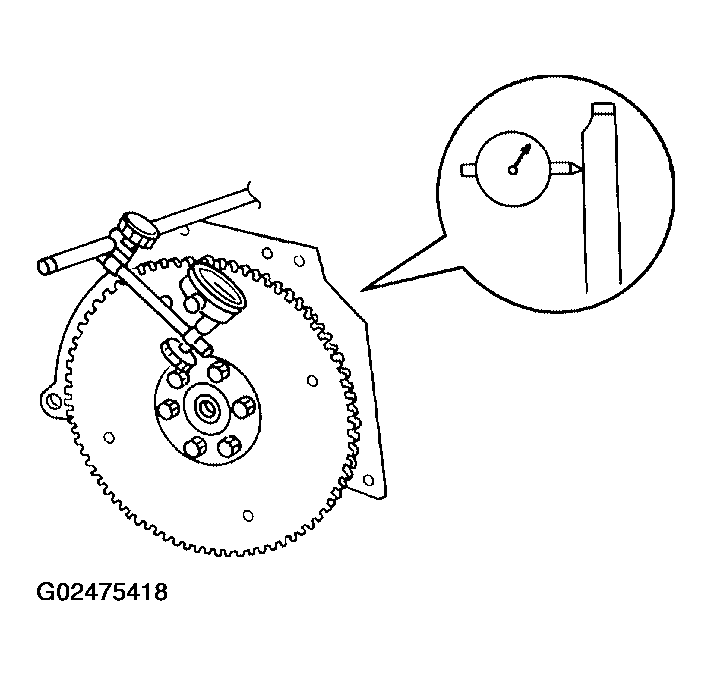

Fig 1: Measuring Drive Plate Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
- Distance "A": 14 mm (0.55 in) or more

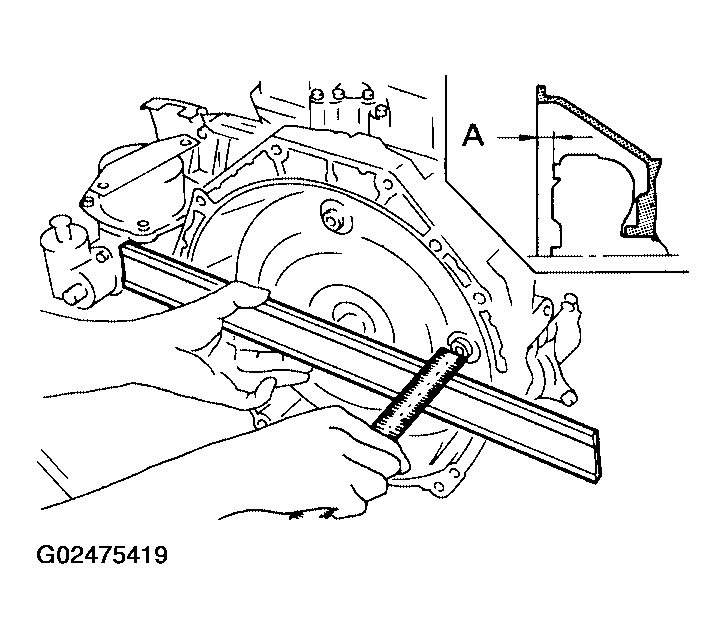

Fig 2: Measuring Torque Converter Surface
Courtesy of NISSAN MOTOR CO., U.S.A.
