R Position

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

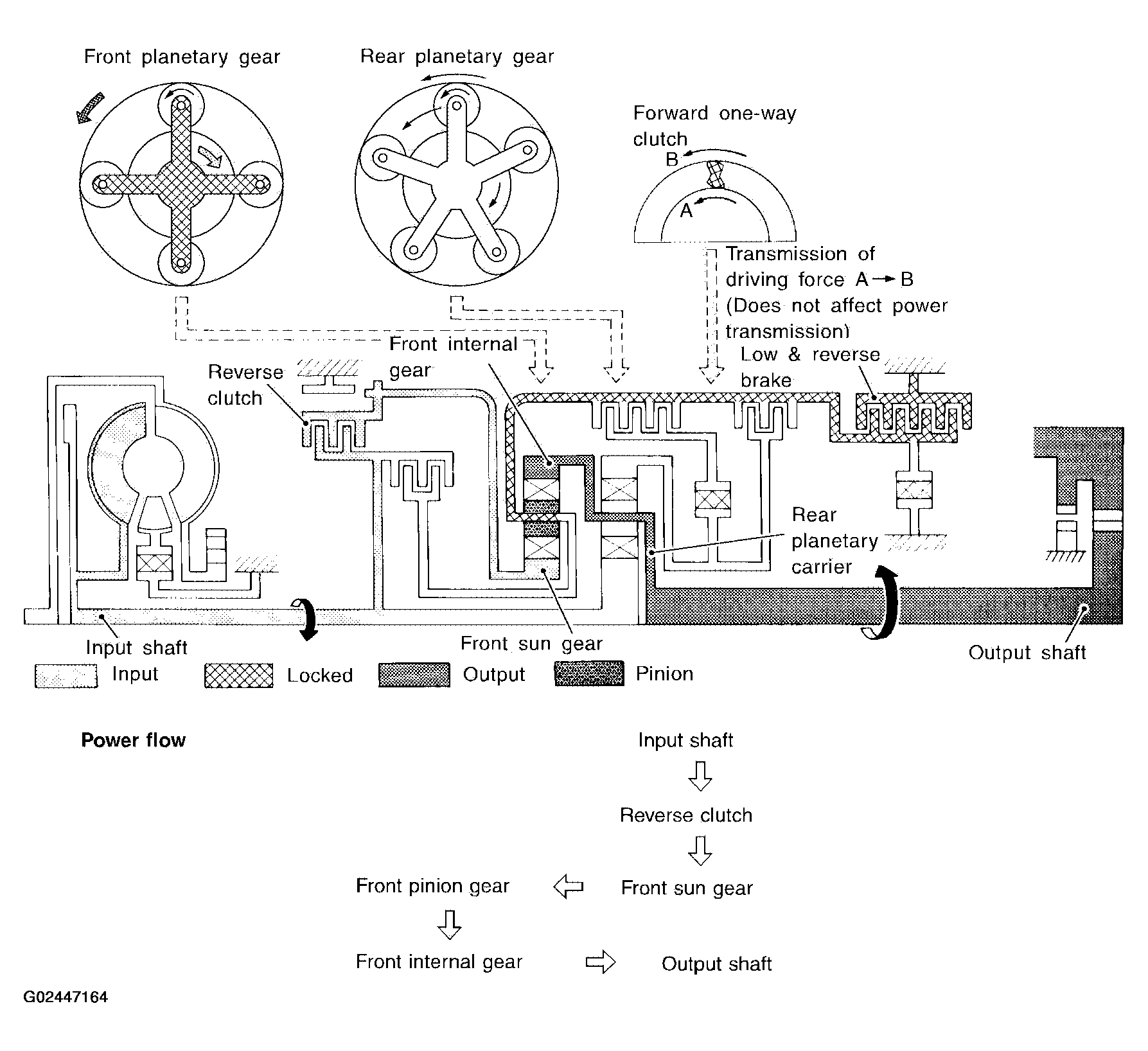

Fig 1: Power Transmission - R Position

Courtesy of NISSAN MOTOR CO., U.S.A.

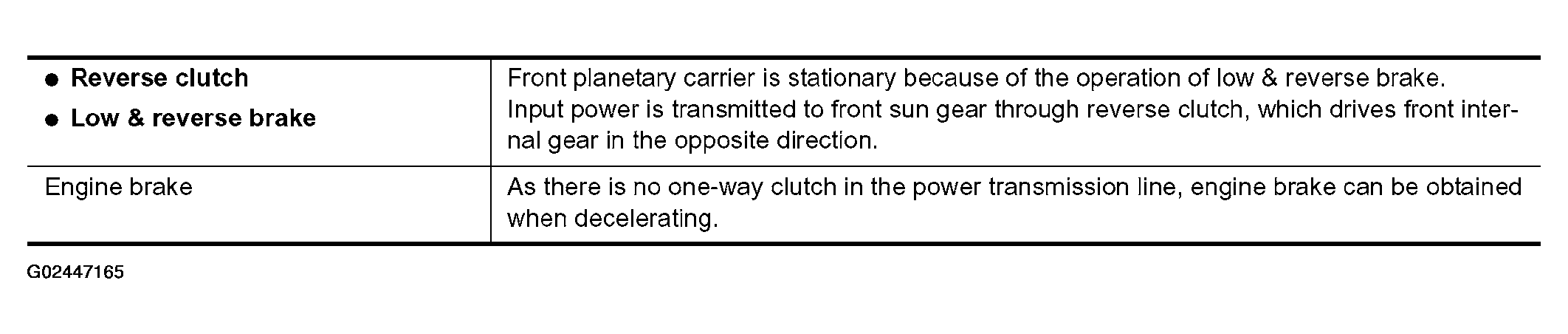

Fig 2: Power Transmission Reference Table

Courtesy of NISSAN MOTOR CO., U.S.A.
