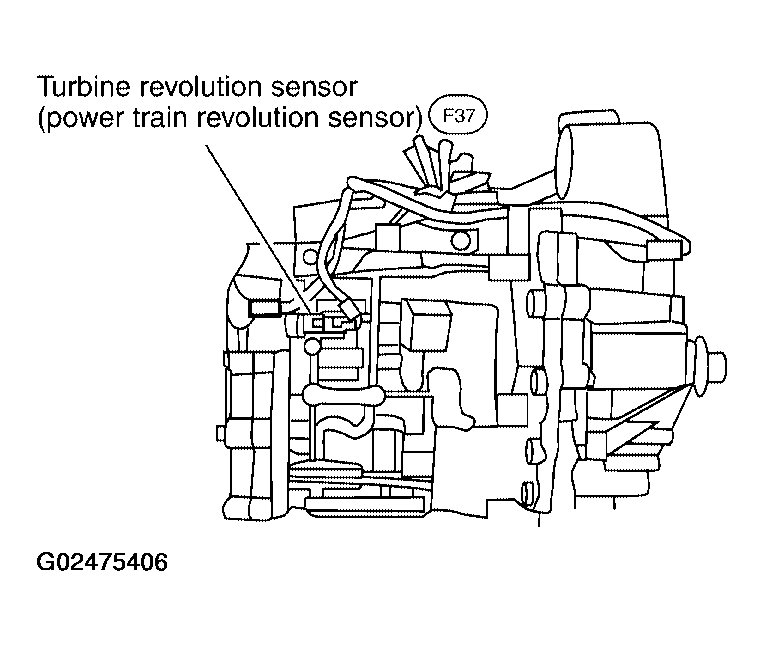

Turbine Revolution Sensor (Power Train Revolution Sensor) Replacement
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect electrical connector.
- Remove bolt, and turbine revolution sensor (power train revolution sensor) from A/T.
- Installation is in the reverse order of removal.CAUTION:
- Do not reuse O-ring.
- Apply petroleum jelly to O-ring.
- Be careful not to mis-connect because shape of connectors are same as revolution sensor.
NOTE: To prevent mis-connection, revolution sensor harness connector is color taped for identification.
