Differential Side Oil Seal Replacement

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive shaft assembly. Refer to "FRONT DRIVE SHAFT ".
Remove oil seal.

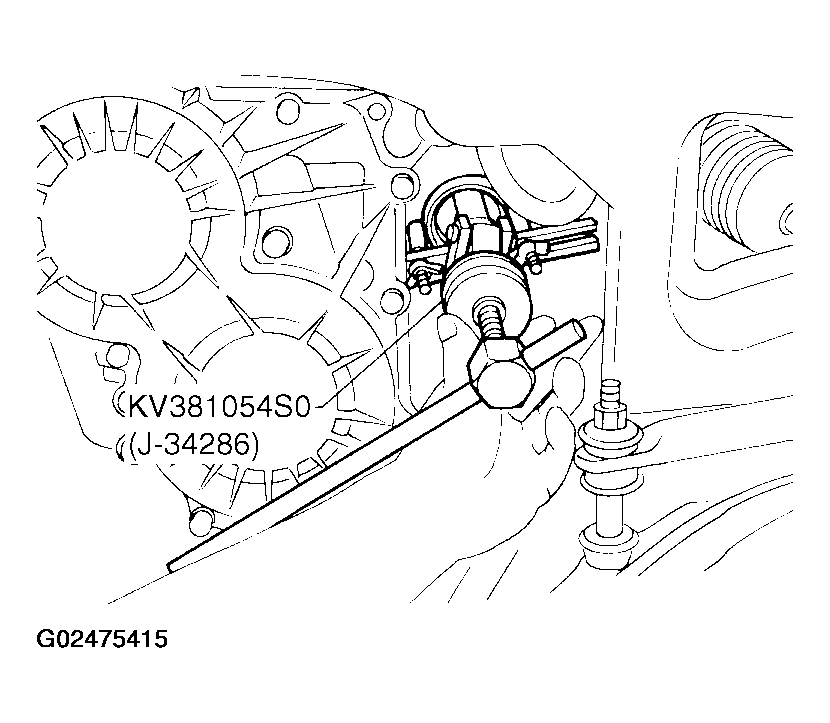

Fig 1: Removing Oil Seal Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seal.
- Apply ATF before installing.

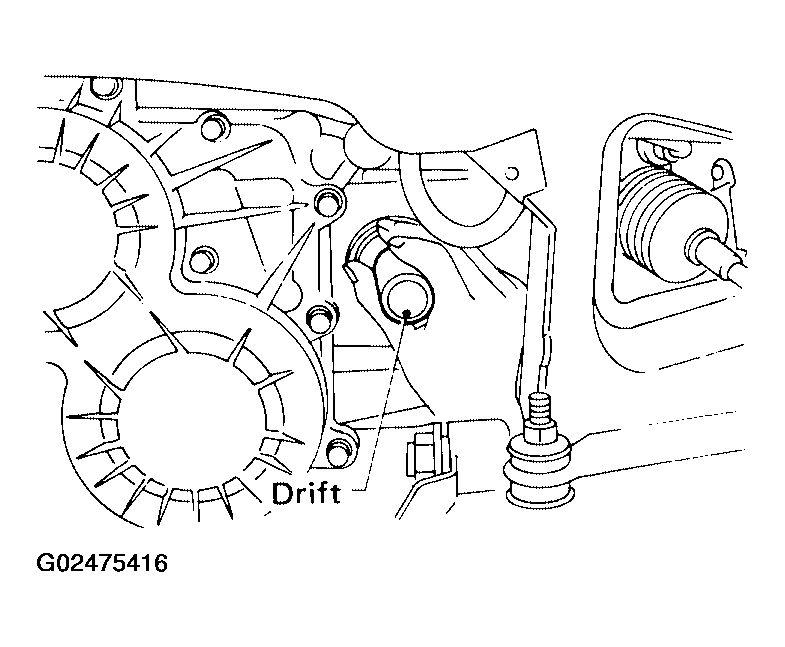

  Fig 2: Installing Oil Seal Using Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so dimension A is within specification
  - A: -0.5 mm (-0.02 in) to 0.5 mm (0.02 in)

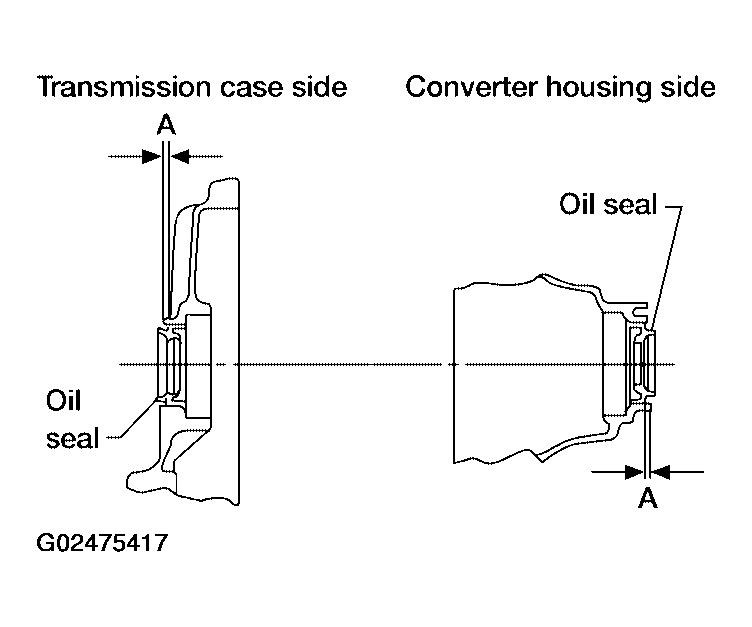

  Fig 3: Identifying Oil Seals Dimension A
  Courtesy of NISSAN MOTOR CO., U.S.A.
Installation is in the reverse order of removal.
