ATF Cooler: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain ATF. Refer to "CHANGING A/T FLUID ".
  2. Drain engine coolant, refer to "CHANGING ENGINE COOLANT ".
  3. Remove hose clamps and hoses from ATF cooler.
  4. Remove four bolts from ATF cooler and remove ATF cooler.

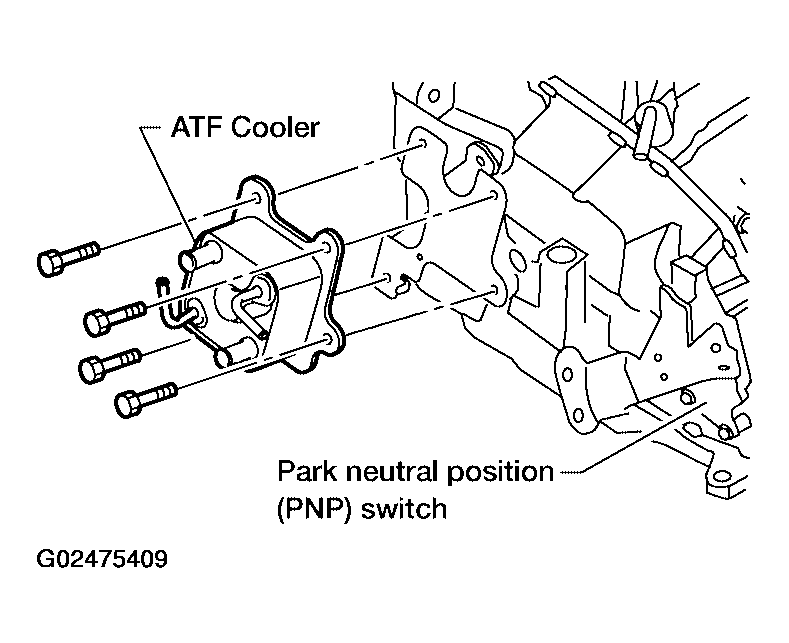

    Fig 1: Removing Bolts From ATF Cooler & ATF Cooler
    G02475409Courtesy of NISSAN MOTOR CO., U.S.A.
