Self-Diagnostic Procedure (With Consult-II)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate CONSULT-II Operations Manual.

Touch on CONSULT-II, touch "START (NISSAN BASED VHCL)", and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis.
If "ENGINE" or "A/T" is not displayed, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

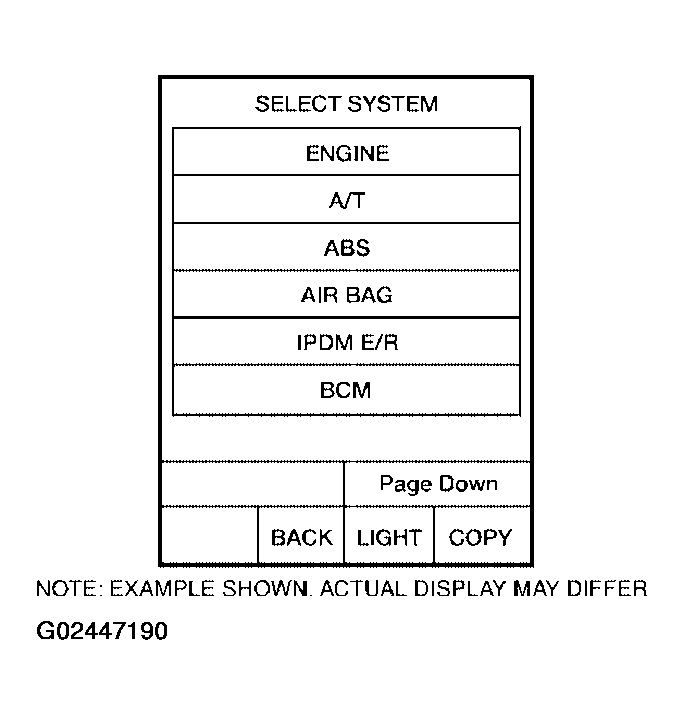

Fig 1: Consult-II - SELECT SYSTEM Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation.

CONSULT-II performs "Real Time Diagnosis".

Also, any malfunction detected while in this mode will be displayed at real time.

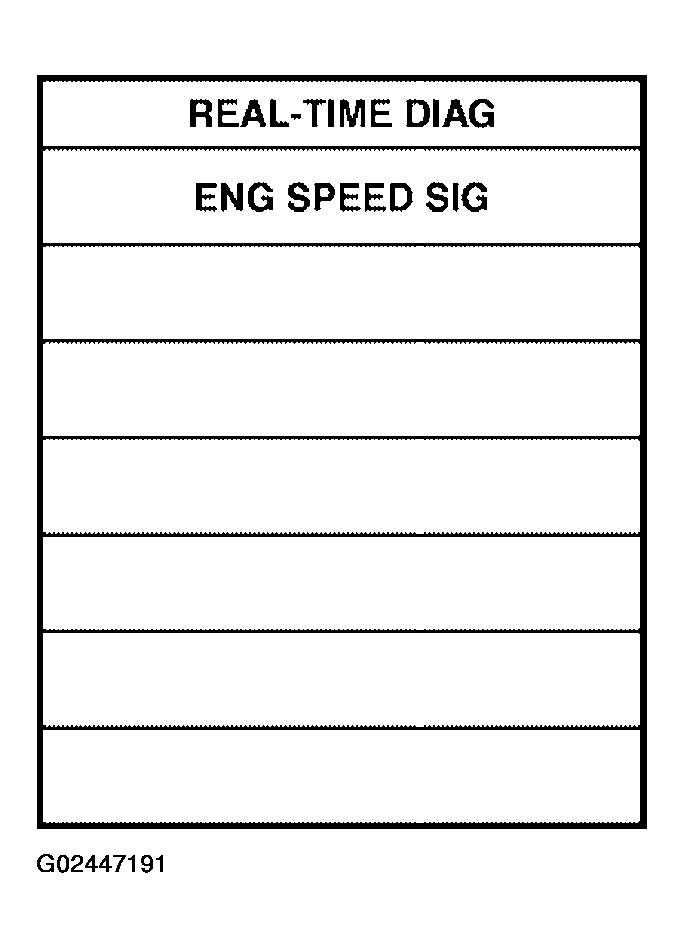

Fig 2: Consult-II - REAL-TIME DIAG Display
Courtesy of NISSAN MOTOR CO., U.S.A.
