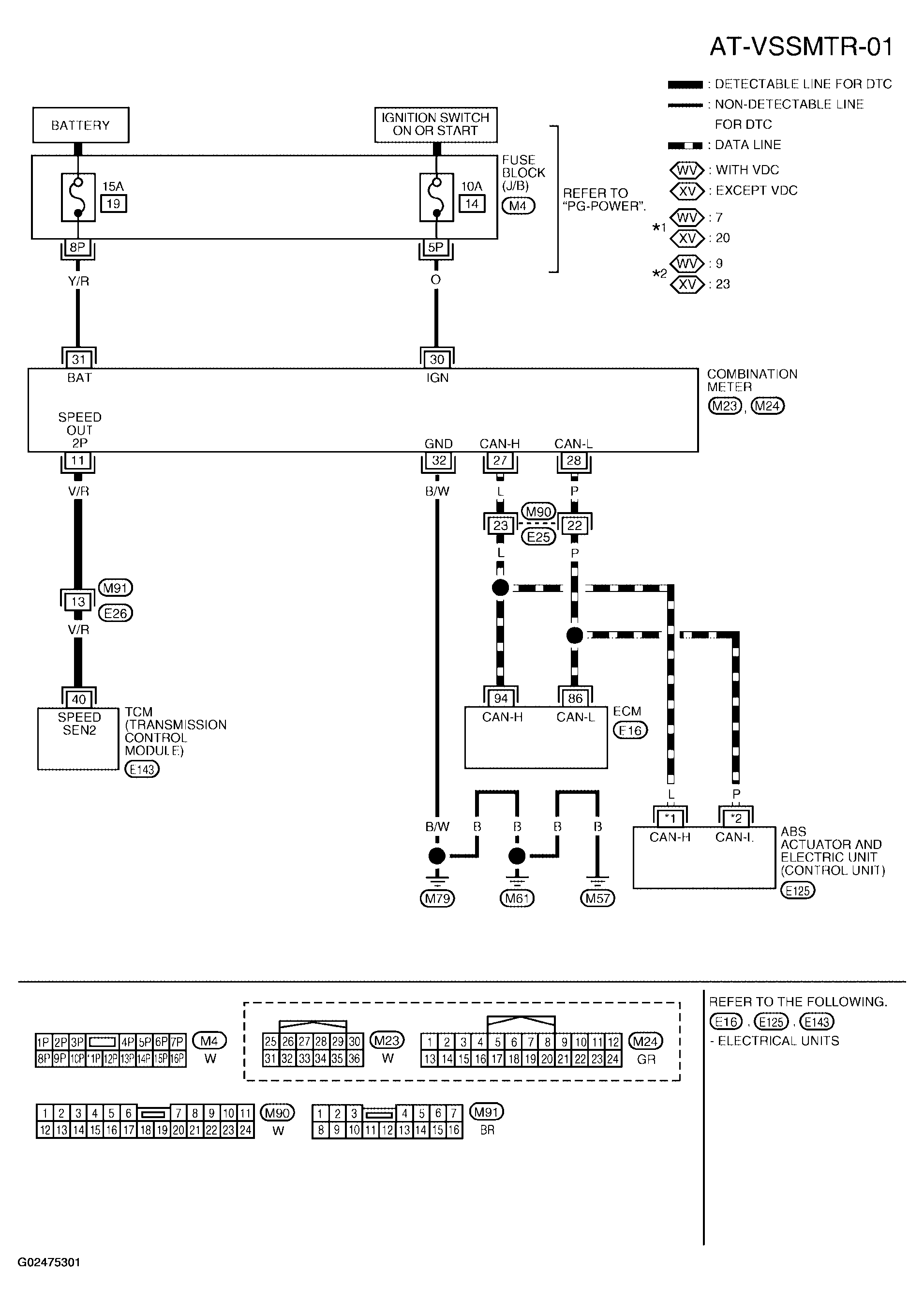

Wiring Diagram - AT - VSSMTR
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
TCM TERMINALS AND REFERENCE VALUE (MEASURED BETWEEN EACH TERMINAL AND GROUND)
CONNECTOR TERMINAL VOLTAGE SPECIFICATION TABLE
| TERMINAL | WIRE COLOR | ITEM | CONDITION | DATA (APPROX.) |
|---|---|---|---|---|
| 40 | V/R | VEHICLE SPEED SIGNAL | WHEN MOVING VEHICLE AT 2 TO 3 KM/H (1 TO 2 MPH) FOR 1 M (3 FT) OR MORE. | INTERMITTENTLY CHANGES BETWEEN APPROX. 0V AND APPROX. 4.5V |
