Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.

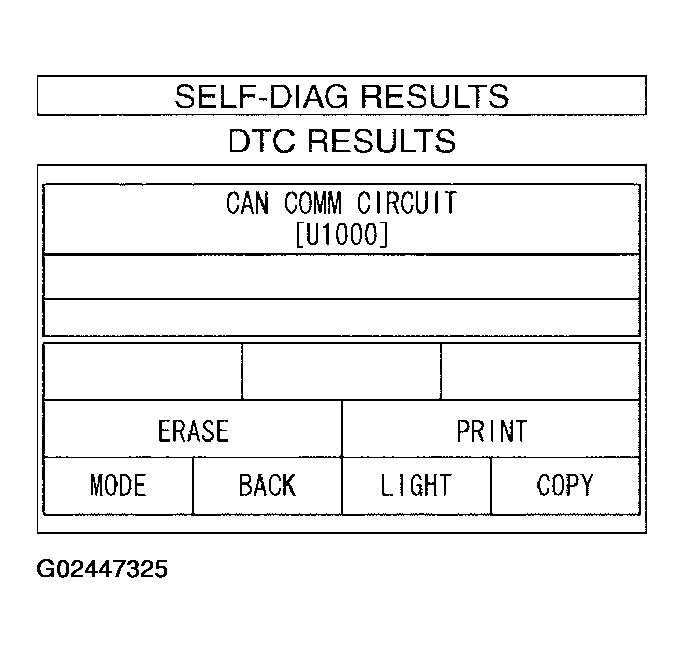

  Fig 1: Consult-II - SELF-DIAG RESULT Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. The "CAN COMM CIRCUIT" is detected.
Yes or No
- Yes: Print out CONSULT-II screen, GO TO "PRECAUTIONS WHEN USING CONSULT-II ".
- No: INSPECTION END
