Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK VALVE RESISTANCE
1. Turn ignition switch to OFF position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal cord assembly F30 terminal 3 and ground.

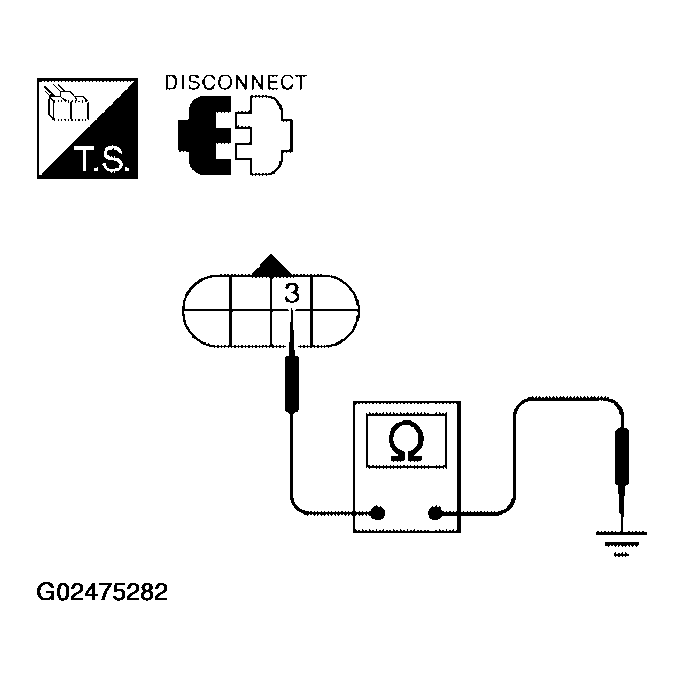

  Fig 1: Checking Resistance Between Terminal Cord Assembly F30 Terminal 3 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Resistance: 20 - 30Ω
OK or NG
- OK: GO TO 3.
- NG: GO TO 2.
CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
2. Check the following items:
  - Overrun clutch solenoid valve
  - Operation check
    - Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.

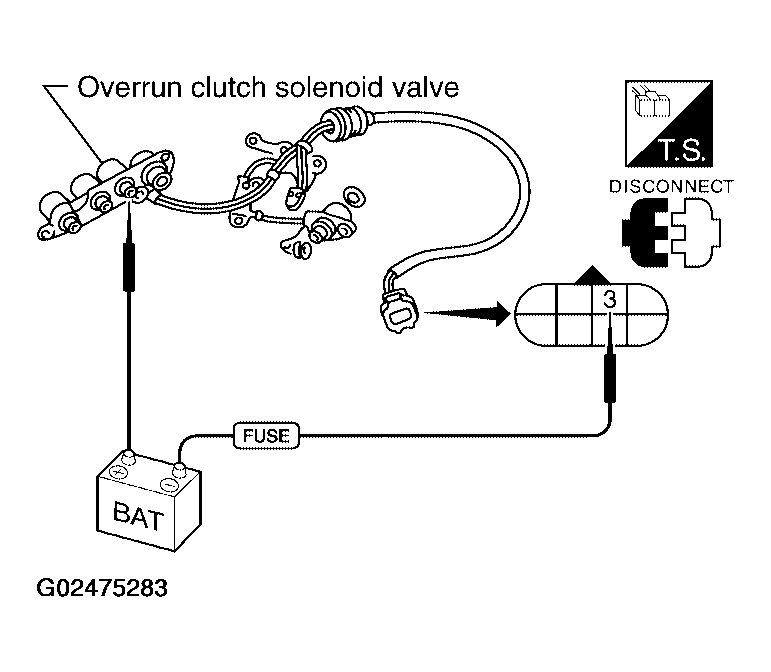

      Fig 2: Checking Solenoid Valve By Applying Battery Voltage To Terminals
      Courtesy of NISSAN MOTOR CO., U.S.A.
  - Harness of terminal cord assembly for short or open
OK or NG
- OK: GO TO 3.
- NG: Repair or replace damaged parts.
CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to OFF position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal cord assembly harness connector F30 terminal 3 (BR/Y) and TCM harness connector E142 terminal 20 (BR/Y). Refer to "WIRING DIAGRAM - AT - OVRCSV ".
  - Continuity should exist.
4. Reinstall any part removed.
OK or NG
- OK: GO TO 4.
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK DTC
Perform "DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE ".

OK or NG
- OK: INSPECTION END
- OK: GO TO 5.
CHECK ITEM INSPECTION
1. Perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
- OK: INSPECTION END
- NG: Repair or replace damaged parts.
