DTC P1760: Overrun Clutch Solenoid Valve: Description

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be controlled.

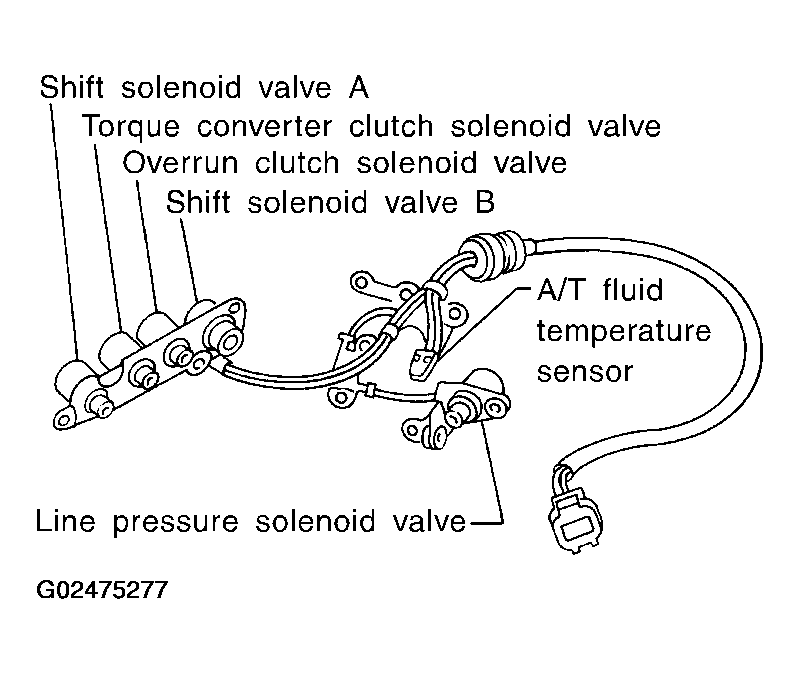

Fig 1: Overrun Clutch Solenoid Valve Components (DTC P1760)
G02475277Courtesy of NISSAN MOTOR CO., U.S.A.
