With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

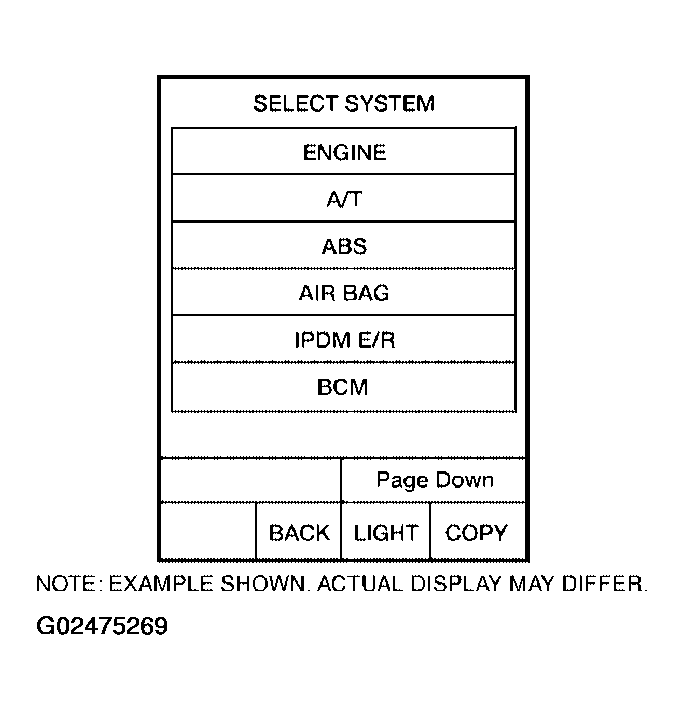

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

Fig 1: CONSULT-II Display - DATA MONITOR Mode For A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELECTION FROM MENU".
Touch "THRTL POS SEN".

Touch "START"

ACCELERATOR PEDAL CONDITION REFERENCE TABLE

Accelerator pedal condition	THRTL POS SEN
Fully released	Approx. 0.5V
Partially depressed	0.5 - 4V
Fully depressed	Approx. 4V

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

Fig 2: CONSULT-II Display - SELECTION FROM MENU

Courtesy of NISSAN MOTOR CO., U.S.A.

Touch "SELECTION FROM MENU"
Touch "VHCL SPEED SE" and "THRTL SEN 1".
Touch "START".
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more THRTL POS 1: Approximately 3V or less Selector lever: D position

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

Fig 3: CONSULT-II Display - DATA MONITOR Mode For ENGINE
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position

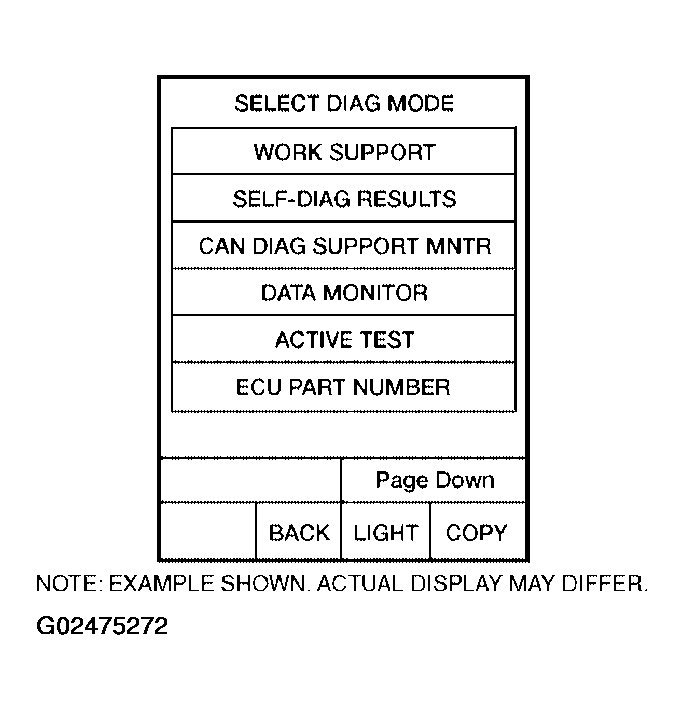

Fig 4: CONSULT-II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
