DTC P0745: Line Pressure Solenoid Valve: Description: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.

The line pressure duty cycle value is not consistent when the closed throttle position signal is "ON". To confirm the line pressure duty cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is "OFF".

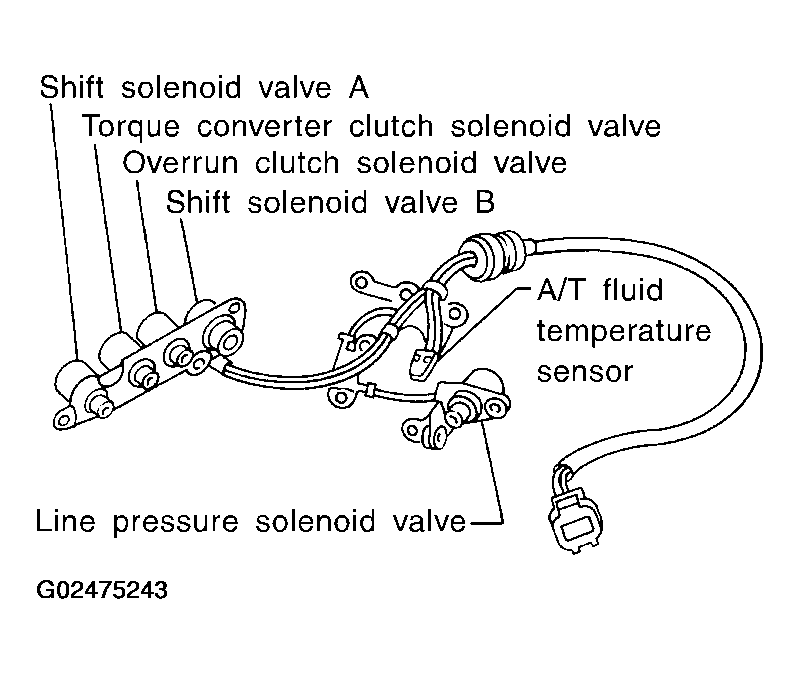

Fig 1: Identifying Line Pressure Solenoid Valve (DTC P0745)
G02475243Courtesy of NISSAN MOTOR CO., U.S.A.
