With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

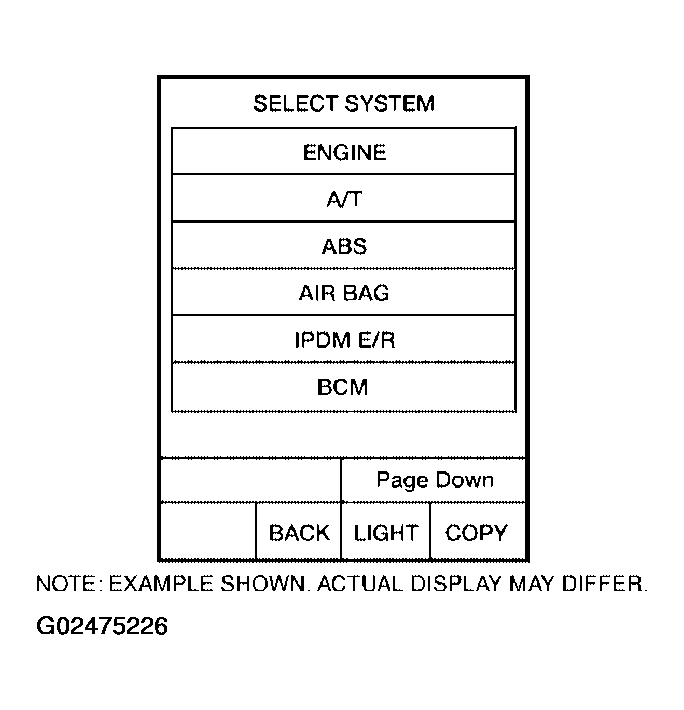

- Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

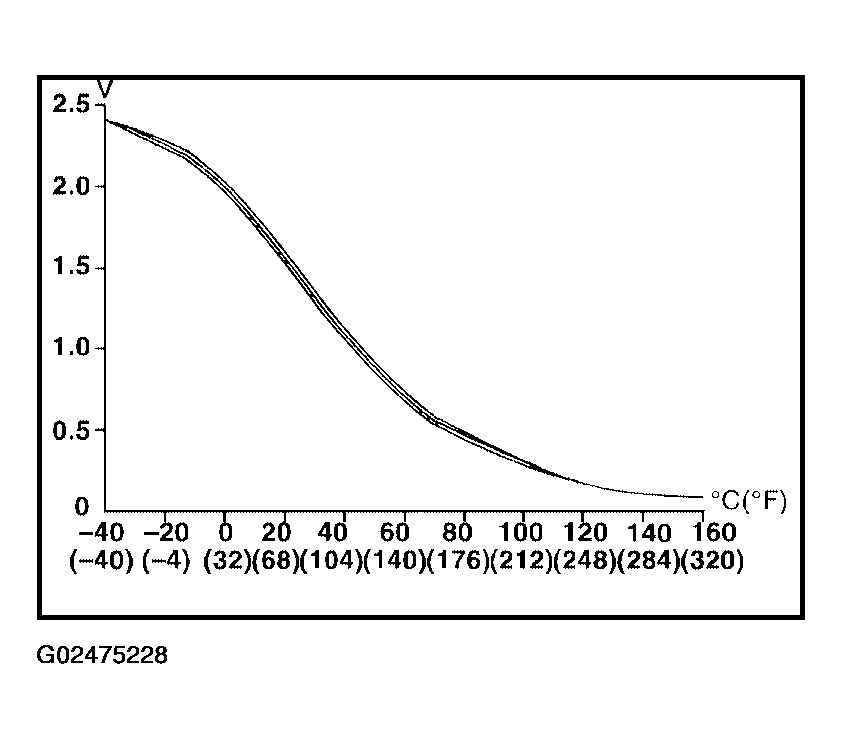

- Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.5 - 1.5V
If out of range, drive vehicle to decrease voltage (warm up the fluid) or stop engine to increase voltage (cool down the fluid).
- Select "TCC S/V FNCTN P0744" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
- Accelerate vehicle to more than 80 km/h (50 MPH) and maintain the following condition continuously until "TESTING" has turned to "COMPLETE". (It will take approximately 30 seconds after "TESTING" shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)
Selector lever: D position
TCC S/V DUTY: More than 94%
VHCL/S SE-A/T: Constant speed of more than 80 km/h (50 MPH)
- Check that "GEAR" shows "4".
- For shift schedule, refer to " SHIFT SCHEDULE ".
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS". In case a 1st trip DTC other than P0744 is shown, refer to applicable "Diagnostic Procedure" for indicated DTC.
- Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".)
Refer to "DIAGNOSTIC PROCEDURE ".
Refer to "SHIFT SCHEDULE ".
