With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to ON position. (Do not start engine.)

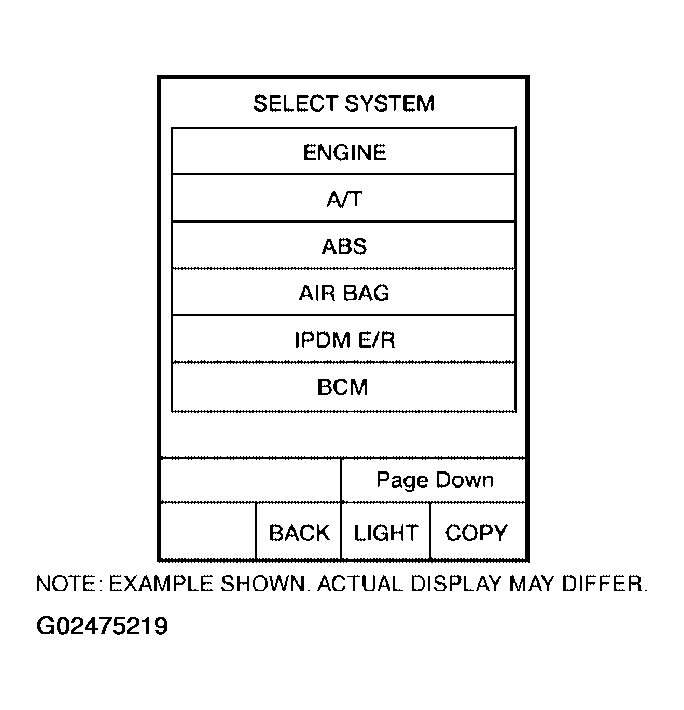

Fig 1: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.

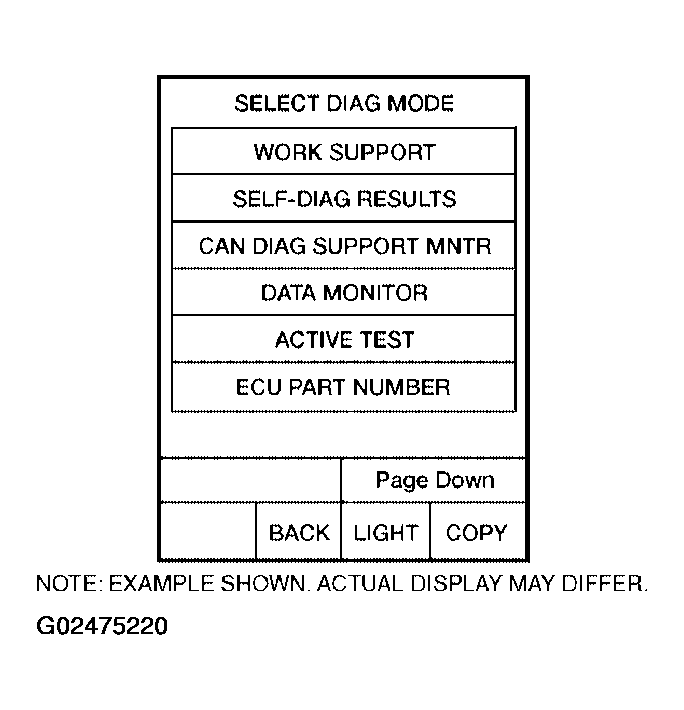

Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II and wait at least 1 second.

Fig 2: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following condition for at least 5 consecutive seconds.
VHCL SPEED SE: 80km/h (50 MPH) or more

THROTTLE POSI: 0.5/8 - 1.0/8

Selector lever: D position (O/D ON)

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
