With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

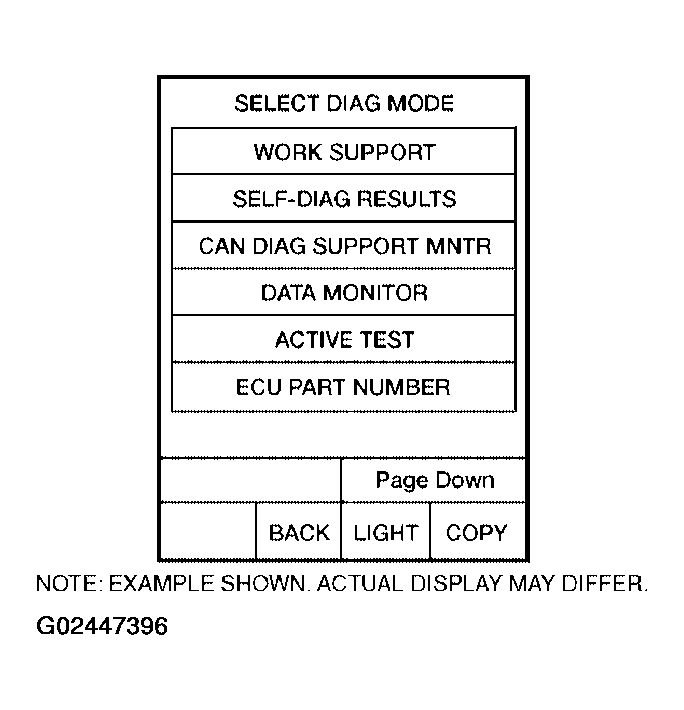

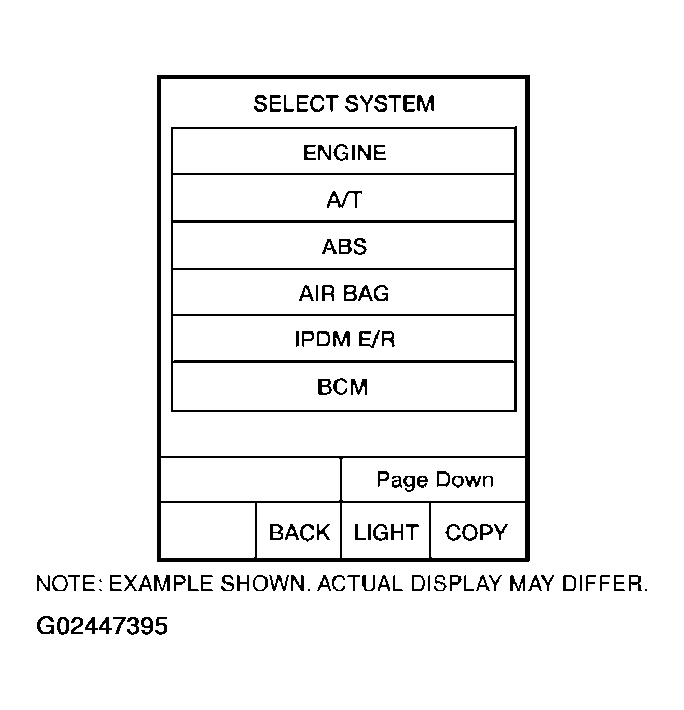

- Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

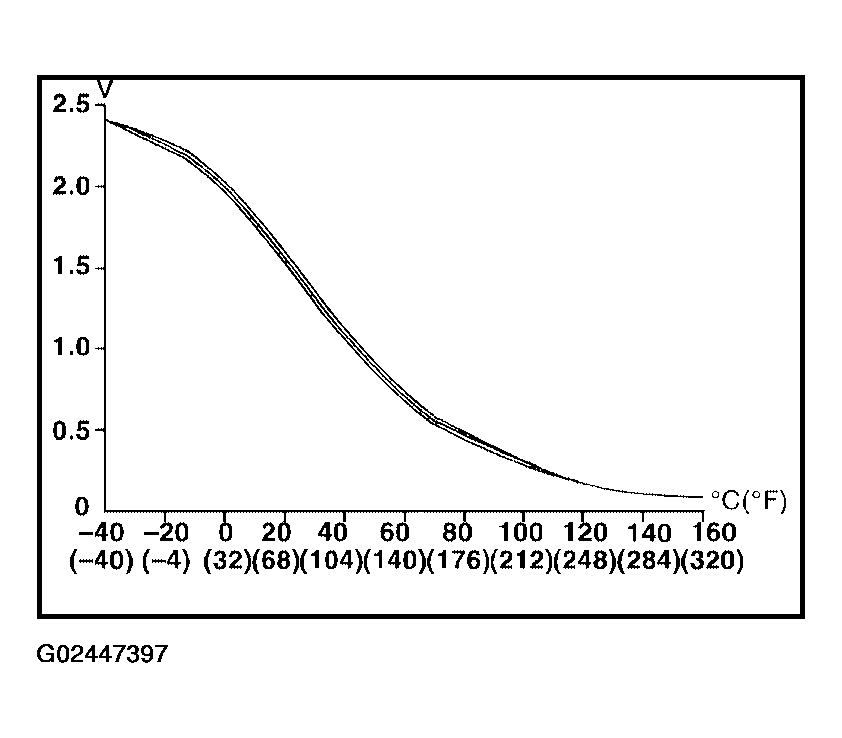

- Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.5 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).
- Select "4TH GR FNCTN P0734" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
- Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the following condition and release the accelerator pedal completely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4) Selector lever: D position
- Check that "GEAR" shows "3" after releasing pedal.
- Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of "THROTTLE POSI" from a speed of 55 to 65 km/h (34 to 40 MPH) until "TESTING" has turned to "STOP VEHICLE" or "COMPLETED". (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE ".
If "STOP VEHICLE" appears on CONSULT-II screen, go to following step.
- Check that "GEAR" shows "4" when depressing accelerator pedal with 1.0/8 - 2.0/8 of "THROTTLE POSI".
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS" for "ENGINE". In case a 1st trip DTC other than P0734 is shown, refer to applicable "Diagnostic Procedure" for indicated DTC.
- Stop vehicle.

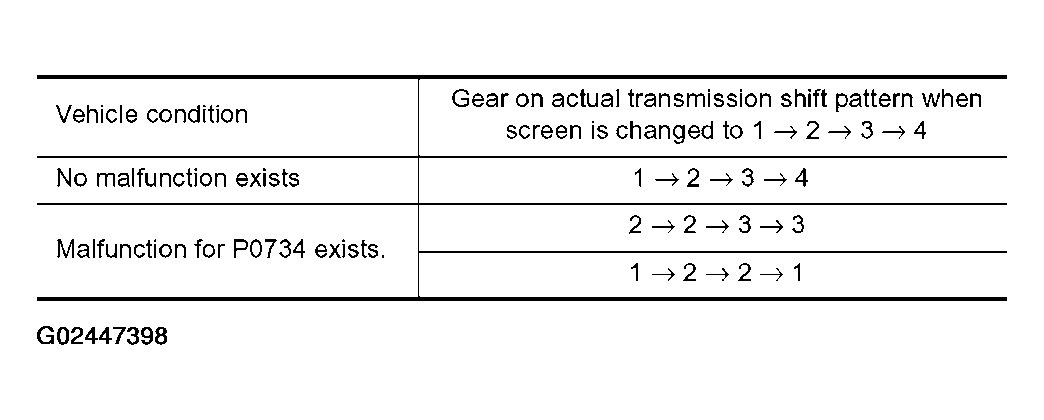

- Follow the instruction displayed. (Check for normal shifting referring to the table below.)
- Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".)
Refer to "DIAGNOSTIC PROCEDURE ".
Refer to "SHIFT SCHEDULE ".
WITH GST
Follow the procedure "With CONSULT-II".
