Wiring Diagram - AT - 1ST

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

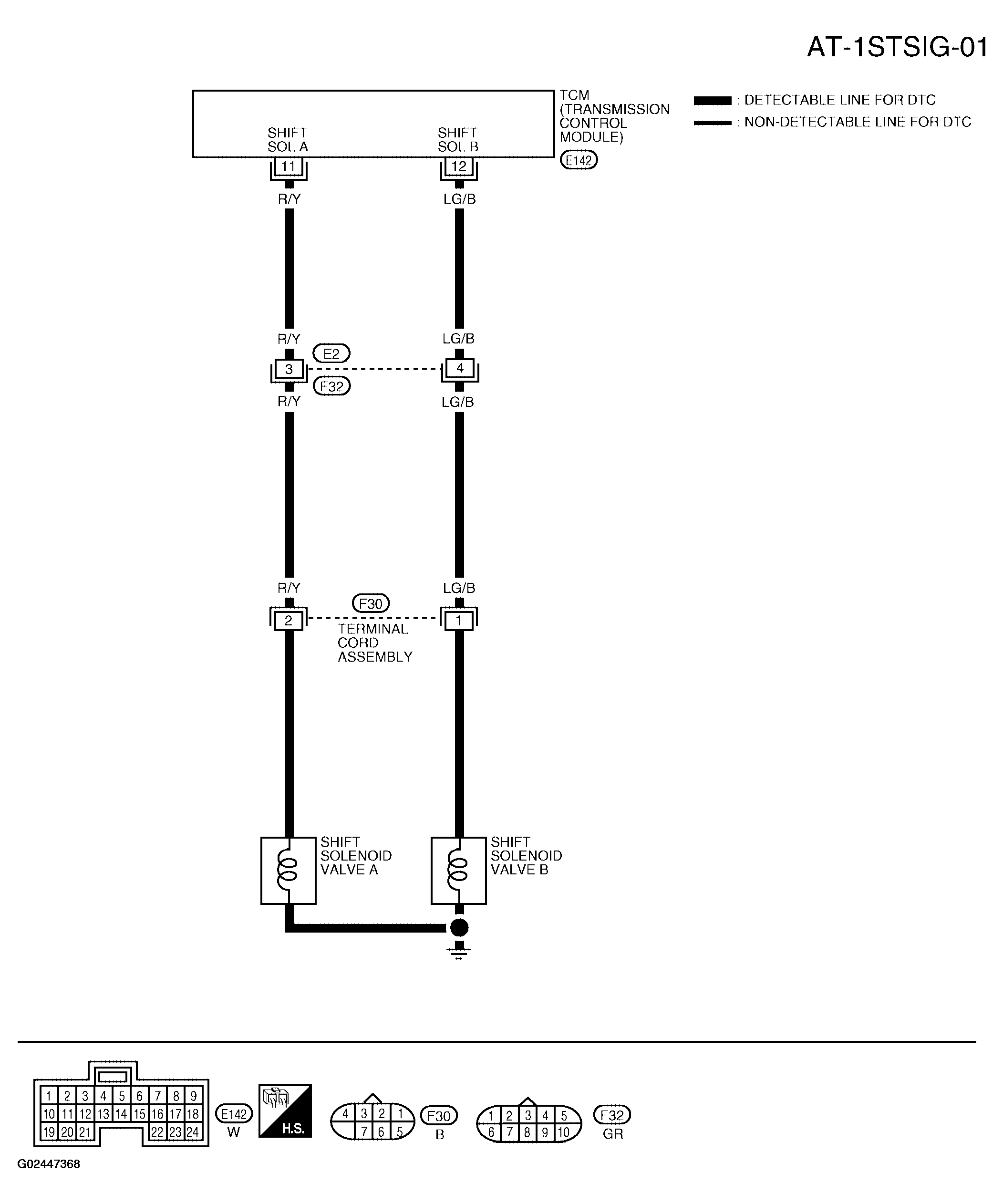

Fig 1: Wiring Diagram - AT-1STSIG-01

Courtesy of NISSAN MOTOR CO., U.S.A.

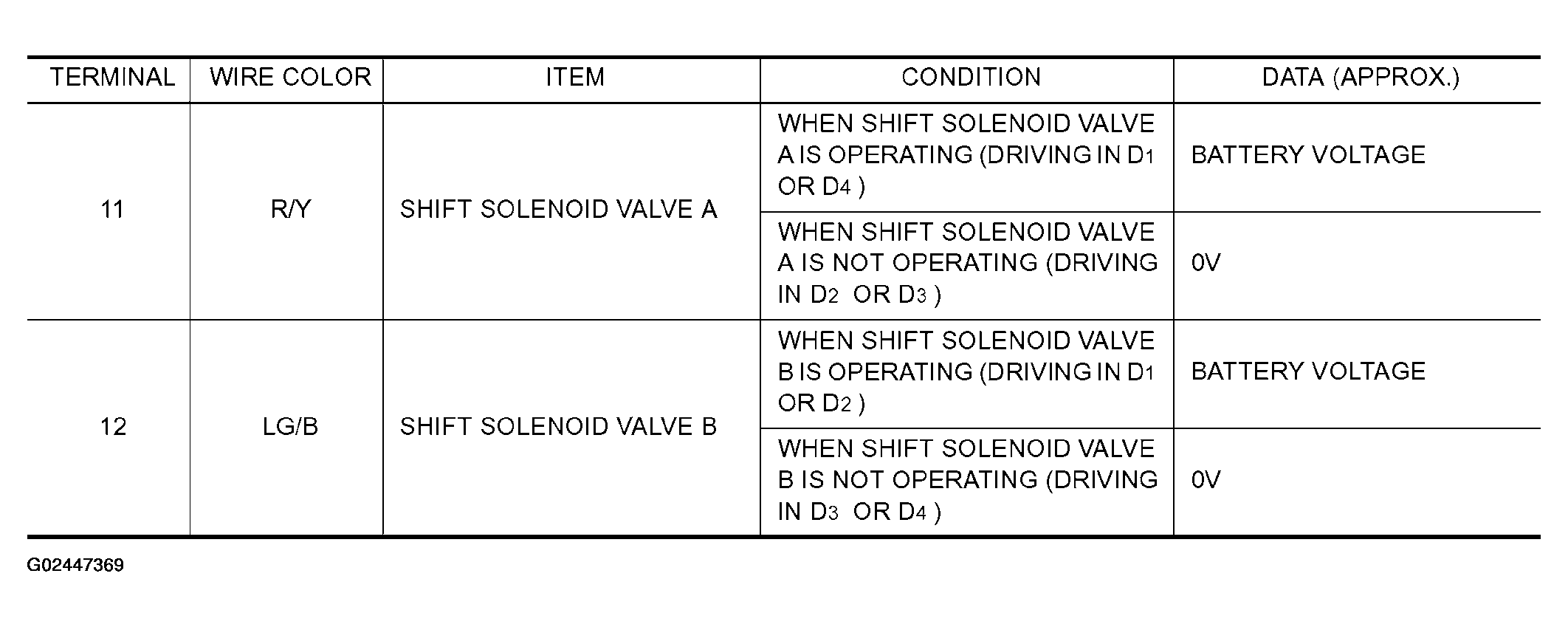

Fig 2: TCM Terminals & Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
