With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

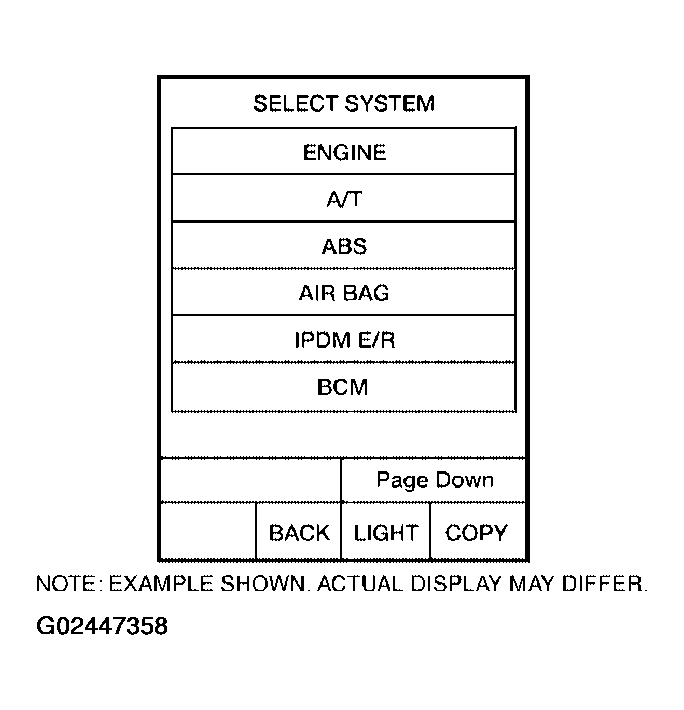

Fig 1: Consult-II - (SELECT SYSTEM) Display
Courtesy of NISSAN MOTOR CO., U.S.A.

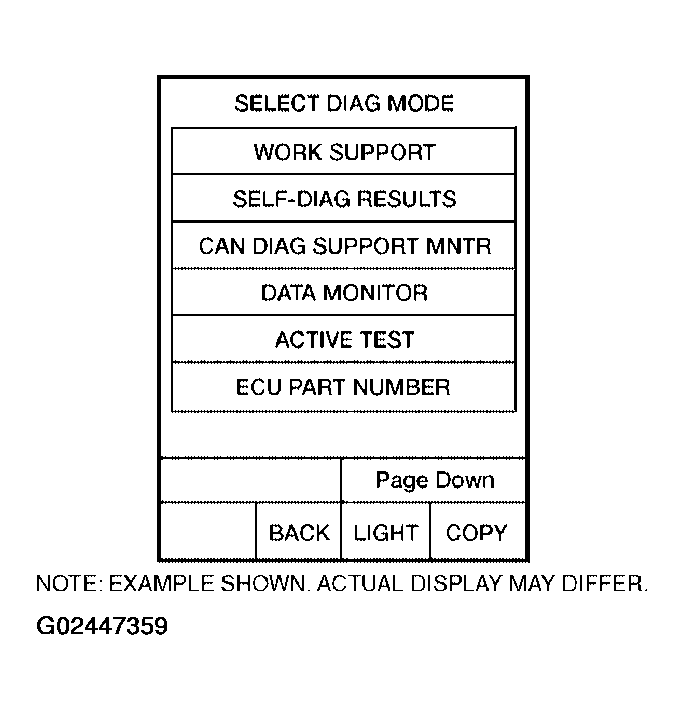

Fig 2: Consult-II - (SELF DIAG MODE) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position

WITH GST

Follow the procedure "With CONSULT-II".
