With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to ON position. (Do not start engine.)

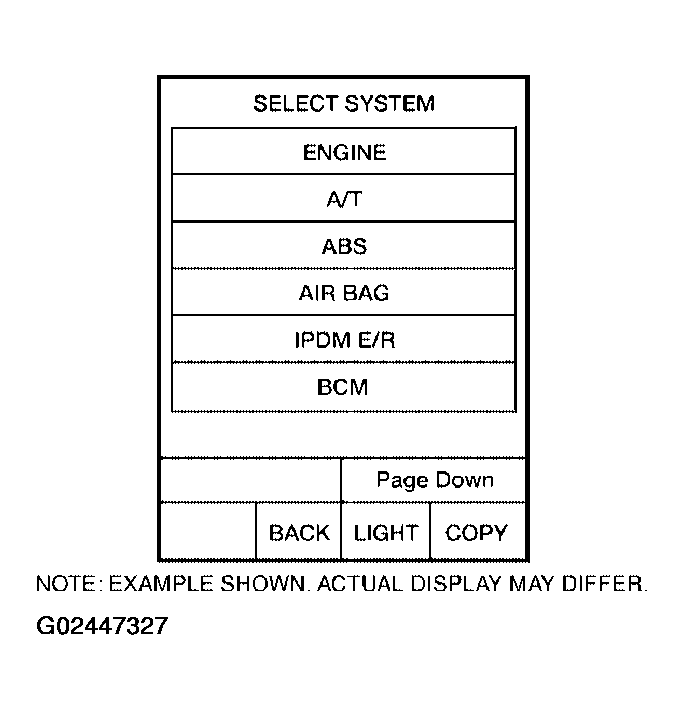

Fig 1: Consult-II - SELECT SYSTEM Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.3V

Selector lever: D position (OD "ON" or "OFF")

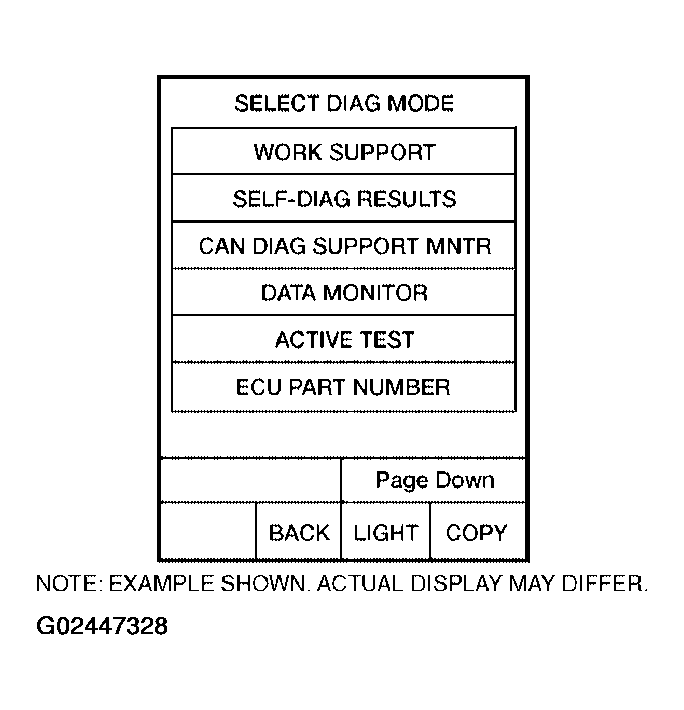

Fig 2: Consult-II - SELECT DIAG MODE Display
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "With CONSULT-II".
