Assembly (1)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install differential side oil seals on transaxle case and converter housing.

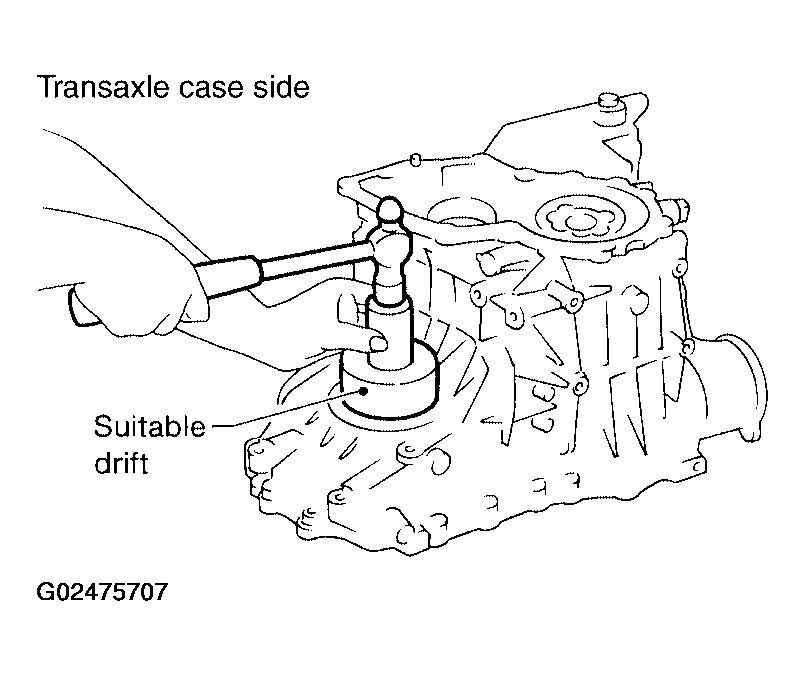

Fig 1: Installing Differential Side Oil Seals On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

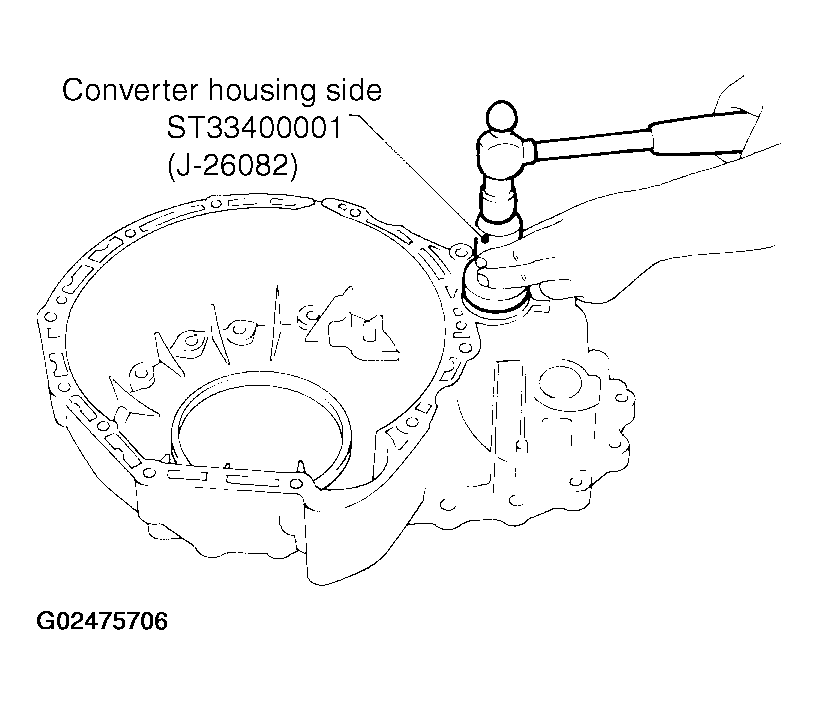

Fig 2: Installing Differential Side Oil Seals On Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transaxle case. Tighten parking actuator support bolts to the specified torque. Refer to "OVERHAUL ".
CAUTION: Pay attention to direction of parking actuator support.

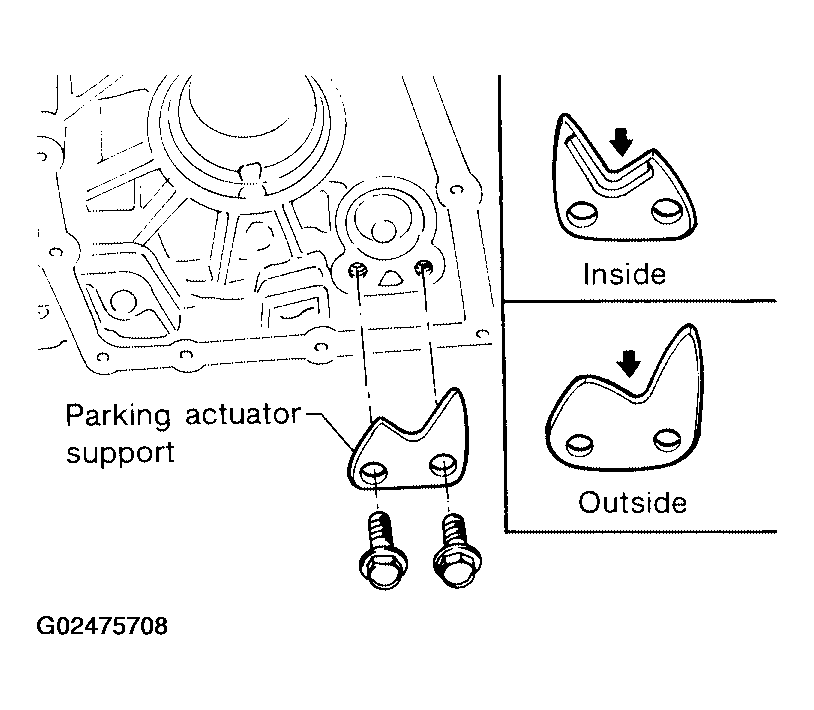

Fig 3: Installing Parking Actuator Support To Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transaxle case and fix it with parking shaft.

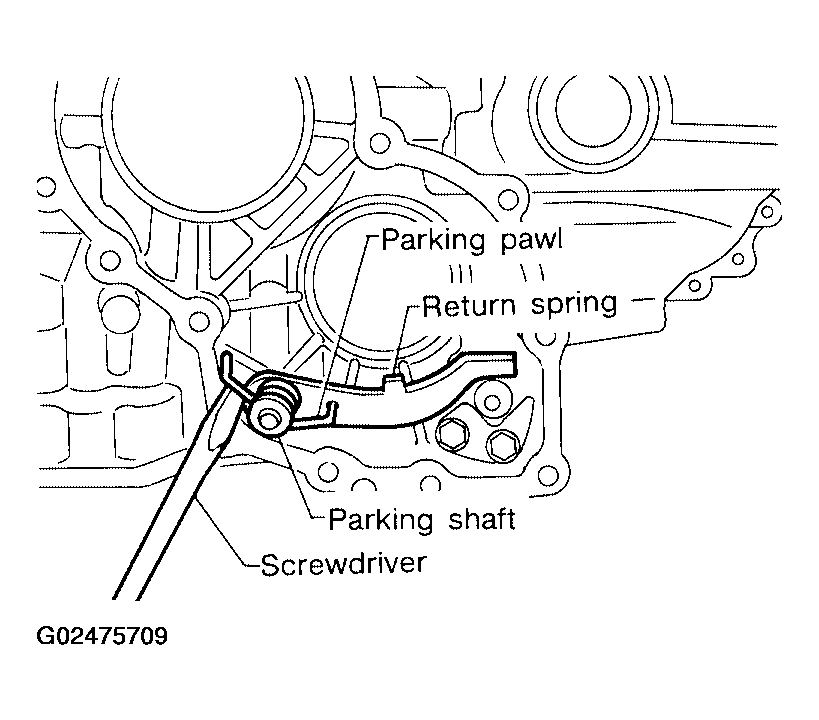

Fig 4: Installing Parking Pawl On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring.
